Informasi Detail |
|||
| Menyoroti: | PC100-6 Swing Motor,PC120-6 Swing Motor,PC150-6 |
||
|---|---|---|---|
Deskripsi Produk

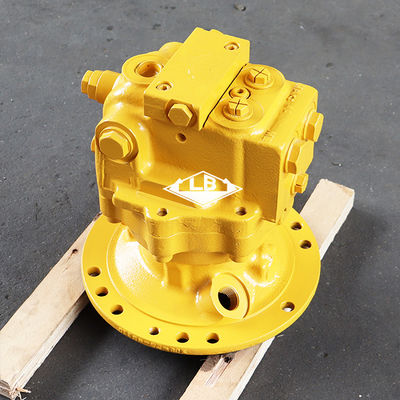

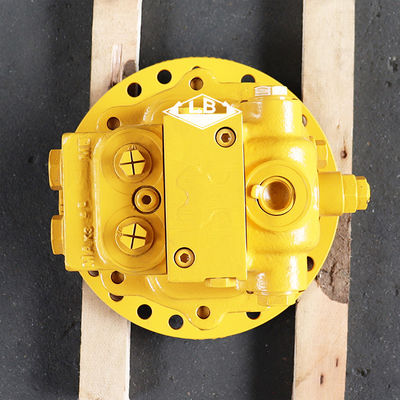

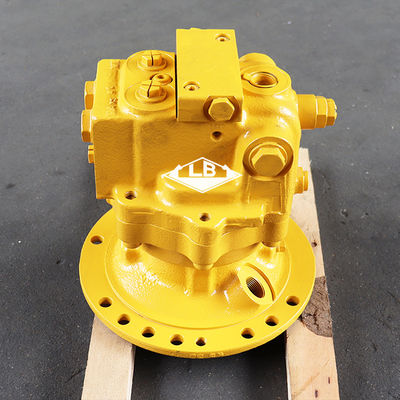

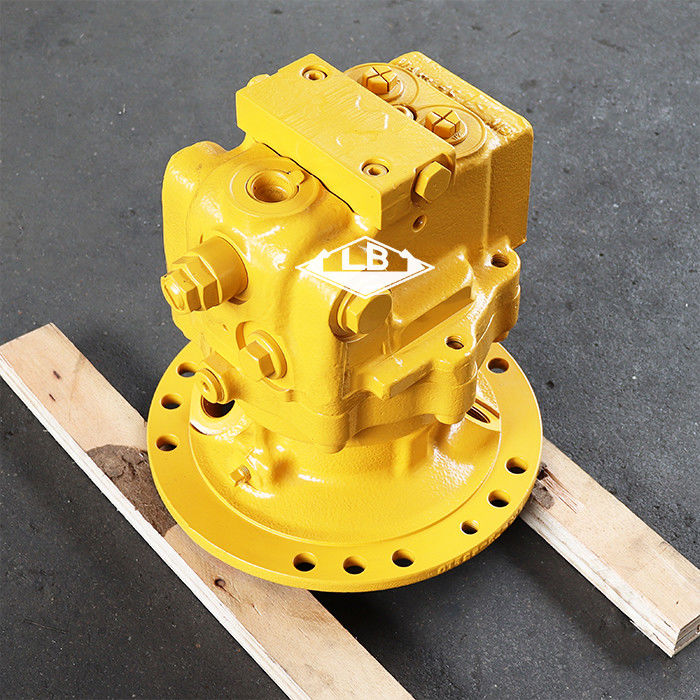

Bagian pengganti untuk PC100-6 PC120-6 PC130-7
Parameter produk
| Pnama seni | PC100-6 PC120-6 PC130-6 PC130-7 PC150-6 PW148 mesin ayunan | |||||
| Peralatan | Mendaftar ke Komatsu EXKAVATOR | |||||
| Bagian no. | 706-73-01181 | |||||
| gigi poros motor | ... | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | ... | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian pada kelompok:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 203-26-00150 | [1] | Mesin ayunan A.Komatsu | 70.9kg. |
| [SN: 72035-UP] analog: ["2032600120", "2032600121"] | ||||
| 1. | 203-26-00123 | [1] | Mesin ayunan A.Komatsu | 70.9kg. |
| [SN: 70001-72034"] analog: ["2032600150", "2032600120", "2032600121"] | ||||
| 2. | 706-73-01181 | [1] | Motor ASSYKomatsu | 33.601kg. |
| [SN: 70001-UP] analog: ["7067301180"] | ||||
| 3. | 201-26-62190 | [1] | RINGKomatsu Cina | |
| ["SN: 70001-UP"] | ||||
| 4. | 07042-30108 | [1] | PLUGKomatsu | 0.008kg. |
| [SN: 70001-UP"] analog: ["0704220108"] | ||||
| 5. | 01011-81230 | [13] | BOLTKomatsu | 0.125kg. |
| [SN: 70001-UP"] analog: ["801015586"] | ||||
| 6. | 01643-31232 | [13] | PEMANASKomatsu | 0.027kg. |
| [SN: 70001-UP"] analog: ["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 7. | 07049-01215 | [2] | PLUGKomatsu | 0.001kg. |
| ["SN: 70001-UP"] | ||||
| 8. | 203-26-61480 | [1] | PengukuranKomatsu Cina | |
| ["SN: 70001-UP"] | ||||
| 9. | 203-26-61470 | [1] | PengisiKomatsu Cina | |
| ["SN: 70001-UP"] | ||||
| 10. | 01010-81655 | [14] | BOLTKomatsu | 0.119kg. |
| [SN: 70001-UP"] analog: ["0101061655", "801015613", "0101031655", "0101051655"] | ||||
| 11. | 01643-31645 | [14] | PEMANASKomatsu | 0.072kg. |
| [SN: 70001-UP"] analog: ["802170005", "0164301645"] | ||||
| 12. | 04020-01638 | [2] | PINKomatsu | 0.064kg. |
| ["SN: 70001-UP"] | ||||
| 13. | 07049-02025 | [1] | PLUGKomatsu | 0.002kg. |
| ["SN: 70001-UP"] | ||||
