Informasi Detail |
|||
| Menyoroti: | E345C gear drive akhir,E345D E349 penggerak terakhir gigi,227-6044 |
||
|---|---|---|---|
Deskripsi Produk

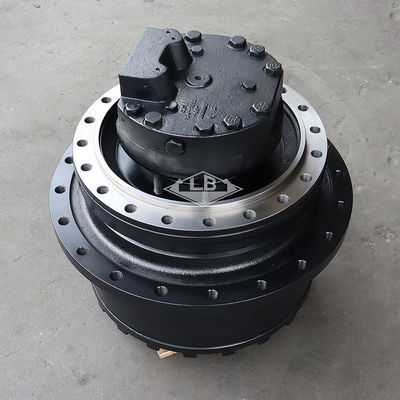

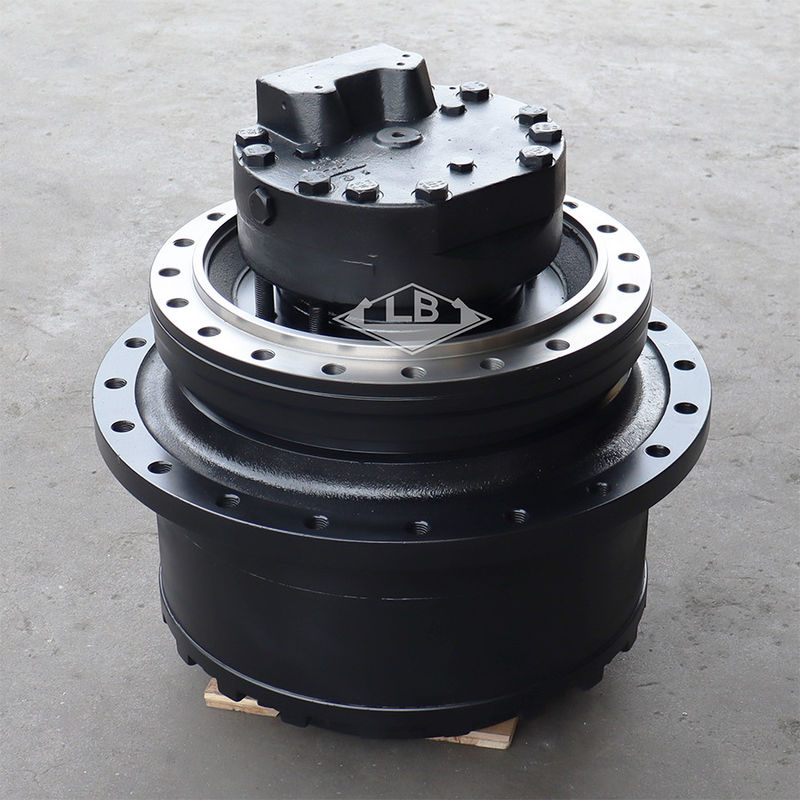

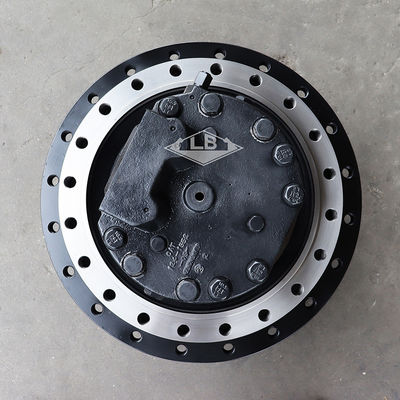

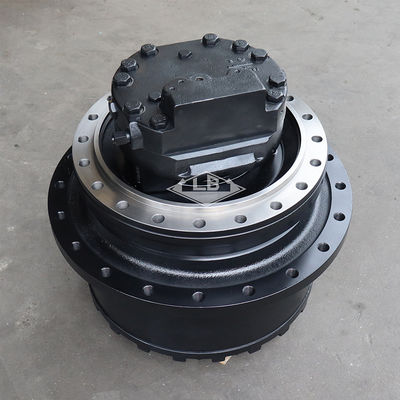

E E345C E345D E349 Final drive 227-6044 333-3036
Parameter produk
| Pnama seni | E345C E345D E349D Drive akhir | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 227-6044 227-6045 | |||||
| Lubang rangka | 20 | |||||
| Lubang roda gigi | 20 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 710 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian untuk Excavator 345C Anda:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 2R-0524 | [2] | Pengangkut kerucut | |
| 2. | 2R-0525 | [2] | TANGGUNG CUP-BEARING | |
| 3. | 4I-7576 | [14] | PEMANAS(66.3X104X3-MM THK) | |
| 4. | 7M-8485 | [2] | SEAL-O-RING | |
| 5. | 7Y-0661 | [3] | SHAFT-PLANETARY | |
| 6. | 7Y-0662 | [4] | SHAFT-PLANETARY | |
| 7. | 199-4583 | [11] | AS BEARING | |
| 8. | 7Y-0808B | [1] | SHIM(1.6-MM THK) | |
| 9. | 7Y-1469 | [1] | Pergaulan | |
| 10. | 7Y-1470 | [1] | Gear-SUN(21-TEETH) | |
| 11. | 7Y-1472B | [1] | SHIM(0,15-MM THK) | |
| 12. | 7Y-1473B | [1] | SHIM(0.3-MM THK) | |
| 13. | 7Y-1474B | [1] | SHIM(0.4-MM THK) | |
| 14. | 7Y-1475B | [1] | SHIM(0.5-MM THK) | |
| 15. | 7Y-1476B | [1] | SHIM(0.6-MM THK) | |
| 16. | 7Y-1477B | [1] | SHIM(0.7-MM THK) | |
| 17. | 7Y-1478B | [1] | SHIM(0.8-MM THK) | |
| 18. | 7Y-1479B | [1] | SHIM(1-MM THK) | |
| 19. | 7Y-1480B | [1] | SHIM(1.6-MM THK) | |
| 20. | 7Y-1482 | [1] | Pembawa-Planetary | |
| 21. | 7Y-1483 | [1] | GANG-RING(63-TEETH) | |
| 22. | 7Y-1485 | [1] | Pembawa-Planetary | |
| 23. | 7Y-1487 | [1] | GANG-RING(85-TIH) | |
| 24. | 7Y-1488 | [1] | CARRIER AS | |
| 7Y-0656 | [3] | SHAFT-PLANETARY | ||
| 25. | 7Y-1491 | [1] | Gear-SUN(21-TEETH) | |
| 26. | 7Y-1493 | [1] | SPACER(8,7X50X14-MM THK) | |
| 27. | 7Y-1495 | [3] | Gear-planetary(29-TEETH) | |
| 28. | 7Y-1498 | [1] | PELUAR | |
| 29. | 7Y-1499 | [3] | Gear-planetary(20-TIH) | |
| 30. | 7Y-1504 | [4] | Gear-planetary(20-TIH) | |
| 31. | 7Y-5235M | [20] | BOLT(M24X3X190-MM) | |
| 32. | 110-7217 | [2] | Pengendalian cincin | |
| 33. | 114-1541 | [6] | PIN-DOWEL | |
| 34. | 169-5559 | [1] | Gear-SUN(26-TEETH) | |
| 35. | 199-4719 | [1] | GANG-CUPLING | |
| 36. | 200-3489 | [1] | Rumah-Motor | |
| 37. | 200-3490 | [1] | Peralatan rumah tangga | |
| 38. | 205-9025 | [1] | SEAL GP-DUO-CONE | |
| 205-9024 | [2] | RING-TORIC | ||
| 39. | 227-6048 | [12] | PEMANAS(26X40X4-MM THK) | |
| 40. | 094-0584 | [6] | PEMANAS(40.3X72X1-MM THK) | |
| 41. | 199-4582 | [3] | AS BEARING | |
| 42. | 095-0891 | [1] | Pin-SPRING | |
| 43. | 096-3216M | [2] | SETSCREW-SOCKET(M12X1.75X12-MM) | |
| 44. | 3E-2338 | [2] | pipa colokan(Final Drive, Oil Drain, isi) | |
| 45. | 6V-8133M | [12] | BOLT(M24X3X80-MM) | |
| 46. | 7Y-1484 | [1] | SPACER(191X221X8.5-MM THK) | |
| 47. | 7Y-1492 | [2] | SPACER(67X101.1X10-MM THK) | |
| 48. | 8C-5240 | [1] | SEAL-O-RING | |
| 49. | 8T-3957M | [10] | Kepala Bolt-Socket(M12X1.75X30-MM) | |
| 50. | 8T-4167 | [20] | Hard untuk mencuci(26X44X4-MM THK) | |
| 51. | 8T-4240 | [3] | Pengendalian cincin | |
| 52. | 1U-8846B | SEALANT-GASKET | ||
| B | Gunakan sesuai kebutuhan | |||
| M | Bagian Metrik | |||
