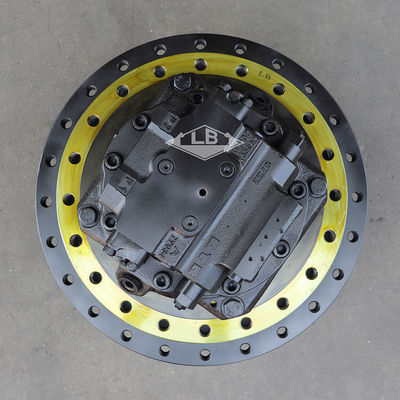

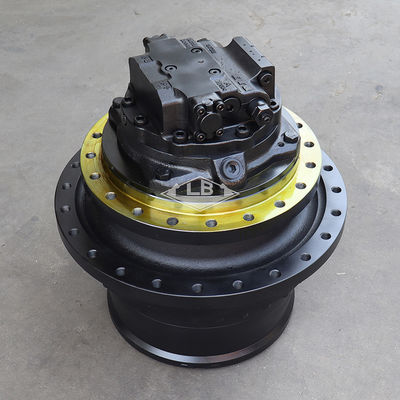

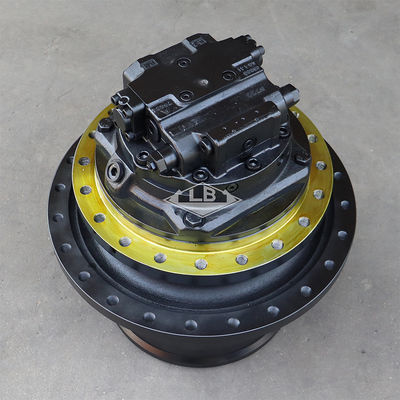

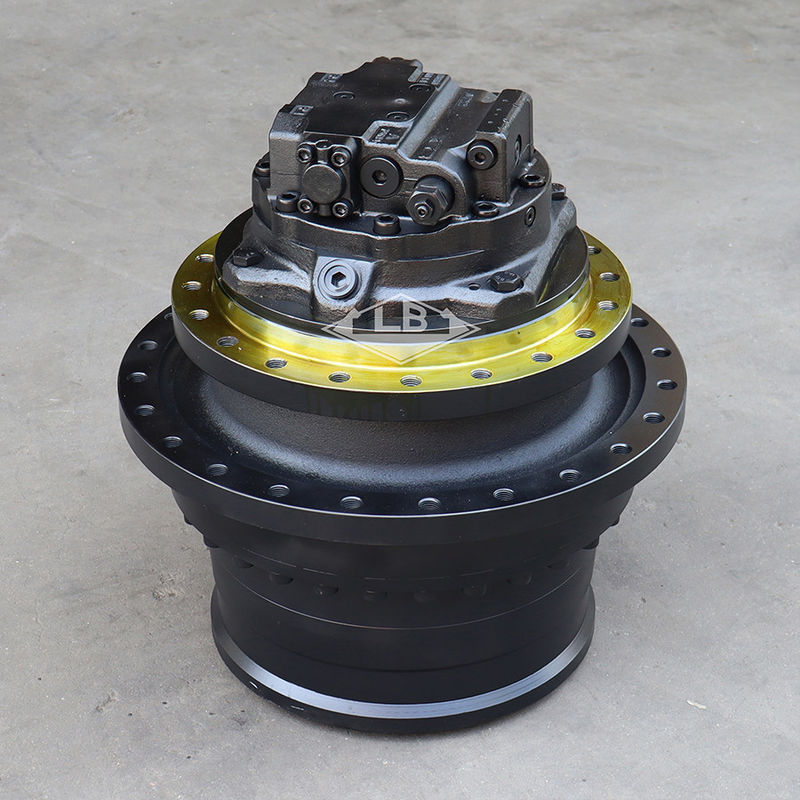

ZX450-3 ZX470-3 Perangkat Perjalanan 9251680 9263595 9186918 9203565 ZX450
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | ZX450-3 Final Drive,ZX470-3 Drive akhir,9251680 |
||
|---|---|---|---|
Deskripsi Produk
ZX450-3 ZX470-3 Perangkat Perjalanan 9251680 9263595 9186918 9203565 ZX450 Drive akhir
Parameter produk
| Pnama seni | ZX450 ZX470 Final drive | |||||
| Peralatan | Mendaftar untuk HITACHI EXKAVATOR | |||||
| Bagian no. | 9251680 9263595 9186918 9203565 | |||||
| Lubang rangka | 20 | |||||
| Lubang roda gigi | 24 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 460KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian pada kelompok TRAVEL DEVICE (STD. TRACK, LC TRACK):
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 00-57. | 9186918 | [2] | Perangkat Perjalanan | Aku 9203565 |
| (untuk perakitan mesin) | ||||
| 00-57. | 9203565 | [2] | Perangkat Perjalanan | |
| (untuk transportasi) | ||||
| 00. | 4431549 | [1] | MOTOR OIL | Aku 4481832 |
| 00. | 4481832 | [1] | MOTOR OIL | Aku 4637796 |
| 00. | 4637796 | [1] | MOTOR OIL | |
| 02. | 1027942 | [1] | Perumahan | |
| 03. | 4344155 | [1] | SEAL; GROUP | |
| 05. | 1015882 | [1] | Drum | |
| 06. | 1010956 | [1] | SPROCKET | |
| 07. | 4200411 | [2] | BRG.; ROL. | |
| 08. | J932270 | [24] | BOLT | |
| 09. | A590922 | [24] | PEMANAS;SEMBAH | |
| 10. | 3043140 | [1] | NUT | |
| 11. | 3043141 | [1] | PLATE;LOCK | |
| 12. | J901222 | [2] | BOLT | |
| 13. | 1015883 | [1] | Pengangkut | |
| 14. | 3053195 | [4] | Gear;Planetary | |
| 15. | 4452484 | [8] | BRG.; jarum | |
| 16. | 4219595 | [8] | PLATE;THRUST | |
| 17. | 4263903 | [4] | PIN | |
| 18. | 4207947 | [4] | PIN;SPRING | |
| 19. | 3053786 | [1] | Gear;SUN | |
| 22. | 4203187 | [1] | O-RING | |
| 23. | 1018360 | [1] | Gear;RING | |
| 24. | J931845 | [30] | BOLT | |
| 27. | 1015523 | [1] | Pengangkut | |
| 28. | 4263905 | [2] | SPACER | |
| 29. | 3053194 | [3] | Gear;Planetary | |
| 30. | 4452483 | [3] | BRG.; jarum | |
| 31. | 4201968 | [6] | PLATE;THRUST | |
| 32. | 4263902 | [3] | PIN | |
| 33. | 4203180 | [3] | PIN;SPRING | |
| 34. | 3053785 | [1] | Gear;SUN | |
| 35. | 1015505 | [1] | Pengangkut | |
| 37. | 3053098 | [3] | Gear;Planetary | |
| 38. | 4452480 | [3] | BRG.; jarum | |
| 39. | 4269295 | [6] | PLATE;THRUST | |
| 40. | 4263901 | [3] | PIN | |
| 41. | 4222030 | [3] | PIN;SPRING | |
| 42. | 2044685 | [1] | SHAFT;PROP. | |
| 43. | A590918 | [4] | PEMANAS;SEMBAH | |
| 44. | 4279343 | [3] | PLUG | |
| 46. | 4288767 | [1] | PIN;STOPPER | |
| 49. | J911860 | [4] | BOLT | |
| 50. | 4274541 | [1] | BRG.; bola | |
| 51. | 991725 | [1] | RING;RETENING | |
| 52. | 3053559 | [1] | NAME-PLATE | |
| 53. | M492564 | [2] | Screw; Drive | |
| 55. | 4271596 | [1] | O-RING | |
| 56. | 1023348 | [1] | PELUAR | |
| 57. | 4373463 | [16] | BOLT;SHOE | |
| 101. | J932200 | [40] | BOLT | |
| 102. | 4089822 | [40] | PEMANAS |
