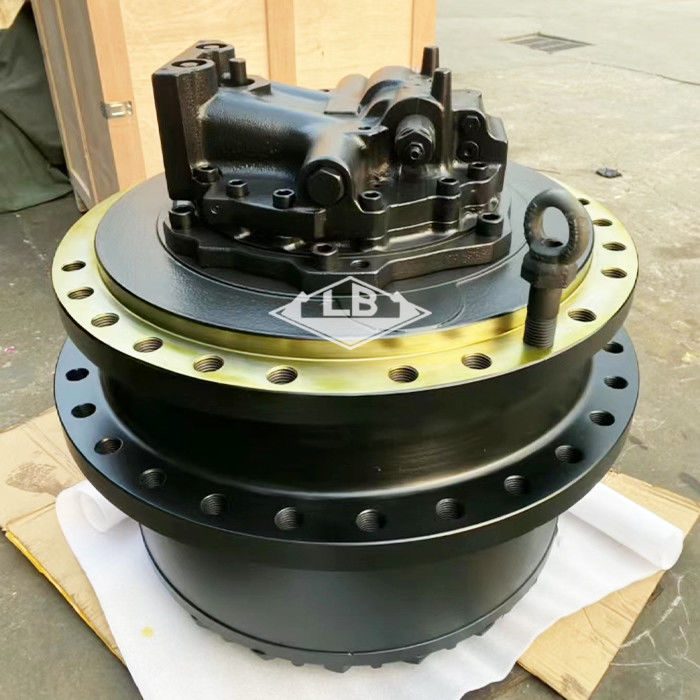

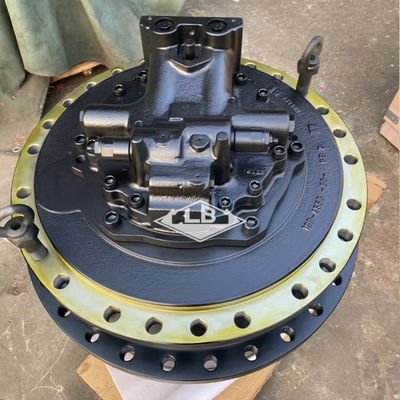

E390F E390 Travel Motor Assy 455-2770 455-2771 455-2772 455-2775 353-0590 155-9198 E390
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | E390F motor perjalanan assy,E390 Assy motor perjalanan,455-2770 |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | E390 Drive akhir | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 455-2770 455-2771 455-2772 455-2775 353-0590 155-9198 | |||||
| Lubang rangka | ... | |||||
| Lubang roda gigi | ... | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | ... | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian untuk Excavator 390D L Anda:
EERPILLAR SIS
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 6I-6373 | [1] | SHIM(1.2-MM THK) | |
| 2. | 6I-6375 | [1] | SHIM(1.4-MM THK) | |
| 3. | 7Y-0807 | [1] | SHIM(1.6-MM THK) | |
| 4. | 7Y-0808B | [1] | SHIM(1.6-MM THK) | |
| 5. | 7Y-1090 | [1] | GANG-RING(66-TEETH) | |
| 6. | 7Y-1493 | [1] | SPACER(8,7X50X14-MM THK) | |
| 7. | 148-4575 | [3] | Gear-planetary(31-TEETH) | |
| 8. | 148-4579 | [1] | Gear-SUN(22-TEETH) | |
| 9. | 148-4580 | [1] | GANG-RING(101-TEETH) | |
| 10. | 148-4582 | [1] | Perumahan | |
| 11. | 148-4585 | [1] | GANG-CUPLING(95-TEETH) | |
| 12. | 148-4616 | [1] | Gear-SUN(37-TEETH) | |
| 13. | 148-4617 | [1] | Pengendalian cincin | |
| 14. | 188-2103 | [1] | SEAL GP | |
| 15. | 191-2508 | [1] | SPACER(231X261X10-MM THK) | |
| 16. | 199-4533 | [4] | Gear-planetary(21-TEETH) | |
| 17. | 199-4545 | [1] | Gear-SUN(21-TEETH) | |
| 18. | 199-4546 | [3] | Gear-planetary(22-TEETH) | |
| 19. | 199-4609 | [8] | AS BEARING | |
| 20. | [14] | PEMANAS(79.3X134X3-MM THK) | ||
| 21. | 199-4650 | [1] | Pembawa-Planetary | |
| 22. | 199-4663 | [1] | Rumah atap | |
| 23. | 199-4665 | [1] | Pembawa-Planetary | |
| 24. | 199-4666 | [1] | Pembawa-Planetary | |
| 25. | 199-4669 | [3] | AS BEARING | |
| 26. | 199-4670 | [3] | AS BEARING | |
| 27. | 199-4671 | [6] | PEMANAS(49.3X84X1-MM THK) | |
| 28. | 199-4688 | [3] | SHAFT-PLANETARY | |
| 29. | 199-4689 | [3] | SHAFT-PLANETARY | |
| 30. | 199-4690 | [4] | SHAFT-PLANETARY | |
| 31. | 227-6177 | [1] | SHIM(0.3-MM THK) | |
| 32. | 227-6178 | [1] | SHIM(0.6-MM THK) | |
| 33. | 227-6179 | [1] | SHIM(0.7-MM THK) | |
| 34. | 227-6180 | [1] | SHIM(0.8-MM THK) | |
| 35. | 487-5911 | [1] | Rumah-Motor | |
| 36. | 451-2178 | [20] | Hard untuk mencuci(33X56X6-MM THK) | |
| 37. | 453-4193M | [20] | BOLT(M30X3.5X260-MM) | |
| 38. | 095-0891 | [3] | Pin-SPRING | |
| 39. | 096-3216M | [2] | SETSCREW-SOCKET(M12X1.75X12-MM) | |
| 40. | 099-5194 | [1] | Pin-SPRING | |
| 41. | 114-1541 | [6] | PIN-DOWEL | |
| 42. | 163-6082 | [1] | KON | |
| 43. | 163-6083 | [1] | CUP | |
| 44. | 171-8706 | [1] | KON | |
| 45. | 171-8707 | [1] | CUP | |
| 46. | 3E-2338 | [2] | pipa colokan | |
| 47. | 5P-4981 | [1] | Pengendalian cincin | |
| 48. | 7M-8485 | [2] | SEAL-O-RING | |
| 49. | 7Y-0640 | [1] | SEAL-O-RING | |
| 50. | 7Y-0795 | [1] | SPACER(115X145.1X25.5-MM THK) | |
| 51. | 7Y-1492 | [1] | SPACER(67X101.1X10-MM THK) | |
| 52. | 7Y-5215M | [22] | Kepala Bolt-Socket(M24X3X90-MM) | |
| 53. | 8T-0273M | [16] | Kepala Bolt-Socket(M12X1.75X40-MM) | |
