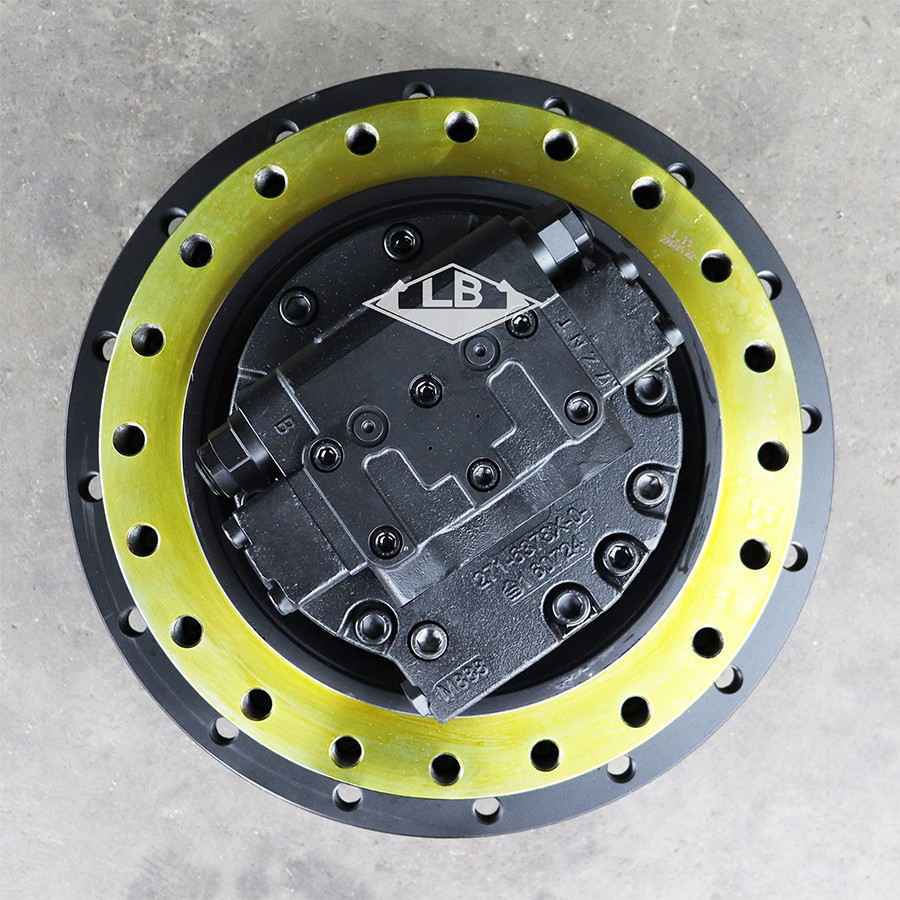

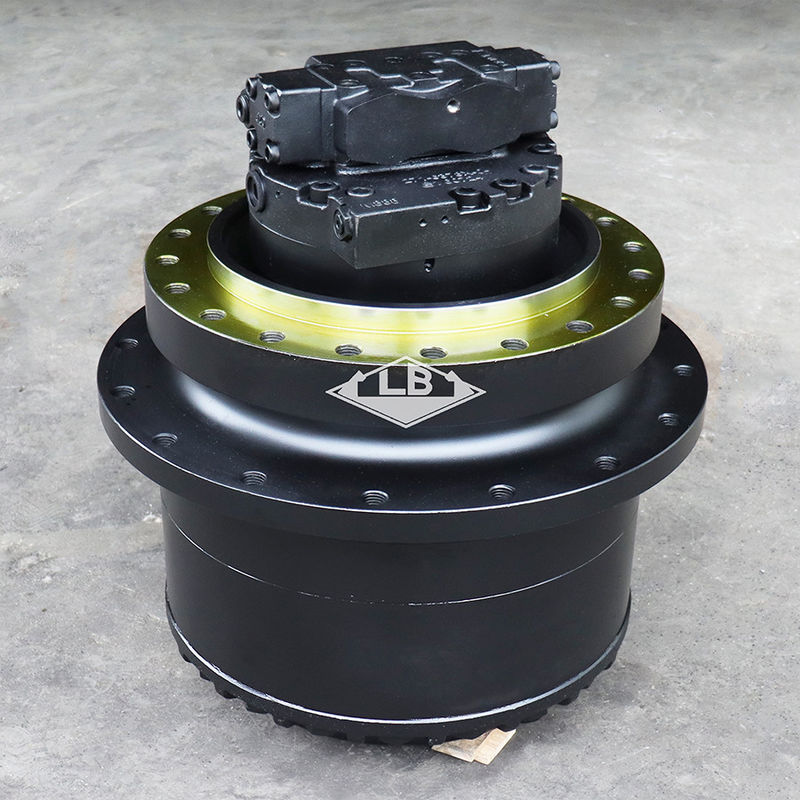

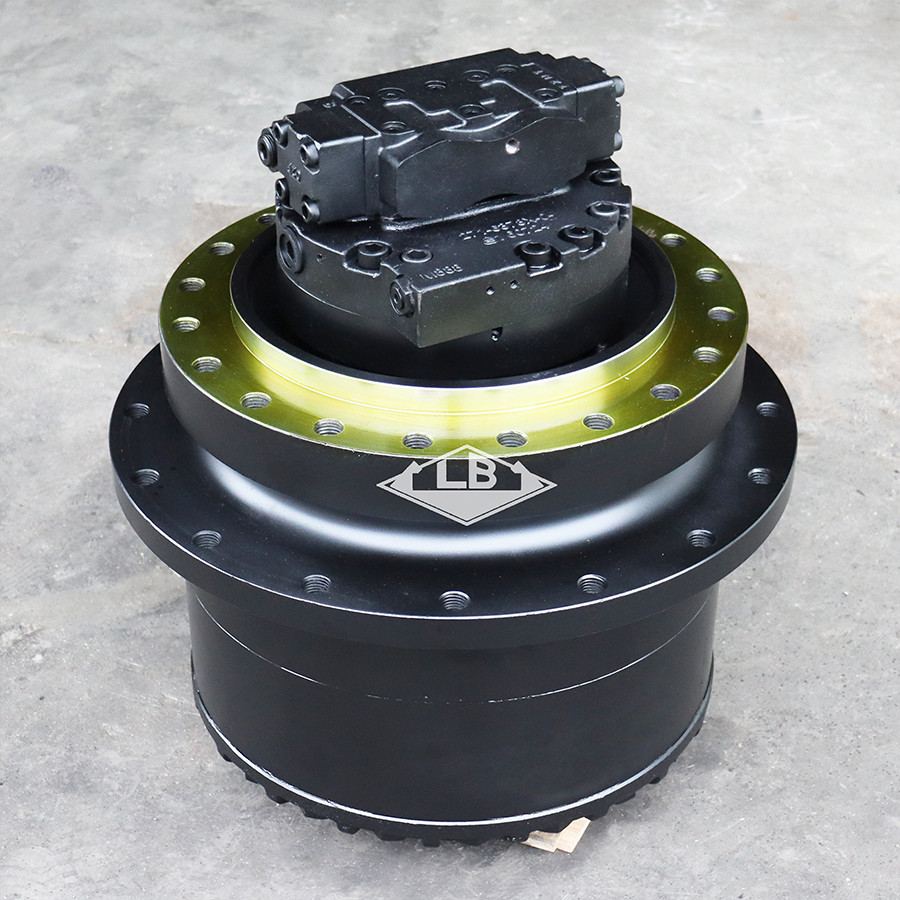

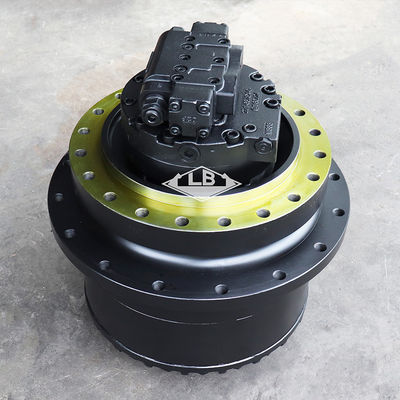

E 330C 330D E330 Final Drive 296-6217 227-6188 227-6195 199-4578 353-0601 296-6218 227-6289 227-6196
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | 330D Final Drive 20 lubang,E330 Drive akhir,296-6217 |
||
|---|---|---|---|
Deskripsi Produk
E 330C 330D E330 Final drive 296-6217 227-6188 227-6195 199-4578 353-0601 296-6218 227-6289 227-6196
Parameter produk
| Pnama seni | E330 Drive akhir | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 353-0601 296-6218 227-6289 | |||||
| Lubang rangka | 20 | |||||
| Lubang roda gigi | 24 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 460KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian untuk Excavator 330D L Anda:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 3E-2338 | [2] | pipa colokan | |
| 2. | 7Y-0639 | [1] | Gear-SUN(21-TEETH) | |
| 3. | 7Y-0642 | [1] | GANG-RING(63-TEETH) | |
| 4. | 7Y-0643 | [1] | Pengangkut | |
| 5. | 7Y-0645 | [1] | Pengangkut | |
| 6. | 7Y-0659 | [3] | Gear-planetary(22-TEETH) | |
| 7. | 7Y-0661 | [3] | SHAFT-PLANETARY | |
| 8. | 7Y-0662 | [4] | SHAFT-PLANETARY | |
| 9. | 7Y-0663 | [4] | Gear-planetary(20-TIH) | |
| 10. | 7Y-0667 | [1] | Pengendalian cincin | |
| 11. | 7Y-0673 | [1] | GANG-RING(73-TEETH) | |
| 12. | 7Y-0676 | [3] | Gear-planetary(24-TEETH) | |
| 13. | 7Y-0731 | [1] | CARRIER AS | |
| 13A. | 7Y-0656 | [3] | SHAFT-PLANETARY | |
| 14. | 7Y-1056BJ | [1] | SHIM(0.8-MM THK) | |
| 7Y-1057BJ | [1] | SHIM(1-MM THK) | ||
| 267-6809BJ | [1] | SHIM(0.75-MM THK) | ||
| 267-6810BJ | [1] | SHIM(0.85-MM THK) | ||
| 267-6811BJ | [1] | SHIM(0.9-MM THK) | ||
| 267-6812BJ | [1] | SHIM(0.95-MM THK) | ||
| 267-6813BJ | [1] | SHIM(1.2-MM THK) | ||
| 267-6814BJ | [1] | SHIM(1.4-MM THK) | ||
| 267-6815BJ | [1] | SHIM(1.8-MM THK) | ||
| 267-6816BJ | [1] | SHIM(2-MM THK) | ||
| 267-6817BJ | [1] | SHIM(2.3-MM THK) | ||
| 16. | 7Y-1094M | [14] | PEMANAS(66X102X1-MM THK) | |
| 17. | 7Y-5235M | [20] | BOLT(M24X3X190-MM) | |
| 18. | 094-0577 | [1] | PELAT(7-MM THK) | |
| 19. | 094-0578 | [1] | PELAT(8-MM THK) | |
| 20. | 094-0579 | [1] | PELAT(9-MM THK) | |
| 21. | 094-0580 | [1] | PELAT(10-MM THK) | |
| 22. | 110-7231 | [1] | Gear-SUN(18-TIH) | |
| 23. | 114-1541J | [6] | PIN-DOWEL | |
| 24. | 191-2521 | [1] | Gear-SUN(23-TEETH) | |
| 25. | 191-2526 | [1] | PELUAR | |
| 26. | 199-4582 | [3] | AS BEARING | |
| 27. | 199-4583 | [11] | AS BEARING | |
| 28. | 227-6190J | [1] | Rumah-Motor | |
| 29. | 227-6191J | [1] | Perumahan(SPROCKET) | |
| 30. | 227-6192J | [1] | GANG-CUPLING(66-TEETH) | |
| 31. | 255-2272CJ | [1] | SEAL GP-DUO-CONE | |
| 205-9114 | [2] | RING-TORIC | ||
| 41. | 279-0344J | [2] | PEMANGAT AS-TAPERED ROLLER | |
| 42. | 093-1731 | [1] | Pengendalian cincin | |
| 43. | 094-0584 | [6] | PEMANAS(40.3X72X1-MM THK) | |
| 44. | 095-0891 | [1] | Pin-SPRING | |
| 45. | 096-3216M | [2] | SETSCREW-SOCKET(M12X1.75X12-MM) | |
| 46. | 191-2645 | [1] | Pergaulan | |
| 47. | 2P-3628 | [1] | SEAL-O-RING | |
| 48. | 6V-8133JM | [10] | BOLT(M24X3X80-MM) | |
| 49. | 6V-8237J | [10] | PEMANAS(26X44X4-MM THK) | |
| 50. | 7M-8485 | [2] | SEAL-O-RING | |
| 51. | 7Y-0595 | [2] | SPACER(58X79.6X6-MM THK) | |
| 52. | 7Y-0644 | [1] | SPACER(163X190X8-MM THK) | |
| 53. | 8T-4167 | [20] | Hard untuk mencuci(26X44X4-MM THK) | |
| 54. | 8T-4240 | [3] | Pengendalian cincin | |
| 55. | 9X-6032M | [12] | Kepala Bolt-Socket(M10X1.5X30-MM) | |
| 56. | 1U-8846B | SEALANT-GASKET | ||
| KIT PEMBERAHAN yang tersedia: | ||||
| 296-6219J | [1] | KIT-Housing(Final Drive) | ||
| B | Gunakan sesuai kebutuhan | |||
| C | Perubahan dari tipe sebelumnya | |||
| J | KIT MARKED J SERVICES PART (s) MARKED J | |||
| M | Bagian Metrik | |||
