4466663 250kg Hydraulic Final Drive ZX160 Travel Gearbox Dengan Motor Untuk Hitachi ZX160
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | 4466663 penggerak akhir hidrolik,250kg hidraulik penggerak akhir ZX160,4466663 |
||
|---|---|---|---|
Deskripsi Produk

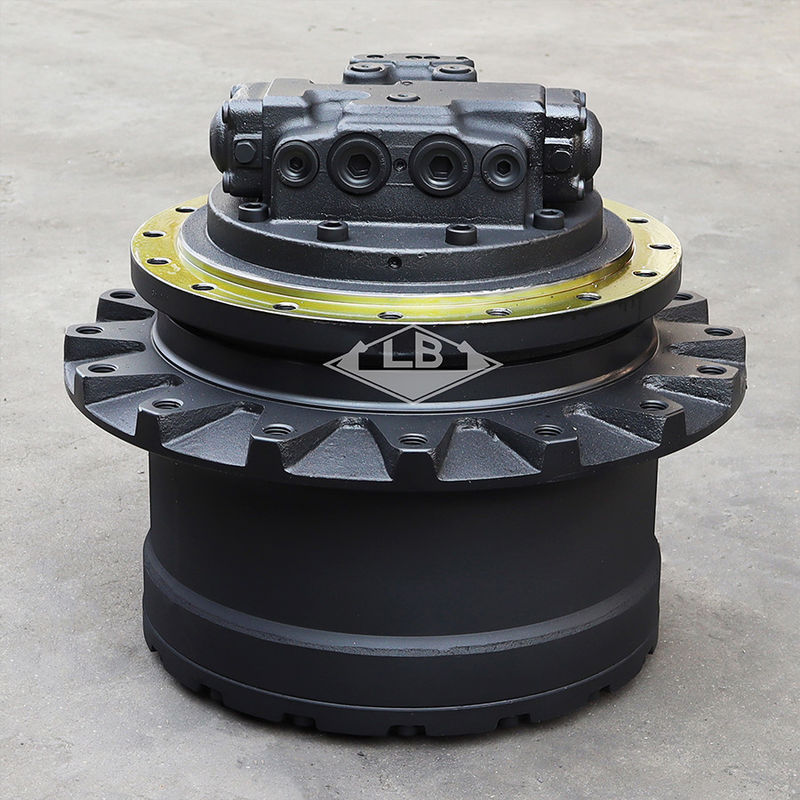

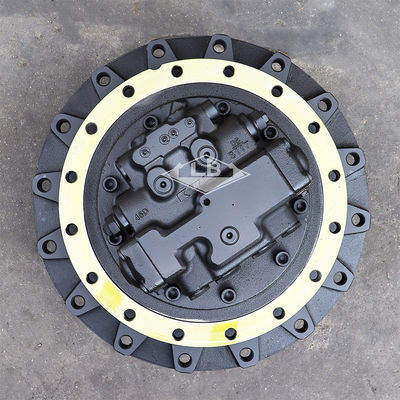

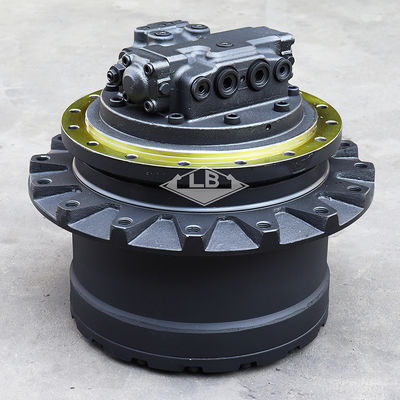

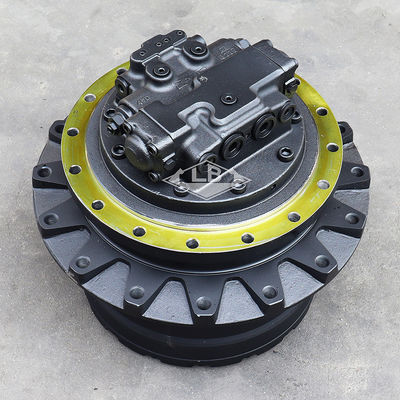

ZX160 Travel Gearbox dengan motor 4466663 Untuk Hitachi ZX160 Final Drive
Parameter produk
| Pnama seni | ZX160 Final Drive | |||||
| Peralatan | Mendaftar untuk HITACHI EXKAVATOR | |||||
| Bagian no. | 4466663 | |||||
| Lubang rangka | 16 | |||||
| Lubang roda gigi | 16 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 250 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian dari kelompok T.MISSION:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 4466663 | [1] | T.MISI | ||
| 1. | +++++++ | [1] | Pemegang | |
| 2. | 0251523 | [1] | SEAL | |
| 3. | 0693002 | [2] | BRG. | |
| 4. | 0693003 | [1] | NUT | |
| 5. | 0732202 | [4] | PLUG | |
| 6. | +++++++ | [1] | Perumahan | |
| 8. | 0796002 | [4] | Gear;Planetary | |
| 9. | 0693005 | [4] | BRG.; jarum | |
| 10. | 0693006 | [4] | Ras; Dalam | |
| 11. | 0692508 | [4] | WASHER;THRUST | |
| 12. | 0693007 | [4] | PLATE;THRUST | |
| 13. | 0693008 | [1] | PELUANG | |
| 14. | 4051262 | [4] | PIN;SPRING | |
| 15. | 0796003 | [1] | Gear;SUN | |
| 16. | 0693010 | [1] | RING;RETENING | |
| 17. | 0796004 | [1] | Pemegang | |
| 18. | 0796012 | [3] | Gear;Planetary | |
| 19. | 0796005 | [3] | Roller | |
| 20. | 0693013 | [3] | Ras; Dalam | |
| 21. | 0796006 | [3] | WASHER;THRUST | |
| 22. | 0796007 | [3] | PLATE;THRUST | |
| 23. | 0796008 | [1] | PLATE;THRUST | |
| 24. | 0796009 | [1] | Gear;Drive | |
| 25. | 0796010 | [1] | Plat; THRUST ASSY | |
| 25A. | +++++++ | [1] | PLATE;THRUST | (t=3,6mm) |
| 25B. | +++++++ | [1] | PLATE;THRUST | (t=2,3mm) |
| 25C. | +++++++ | [1] | PLATE;THRUST | (t=2,8mm) |
| 25D. | +++++++ | [1] | PLATE;THRUST | (t=3,0mm) |
| 25E. | +++++++ | [1] | PLATE;THRUST | (t=3,2 mm) |
| 26. | 0796015 | [1] | PELUAR | |
| 27. | 0411634 | [16] | BOLT;SOCKET | |
| 28. | 0693019 | [3] | PLUG | |
| 29. | 4506424 | [3] | O-RING | |
| 100. | 4402987 | [1] | KIT;SEAL | |
| 200. | 4468766 | [1] | Pemegang | |
| 300. | 0796016 | [1] | KIT;COVER |
