K1011413A K9005007 170402-00039 DX255 Final Drive Gear DX255 DH258 SOLAR 255LC-V Travel Gearbox Dengan Motor
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | K1011413A peralatan penggerak akhir,K9005007 peralatan penggerak akhir,170402-00039 |
||
|---|---|---|---|
Deskripsi Produk

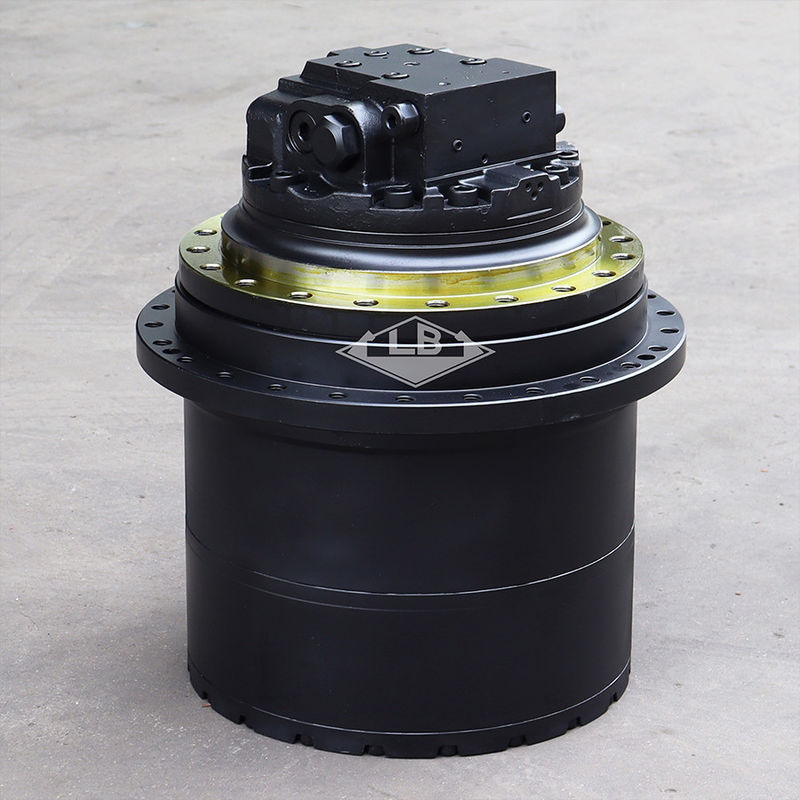

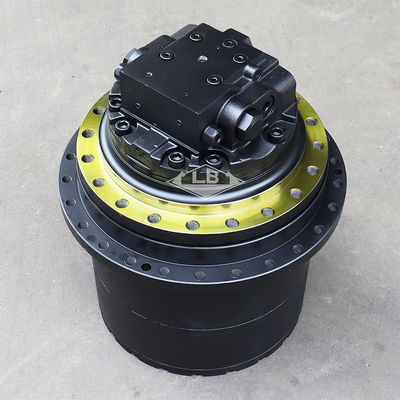

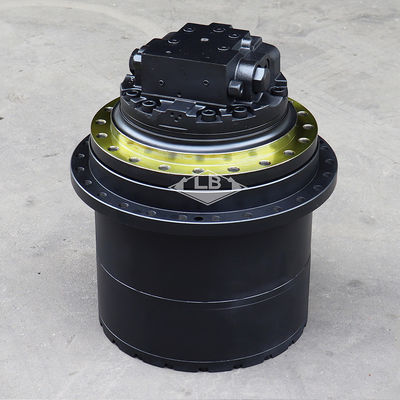

DX255 DH258 SOLAR 255LC-V Gearbox perjalanan dengan motor K1011413A K9005007 170402-00039 DX255 Penggerak akhir
Parameter produk
| Pnama seni | DX255 DH258 SOLAR 255LC-V Penggerak akhir | |||||
| Peralatan | Berlaku untuk DOOSAN EXKAVATOR | |||||
| Bagian no. | K1011413A K9005007 170402-00039 | |||||
| Lubang rangka | 20 | |||||
| Lubang roda gigi | 26 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 340 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian pada kelompok DX255LC:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| -. | K1011413A | [2] | Perangkat Perjalanan | 170401-00042 |
| -. | 170401-00042 | [2] | 170401-00042A | |
| -. | 170401-00042A | [2] | ||
| 1. | *NA00546 | [1] | Hub | |
| 12. | 1.540-00004 | [1] | PEACE; DISTANCE | |
| 13. | 1.430-00030 | [1] | PELUAR | |
| 13. | 110508-23087 | [1] | ||
| 14. | 1.114-00541 | [6] | KOLER; TEKAN | |
| 15. | 1.115-00138 | [1] | RING | |
| 17. | 1.123-00034 | [10] | PIN | |
| 19. | 1.414-00009 | [1] | Pergaulan | |
| 2. | *NA01154 | [1] | ||
| 20. | 1.412-00164 | [2] | PLATE;THRUST | |
| 23. | 1.180-00355 | [1] | RING;SEAL | |
| 24. | 1.109-00146 | [2] | Bantalan; bola sudut | |
| 25. | 1.109-00145 | [6] | Berkas; jarum | |
| 26. | 1.180-00512 | [1] | SEAL;FLOATING | |
| 27. | 1.123-00107 | [10] | PIN;PARALLEL D12X63 | |
| 29. | S8012300 | [1] | O-RING | |
| 3. | 1.230-00054 | [1] | Pengangkut | |
| 30. | 2181-1116D4 | [3] | PLUG | |
| 30. | 2181-1890D4 | [3] | PLUG | |
| 32. | S0561471 | [20] | BOLT;HEX M12X1.75X85 | |
| 32. | S2216261 | [20] | BOLT;SOCKET M12X1.75X80 | |
| 33. | S5110701 | [20] | PENGEMAS;SPRING M12 | |
| 34. | 1.123-00026 | [3] | PIN;PARALEL | |
| 35. | S2224471 | [10] | ..BOLT; SOCKET M8X2.5X40 | |
| 36. | S6250200 | [1] | Ball; STELL | |
| 38. | S8000181 | [3] | O-RING | |
| 39. | S8000081 | [2] | O-RING | |
| 4. | *NA00495 | [1] | ||
| 40. | S8003401 | [1] | TORIQUE Bersama | |
| 5. | 1.104-00003 | [1] | GER;RING B | |
| 6. | 1.404-00007 | [3] | Gear;Cluster | |
| 7. | 1.403-00111 | [1] | Gear;SUN | |
| 8. | 1.404-00002 | [1] | Gear;Coupling | |
| 9. | 1.405-00121 | [3] | SHAFT; Cluster | |
| RG. | K9005007 | [1] | REDUCTION GEAR ASSY | 170402-00039 |
| RG. | 170402-00039 | [1] | ||
| RG1. | K9005008 | [1] | Hub ASSY | |
| RG1. | 900122-00134 | [1] | ||
| RG2. | K9005010 | [1] | Spindle ASSY | |
| RG3. | 1.230-00053 | [1] | Pengangkut ASSY |
