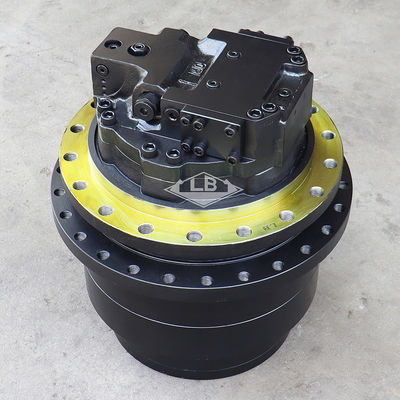

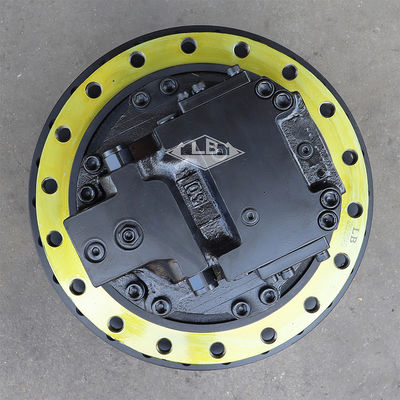

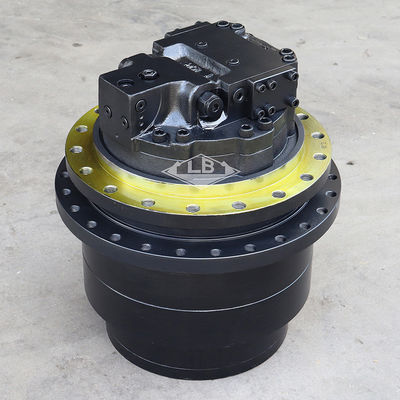

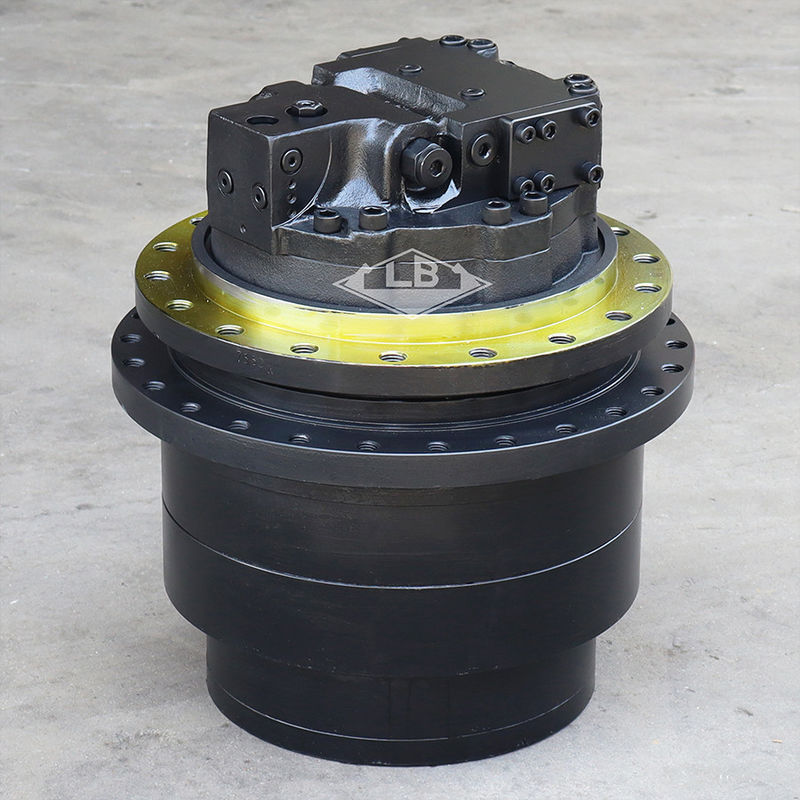

R305-7 R290 R320 Gearbox Final Drive 31N8-40070 31N8-40050 31N8-40060 31Q8-40060 31Q8-40061

R305-7 R290 R320 Gearbox Final Drive 31N8-40070 31N8-40050 31N8-40060 31Q8-40060 31Q8-40061

Detail produk:

Harga terbaik Kontak

Informasi Detail
Menyoroti:

R305-7 R290 Penggerak akhir

,

R320 gearbox Final Drive

,

31N8-40070

Deskripsi Produk

R305-7 R290 R320 Gearbox perjalanan dengan motor 31N8-40070 31N8-40050 31N8-40060 31Q8-40060 31Q8-40061 31Q8-40040 R305-7 Fina

Parameter produk
Pnama seni R305-7 R290 R320 Penggerak akhir
Peralatan Mendaftar untuk HYUNDAI EXKAVATOR
Bagian no. 31Q8-40060 31Q8-40061 31Q8-40062 31Q8-40063 31Q8-40040
Lubang rangka 18
Lubang roda gigi 26
Kondisi barang Baru
Logo LB
Berat kotor 420 KG
MOQ 1 pcs

Deskripsi Produk

R305-7 R290 R320 Gearbox Final Drive 31N8-40070 31N8-40050 31N8-40060 31Q8-40060 31Q8-40061 0R305-7 R290 R320 Gearbox Final Drive 31N8-40070 31N8-40050 31N8-40060 31Q8-40060 31Q8-40061 1

Bagian-bagian pada kelompok TRAVEL REDUCTION GEAR ((#0108-):

R305-7 R290 R320 Gearbox Final Drive 31N8-40070 31N8-40050 31N8-40060 31Q8-40060 31Q8-40061 2

Posisi. Bagian No. Qty Nama bagian Komentar
*-2. 31N8-40070 [1] T/REDUCTION GEAR
*-2. 31N8-40071 [1] T/REDUCTION GEAR
*-2. 31N8-40071BG [1] T/REDUCTION GEAR
*-2. 31N8-40072 [1] T/REDUCTION GEAR
*-2. 31N8-40073 [1] T/REDUCTION GEAR
2. XKAQ-00173 [1] SEAL-FLOATING
2. XKAQ-00803 [1] SEAL-FLOATING
3. XKAQ-00174 [1] Perumahan
3. XKAQ-00802 [1] Perumahan
4. XKAQ-00175 [2] Keterangan:
4. XKAQ-00175-AS [2] Keterangan: Hanya untuk AS
5. XKAQ-00176 [1] SHIM Penyakit menular seksual
5. XKAQ-00992 [1] SHIM 0.5T
5. XKAQ-00993 [1] SHIM 0.9T
5. XKAQ-00994 [1] SHIM 1.0T
5. XKAQ-00995 [1] SHIM 1.2T
6. XKAQ-00177 [1] Pengendali
7. XKAQ-00178 [17] Bolt-Wrench
8. XKAQ-00179 [1] Pengangkut ASSY-NO.3
8. XKAQ-00398 [1] Pengangkut 3 ASSY
8-1. XKAQ-00180 [1] Pengangkut-Tidak.3
8-1. XKAQ-00396 [1] Pengangkut 3
8-2. XKAQ-00181 [4] Gear-Planetary NO.3
8-2. XKAQ-00389 [4] Gear 3-Planetary
8-3. XKAQ-00182 [72] Jarum-Tidak.3
8-3. XKAQ-00390 [72] Jarum 3
8-4. XKAQ-00183 [8] No. pencetakan cuci.3
8-4. XKAQ-00391 [8] WASHER 3-THRUST
8-5. XKAQ-00184 [4] PIN 3
8-6. XKAQ-00185 [4] PIN 3-SPRING
8-7. XKAQ-00186 [1] Gear 3-SUN
8-8. XKAQ-00187 [1] Ring 3-SNAP
8-9. XKAQ-00651 [4] PIN 3-SPRING
9. XKAQ-00188 [1] Pengangkut ASSY-NO.2
9. XKAQ-00399 [1] Pengangkut ASSY 2
911, tolong. XKAQ-00189 [1] Pengangkut-Tidak.2
911, tolong. XKAQ-00397 [1] Pengangkut 2
9-2. XKAQ-00190 [3] Gear-Planetary NO.2
9-2. XKAQ-00392 [3] Gear 2-planetary
9-3. XKAQ-00191 [45] Jarum-Tidak.2
9-3. XKAQ-00393 [45] Jarum 2
9-4. XKAQ-00192 [6] No. pencetakan cuci.2
9-4. XKAQ-00394 [6] WASHER 2-THRUST
9 sampai 5. XKAQ-00193 [3] PIN 2
9-6. XKAQ-00194 [6] PIN 2-SPRING
9-7. XKAQ-00195 [1] Gear 2-SUN
9-8. XKAQ-00196 [1] RING 2-SNAP
9-9. XKAQ-00650 [6] PIN 2-SRPING
10. XKAQ-00197 [1] Pengangkut ASSY-NO1
10. XKAQ-00400 [1] Pengangkut 1 ASSY
10-1. XKAQ-00198 [1] Pengangkut 1
10-2. XKAQ-00199 [3] Gear 1-Planetary
10 sampai 3. XKAQ-00200 [3] Jaring bantalan
10-4. XKAQ-00201 [6] Kekuatan pencucian NO1
10-4. XKAQ-00395 [6] WASHER 1-THRUST
10-5. XKAQ-00202 [3] PIN 1
11. XKAQ-00203 [1] Gear 1-SUN
12. XKAQ-00204 [3] PLUG
13. XKAQ-00205 [4] PIN-LOCK
14. XKAQ-00206 [1] GANG-RING
14. XKAQ-00762 [1] GANG-RING
15. XKAQ-00207 [24] Bolt-Wrench
16. XKAQ-00208 [1] Kekuatan RING-THRUST
17. XKAQ-00209 [1] PELUAR
18. XKAQ-00210 [1] RING 2-THRUST
19. XKAQ-00211 [16] Bolt-Wrench
20. XKAQ-00212 [1] Motor-ring
21. XKAQ-00213 [1] RING 3-THRUST
22. XKAQ-00214 [1] PAD
23. XKAQ-00215 [1] Pergaulan
N. @ [1] Bagian-bagian yang tidak disuplai
