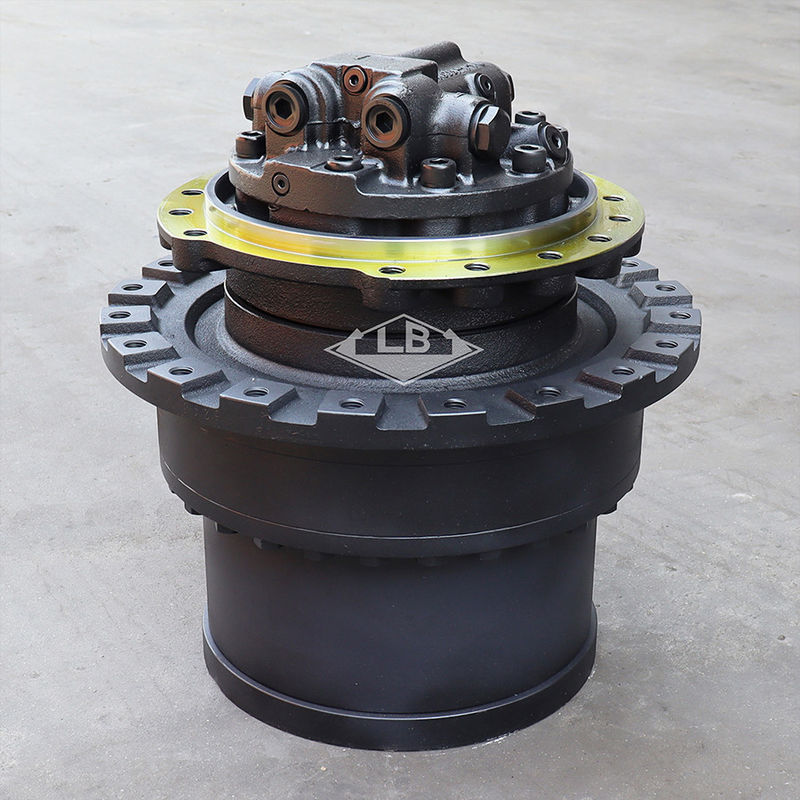

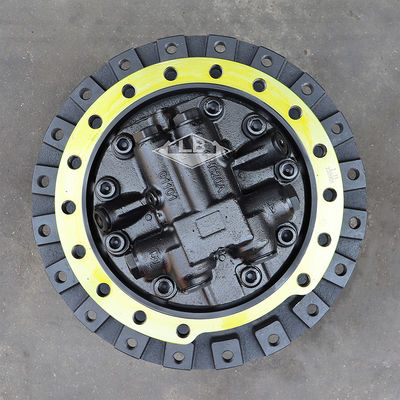

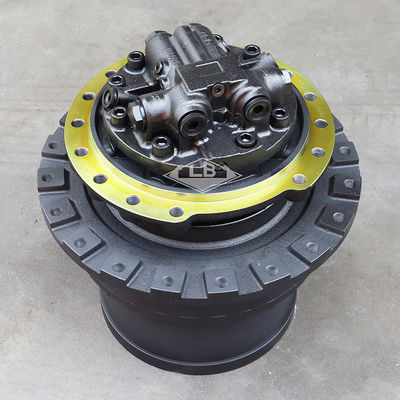

HITACHI ZX240-3 Travel Gearbox Final Drive Dengan Motor 9243839 9256989 ZX240-3
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Hitachi drive akhir,Gearbox perjalanan ZX240-3 Final Drive,9243839 |
||
|---|---|---|---|
Deskripsi Produk
HITACHI ZX240-3 Gearbox perjalanan dengan motor 9243839 9256989 ZX240-3 Final drive
Parameter produk
| Pnama seni | ZX240-3 Gearbox perjalanan | |||||
| Peralatan | Mendaftar untuk HITACHI EXKAVATOR | |||||
| Bagian no. | 9243839 9256989 | |||||
| Lubang rangka | 16 | |||||
| Lubang roda gigi | 20 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 290 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian pada kelompok Perangkat Perjalanan:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 9243839 | [1] | Perangkat Perjalanan | Aku 9256989 |
|
| (9256989) | [1] | Perangkat Perjalanan | ||
| 00. | 9242907 | [1] | MOTOR OIL | Aku 9257553 |
| 00. | (9257553) | [1] | MOTOR OIL | |
| 02. | 4634693 | [1] | SEAL; GROUP | |
| 03. | 4246793 | [2] | BRG.; ROL. | |
| 04. | 1032488 | [1] | Drum | |
| 05. | 1032489 | [1] | SPROCKET | |
| 06. | J932055 | [20] | BOLT | |
| 07. | A590920 | [20] | PEMANAS;SEMBAH | |
| 09. | 3086531 | [1] | NUT | |
| 10. | 4436242 | [1] | PIN;TEKAN | |
| 11. | 4628766 | [6] | BRG.; jarum | |
| 12. | 1032487 | [1] | Pengangkut | |
| 13. | 3103053 | [3] | Gear;Planetary | |
| 15. | 4624830 | [6] | PLATE;THRUST | |
| 16. | 4139975 | [3] | PIN | |
| 17. | 4116309 | [3] | PIN;SPRING | |
| 18. | 3103054 | [1] | Gear;SUN | |
| 20. | 1032490 | [1] | Gear;RING | |
| 21. | J931640 | [28] | BOLT | |
| 23. | 1032486 | [1] | Pengangkut | |
| 24. | 4183819 | [1] | SPACER | |
| 25. | 3103052 | [3] | Gear;Planetary | |
| 26. | 4445529 | [3] | BRG.; jarum | |
| 27. | 4210851 | [6] | PLATE;THRUST | |
| 28. | 4309995 | [3] | PIN | |
| 29. | 4246358 | [3] | PIN;SPRING | |
| 30. | 3082149 | [1] | Gear;SUN | |
| 32. | 1032485 | [1] | Pengangkut | |
| 33. | 4401293 | [1] | SPACER | |
| 34. | 3103051 | [3] | Gear;Planetary | |
| 35. | 4406589 | [3] | BRG.; jarum | |
| 36. | 4148080 | [6] | PLATE;THRUST | |
| 37. | 4210853 | [3] | PIN | |
| 38. | 4173093 | [3] | PIN;SPRING | |
| 39. | 2049585 | [1] | SHAFT;PROP. | |
| 41. | 2051690 | [1] | PELUAR | |
| 42. | 4478346 | [1] | PIN;STOPPER | |
| 43. | 4609016 | [12] | BOLT;SEMS | |
| 44. | 4245797 | [3] | PLUG | |
| 46. | +++++++ | [1] | NAME-PLATE | |
| 47. | M492564 | [2] | Screw; Drive |
