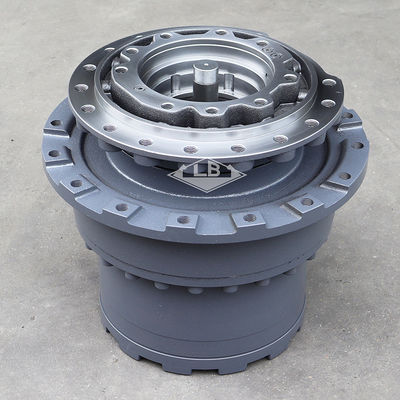

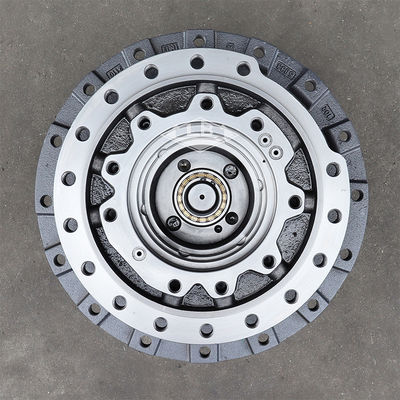

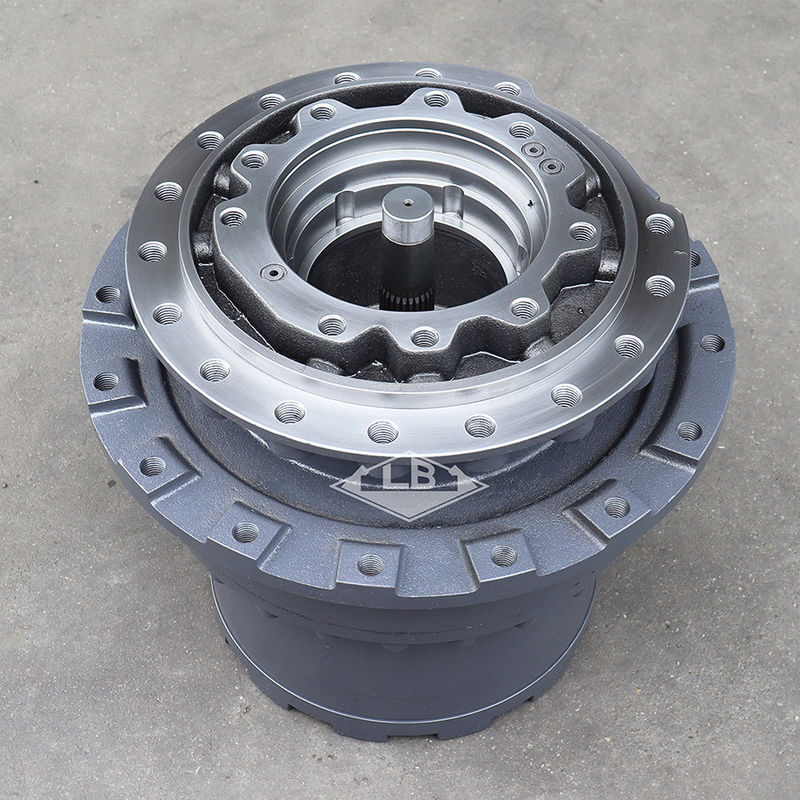

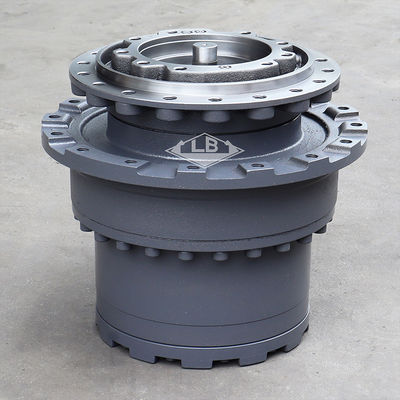

ZX200 ZX200-1 Perangkat perjalanan 9170996 9233687 9195447 9233688 ZX200-1 Gearbox perjalanan
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Gearbox Perjalanan,drive akhir,pendorong akhir hidrolik |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | EX200-6 ZX200-1 Gearbox perjalanan | |||||
| Peralatan | Mendaftar untuk HITACHI EXKAVATOR | |||||
| Bagian no. | 9170996 9233687 9195447 | |||||
| Lubang rangka | 16 | |||||
| Lubang roda gigi | 16 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 228 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian pada kelompok TRAVEL DEVICE <200,E,210H,K>:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 9170996 | [2] | Perangkat Perjalanan | Aku 9195447 | |
| 9233687 | [2] | Perangkat Perjalanan | Aku 9233688 (untuk perakitan mesin) | |
| 9195447 | [2] | Perangkat Perjalanan | ||
| 9233688 | [2] | Perangkat Perjalanan | (untuk transportasi) | |
| 00. | 9168003 | [1] | MOTOR OIL | Aku 9195451 |
| 00. | 9234034 | [1] | MOTOR OIL | Aku 9237802 (untuk perakitan mesin) |
| 00. | 9195451 | [1] | MOTOR OIL | |
| 00. | 9237802 | [1] | MOTOR OIL | (untuk transportasi) |
| 02. | 4114753 | [1] | SEAL; GROUP | Aku 4634693 |
| 02. | 4634693 | [1] | SEAL; GROUP | |
| 03. | 4246793 | [2] | BRG.; ROL. | |
| 04. | 1025833 | [1] | Drum | |
| 05. | 1018740 | [1] | SPROCKET | |
| 06. | J932055 | [16] | BOLT | |
| 07. | A590920 | [16] | PEMANAS;SEMBAH | |
| 08. | 3086531 | [1] | NUT | |
| 10. | 4436242 | [1] | PIN;TEKAN | |
| 12. | 1025875 | [1] | Pengangkut | |
| 14. | 4438593 | [6] | BRG.; jarum | |
| 15. | 4284521 | [6] | PLATE;THRUST | |
| 16. | 4315838 | [3] | PIN | |
| 17. | 4116309 | [3] | PIN;SPRING | |
| 18. | 3082156 | [1] | Gear;SUN | |
| 19. | 3084353 | [3] | Gear;Planetary | |
| 20. | 1025787 | [1] | Gear;RING | |
| 21. | J931640 | [24] | BOLT | |
| 23. | 2042432 | [1] | Pengangkut | |
| 24. | 4401293 | [2] | SPACER | |
| 25. | 3082155 | [3] | Gear;Planetary | |
| 26. | 4438592 | [3] | BRG.; jarum | |
| 27. | 4192982 | [6] | PLATE;THRUST | |
| 28. | 4402086 | [3] | PIN | |
| 29. | 4192020 | [3] | PIN;SPRING | |
| 30. | 3082149 | [1] | Gear;SUN | |
| 32. | 1025826 | [1] | Pengangkut | |
| 33. | 3082148 | [3] | Gear;Planetary | |
| 34. | 4387383 | [3] | BRG.; jarum | |
| 35. | 4192910 | [6] | PLATE;THRUST | |
| 36. | 4210853 | [3] | PIN | |
| 37. | 4173093 | [3] | PIN;SPRING | |
| 38. | 2042351 | [1] | SHAFT;PROP. | |
| 38. | 2049585 | [1] | SHAFT;PROP. | |
| 40. | 2034833 | [1] | PELUAR | |
| 41. | 4285323 | [1] | PIN;STOPPER | Y 4478346 |
| 41. | 4478346 | [1] | PIN;STOPPER | |
| 42. | J011230 | [12] | BOLT;SEMS | Aku 4609016 |
| 42. | 4609016 | [12] | BOLT;SEMS | |
| 43. | 4245797 | [3] | PLUG | |
| 46. | 3053559 | [1] | NAME-PLATE | |
| 47. | M492564 | [2] | Screw; Drive |
