KUA10580 KUA10590 CX800 Travel Gearbox CASE800 CX800 TRAVEL REDUCTION GEAR Drive akhir
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | KUA10580 Gearbox perjalanan,KUA10590 CX800 Travel Gearbox,Gear pengurangan perjalanan CX800 |
||
|---|---|---|---|
Deskripsi Produk

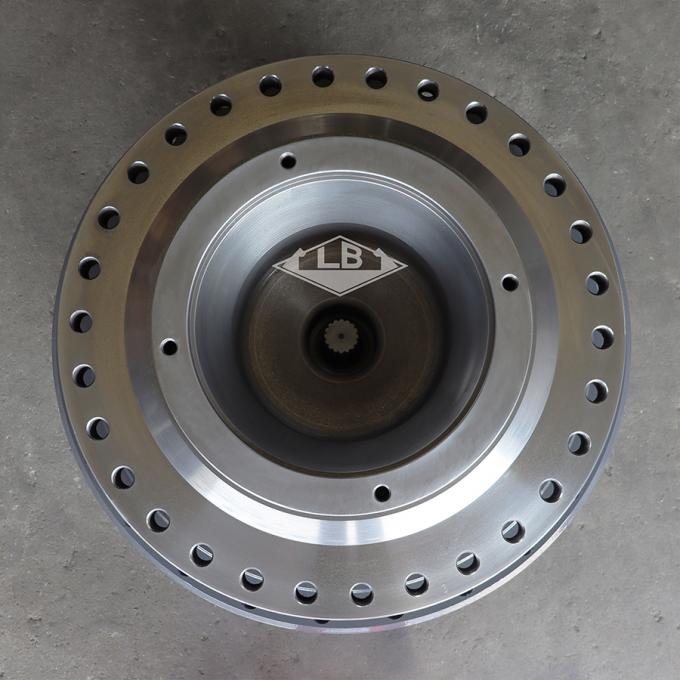

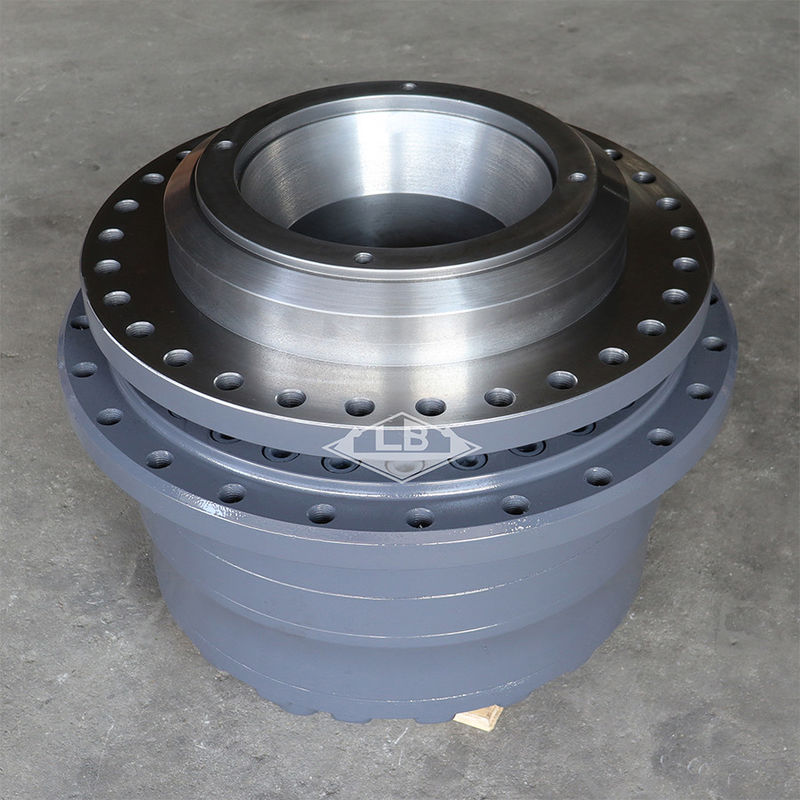

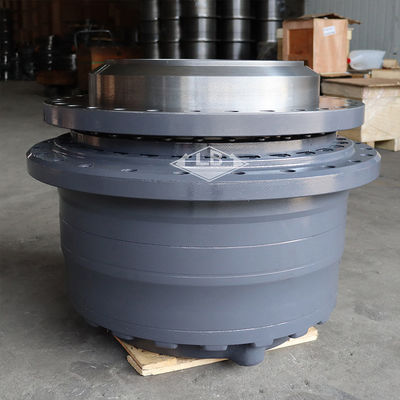

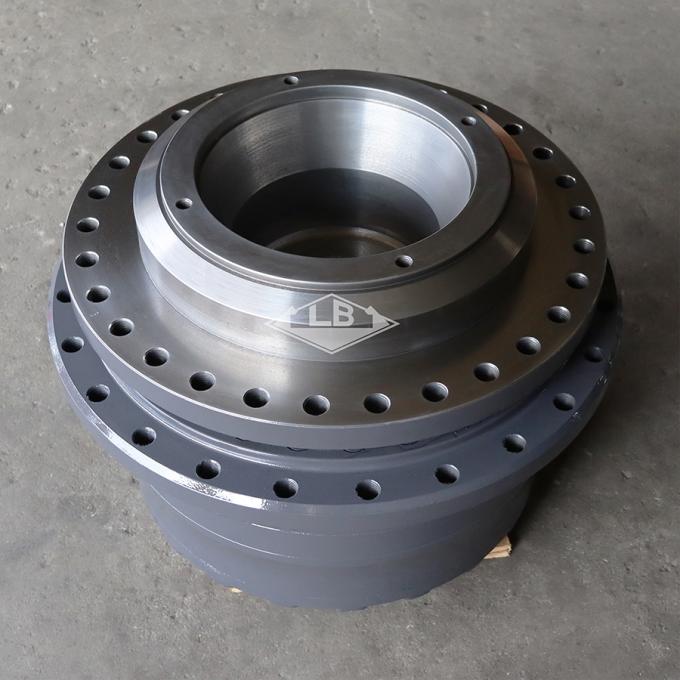

CASE800 CX800 TRAVEL REDUCTION GEAR Penggerak akhir tanpa motor KUA10580 KUA10590 CX800 Gearbox perjalanan
Parameter produk
| Pnama seni | CX800 Travel gearbox | |||||
| Peralatan | Berlaku pada CASE EXKAVATOR | |||||
| Bagian no. | KUA10580 KUA10590 | |||||
| Lubang rangka | 24 | |||||
| Lubang roda gigi | 30 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 938KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian pada kelompok (CX800) - CRAWLER EXCAVATOR TIER 3 (NA) (3/06-12/08):
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 5. | KUA10580 | [1] | REDUCER | SUMTermasuk 7 - 53 |
| 7. | KUA10550 | [1] | Perumahan | SUM |
| 8. | 862-14035 | [60] | Sekrup HEX SOC, M14 x 35mm, Cl 12.9 | SUMDigantikan dengan nomor bagian: 108R014Y035R |
| 9. | KUA0016 | [1] | Rumah bantalan | SUM |
| 10. | KUA0020 | [2] | Bantalan, bola | SUM |
| 11. | KUA0030 | [1] | SHIM | SUM |
| 12. | KUA10500 | [1] | CUP PEMERINTAH | SUM |
| 13. | 163918A1 | [1] | PELAT | SUM |
| 14. | KUA10570 | [1] | SET GEAR | SUMTermasuk 15 - 19 |
| 15. | NSS | [1] | TIDAK DIJUAL SEPARAT | CONPembawa, Planetary |
| 16. | NSS | [5] | TIDAK DIJUAL SEPARAT | CONGear, Planetary |
| 17. | NSS | [5] | TIDAK DIJUAL SEPARAT | CONPin |
| 18. | KUA0029 | [10] | PELAT | SUM |
| 19. | NSS | [5] | TIDAK DIJUAL SEPARAT | CONPin, Spring |
| 20. | KUA10060 | [1] | RING GEAR | SUM |
| 21. | KUA10290 | [1] | PENGANTAR SUN | SUM |
| 22. | 862-12035 | [32] | Sekrup HEX SOC, M12 x 35mm, Cl 12.9 | SUM |
| 23. | KUA10330 | [1] | SET GEAR | SUMTermasuk 24 - 28 |
| 24. | NSS | [1] | TIDAK DIJUAL SEPARAT | CONPembawa, Planetary |
| 25. | NSS | [4] | TIDAK DIJUAL SEPARAT | CONGear, Planetary |
| 26. | NSS | [4] | TIDAK DIJUAL SEPARAT | CONPin |
| 27. | 163922A1 | [8] | PELAT | SUM |
| 28. | NSS | [4] | TIDAK DIJUAL SEPARAT | CONPin, Spring |
| 29. | KUA10190 | [1] | PELUAR | SUM |
| 30. | KUA10050 | [1] | RING GEAR | SUM |
| 31. | KUA10320 | [1] | SET GEAR | SUMTermasuk 32 - 37 |
| 33. | NSS | [3] | TIDAK DIJUAL SEPARAT | CONGear, Planetary |
| 34. | NSS | [3] | TIDAK DIJUAL SEPARAT | CONPin |
| 35. | NSS | [3] | TIDAK DIJUAL SEPARAT | CONBantalan, Jarum |
| 36. | NSS | [6] | TIDAK DIJUAL SEPARAT | CONPiring |
| 37. | 338W060Z025B | [3] | COTTER PIN | SUM |
| 38. | KUA0026 | [1] | PLATE, THRUST | SUM |
| 39. | 163924A1 | [1] | RING | SUM |
| 40. | KUA10260 | [1] | PENGANTAR SUN | SUM |
| 41. | KUA10230 | [1] | PENGANTAR SUN | SUM |
| 42. | 800-1150 | [2] | SNAP RING, M50, Ext | CASDigantikan oleh nomor bagian: 8603209 |
| 43. | KUA10510 | [1] | PLAT TEKAN | SUM |
| 44. | KUA10220 | [1] | SHAFT Gear | SUM |
| 45. | 163929A1 | [1] | SHIM | SUM |
| 46. | 163917A1 | [1] | PELAT | SUM |
| 47. | 152K012Y025B | [2] | SET SCREW | SUMM12 x 25 |
| 48. | 151627A1 | [4] | PIN | SUM |
| 49. | 150829A1 | [3] | PLUG | SUM |
| 50. | KUA0027 | [1] | PLATE, THRUST | SUM |
| 51. | 108R024Y160R | [30] | BOLT | CASM24 x 160 |
| 52. | KUA10490 | [1] | Pengendali | SUM |
| 53. | KUA0022 | [1] | Kemasan | SUM |
