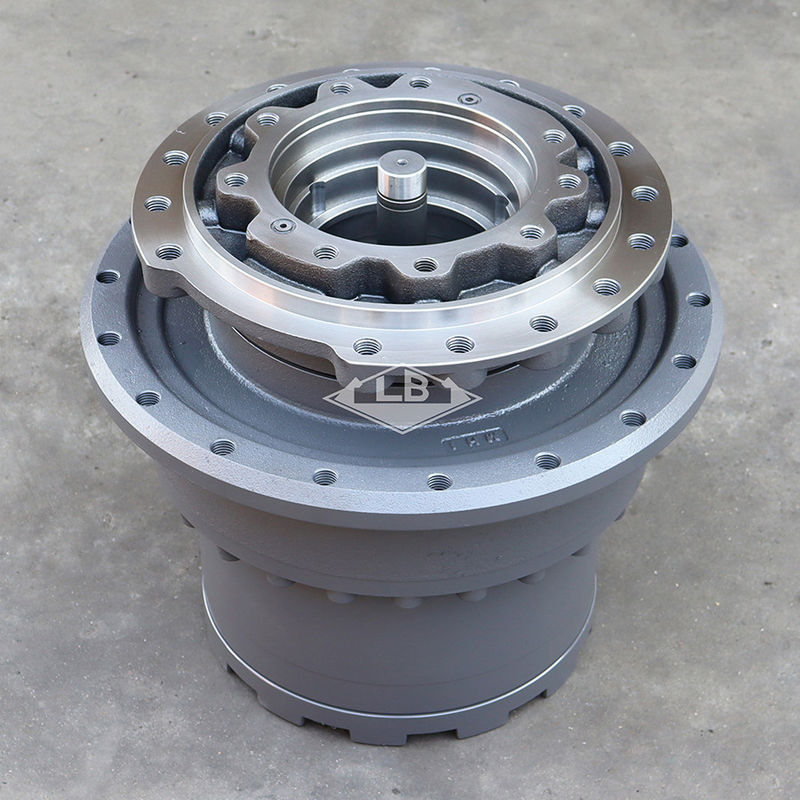

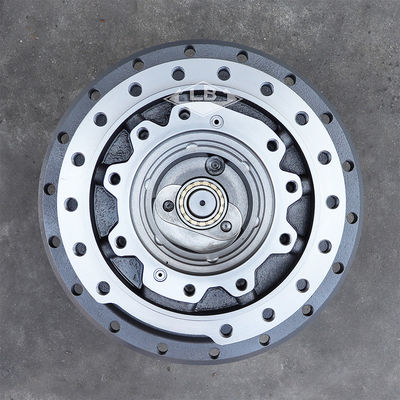

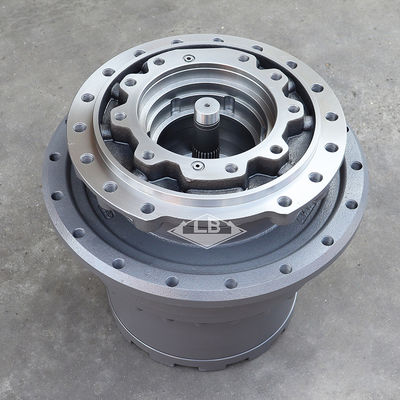

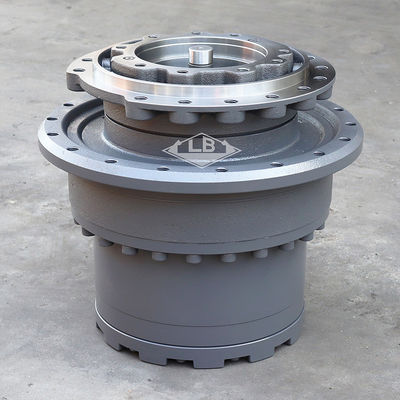

9233692 9261222 Travel Gearbox Hitachi ZX200-3 ZX200-5G ZX210-5G Perangkat Perjalanan ZX200-3
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | 9233692 Gearbox perjalanan,Travel Gearbox Hitachi,9261222 |
||
|---|---|---|---|
Deskripsi Produk
9233692 9261222 Hitachi ZX200-3 ZX200-5G ZX210-5G Perangkat perjalanan ZX200-3 Gearbox perjalanan
Parameter produk
| Pnama seni | ZX200-3 Travel gearbox | |||||
| Peralatan | Memohon untuk Hitachi EXKAVATOR | |||||
| Bagian no. | 9233692 9261222 | |||||
| Lubang rangka | 16 | |||||
| Lubang roda gigi | 18 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 242KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian pada kelompok Perangkat Perjalanan:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 9233692 | [1] | Perangkat Perjalanan | Aku 9261222 < untuk perakitan mesin> | |
| 9261222 | [1] | Perangkat Perjalanan | ||
| 01. | 9257254 | [1] | MOTOR OIL | Aku 9258325 < untuk perakitan mesin> |
| 01. | 9258325 | [1] | MOTOR OIL | |
| 02. | 4634693 | [1] | SEAL; GROUP | |
| 03. | 4246793 | [2] | BRG.; ROL. | |
| 04. | 1033090 | [1] | Drum | |
| 05. | 1033091 | [1] | SPROCKET | |
| 06. | J932055 | [18] | BOLT | |
| 07. | A590920 | [18] | PEMANAS;SEMBAH | |
| 08. | 3086531 | [1] | NUT | |
| 10. | 4436242 | [1] | PIN;TEKAN | |
| 12. | 1025875 | [1] | Pengangkut | |
| 13. | 3084353 | [3] | Gear;Planetary | |
| 14. | 4438593 | [6] | BRG.; jarum | |
| 15. | 4284521 | [6] | PLATE;THRUST | |
| 16. | 4116309 | [3] | PIN;SPRING | |
| 17. | 4315838 | [3] | PIN | |
| 18. | 3082156 | [1] | Gear;SUN | |
| 20. | 1025787 | [1] | Gear;RING | |
| 21. | J931640 | [24] | BOLT | |
| 23. | 2042432 | [1] | Pengangkut | |
| 24. | 4401293 | [2] | SPACER | |
| 25. | 3082155 | [3] | Gear;Planetary | |
| 26. | 4438592 | [3] | BRG.; jarum | |
| 27. | 4192982 | [6] | PLATE;THRUST | |
| 28. | 4402086 | [3] | PIN | |
| 29. | 4192020 | [3] | PIN;SPRING | |
| 30. | 3082149 | [1] | Gear;SUN | |
| 32. | 2050691 | [1] | Pengangkut | |
| 33. | 3100544 | [3] | Gear;Planetary | |
| 34. | 4406589 | [3] | BRG.; jarum | |
| 35. | 4192910 | [6] | PLATE;THRUST | |
| 36. | 4210853 | [3] | PIN | |
| 37. | 4173093 | [3] | PIN;SPRING | |
| 38. | 2050692 | [1] | SHAFT;PROP. | |
| 40. | 2034833 | [1] | PELUAR | |
| 41. | 4478346 | [1] | PIN;STOPPER | |
| 42. | 4699148 | [12] | BOLT;SEMS | |
| 43. | 4245797 | [3] | PLUG | |
| 46. | +++++++ | [1] | NAME-PLATE | |
| 47. | M492564 | [2] | Screw; Drive |
