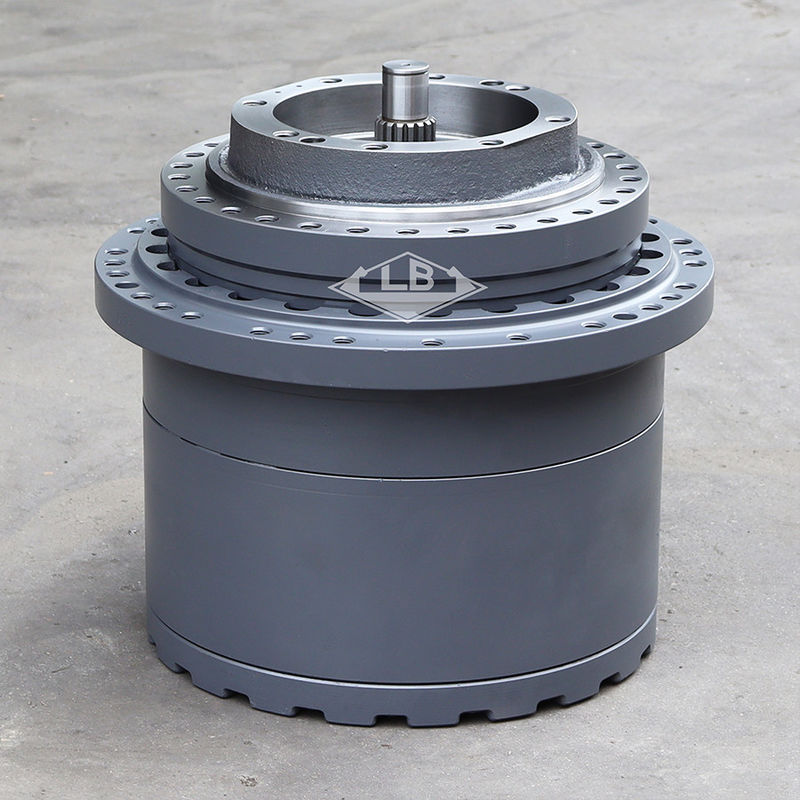

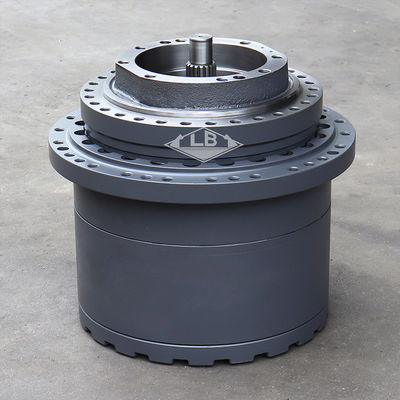

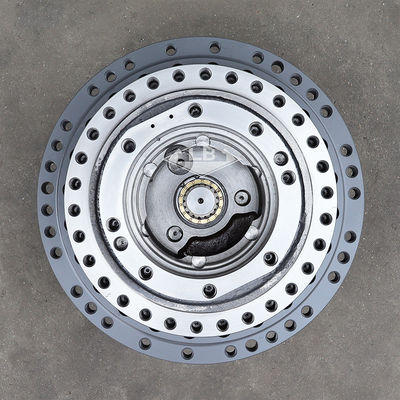

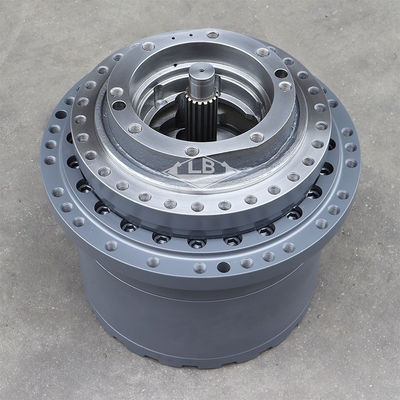

R220-9 R260-9 Travel Gearbox Excavator Final Drive 39Q6-42100 39Q6-42101
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | R220-9 Gearbox Perjalanan,R260-9 Gearbox Perjalanan,39Q6-42101 |
||
|---|---|---|---|
Deskripsi Produk
R220-9 R260-9 Excavator Final drive Gearbox pengurangan perjalanan 39Q6-42100 39Q6-42101 39Q7-42100 39Q7-42101 R220-9 Perjalanan g
Parameter produk
| Pnama seni | R220-9 R260-9 Gearbox perjalanan | |||||
| Peralatan | Memohon untuk Hyundai EXKAVATOR | |||||
| Bagian no. | 39Q6-42100 39Q6-42101 39Q7-42100 39Q7-42101 | |||||
| Lubang rangka | 20 | |||||
| Lubang roda gigi | 20 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 345KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian pada kelompok GARAN REDUCTION TRAVEL (TYPE 2 & 3):
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| * | @ | [1] | ASSY MOTOR Perjalanan | SEE 4155 |
| *-2. | 39Q6-42100 | [1] | GERRY REDUCTION TRAVEL | |
| *-2. | 39Q6-42101 | [1] | GERRY REDUCTION TRAVEL | |
| 1. | 39Q6-42110 | [1] | GANG-RING | |
| 2. | 39Q6-42120 | [2] | Berlangsung-ANG. bola | |
| 3. | 39Q6-42130 | [2] | SEAL ASSY-FLOATING | |
| 4. | 39Q6-42140 | [1] | RING-NUT | |
| 5. | 39Q6-42150 | [1] | PLATE-LOCK | |
| 6. | S017-120166 | [4] | BOLT-HEX | |
| 7. | 39Q6-42160 | [1] | Perumahan | |
| 8. | S129-070206 | [20] | Bolt-Socket, bersatu | |
| 9. | 39Q6-42170 | [1] | Pergaulan | |
| K10. | 39Q6-42190 | [1] | Pengangkut 2 | |
| K11. | 39Q6-42200 | [4] | Gear-Planetary 2 | |
| K12. | 39Q6-42210 | [4] | Jaring-jarum 2 | |
| K13. | 39Q6-42220 | [8] | WASHER-THRUST 2 | |
| K14. | 39Q6-42230 | [4] | Pembawa PIN 2 | |
| K15. | S472-800164 | [4] | Pin-SPRING | |
| K16. | 39Q6-42350 | [4] | PIN-SOLID 2 | |
| 17. | 39Q6-42240 | [1] | Gear-SUN 2 | |
| K18. | 39Q6-42260 | [1] | Pengangkut 1 | |
| K19. | 39Q6-42270 | [3] | Gear-Planetary 1 | |
| K20. | 39Q6-42280 | [3] | Jarum bantalan 1 | |
| K21. | 39Q6-42290 | [6] | Kekuatan pencuci 1 | |
| K22. | 39Q6-42300 | [3] | PIN-CARRIER 1 | |
| K23. | S472-600364 | [3] | Pin-SPRING | |
| 24. | 39Q6-42310 | [1] | Gear-SUN 1 | |
| 25. | 39Q6-42320 | [1] | Plate-thrust | |
| 26. | 39Q6-42330 | [1] | PELUAR | |
| 27. | S109-16110D | [24] | BOLT-SOCKET | |
| 28. | P220-110205 | [3] | PLUG-HEX | |
| 29. | S602-035001 | [1] | Pengendalian cincin | |
| 30. | 39Q6-42341 | [1] | NAME PLATE (Plat Nama) | |
| 30. | 39Q6-42342 | [1] | NAME PLATE (Plat Nama) | |
| 30. | 39Q6-42342 | [1] | NAME PLATE (Plat Nama) | |
| 31. | 39Q6-41800 | [2] | RIVET | |
| 32. | S631-024001 | [3] | O-RING | |
| K. | 39Q6-42250 | [1] | Pengangkut ASSY KIT 1 | Lihat ILLUST |
| K. | 39Q6-42180 | [1] | Pengangkut ASSY KIT 2 | Lihat ILLUST |
| *-1. | @ | [1] | Unit Motor Perjalanan | SEE 4155 |
| K. | 39Q6-42250 | [1] | Pengangkut ASSY KIT 1 | Lihat ILLUST |
| K. | 39Q6-42180 | [1] | Pengangkut ASSY KIT 2 | Lihat ILLUST |
