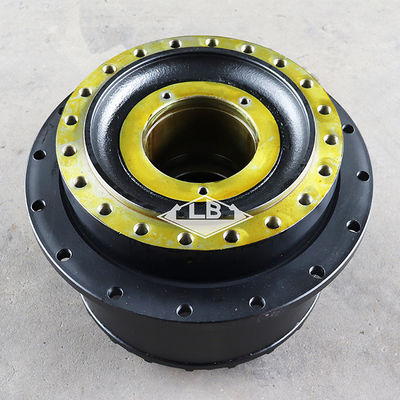

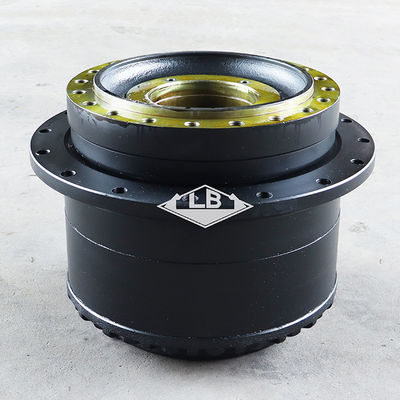

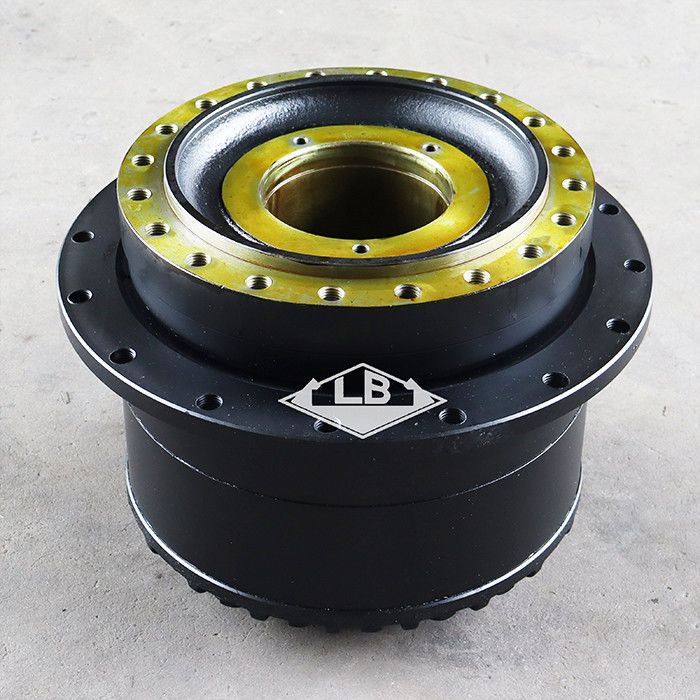

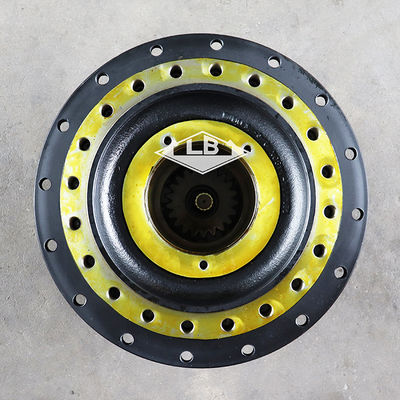

FINAL DRIVE E 330B E330B 114-1478 1141478 GEARBOX PERJALANAN E330B
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Gearbox Perjalanan,drive akhir,pendorong akhir hidrolik |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | E 330B Gearbox perjalanan | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 114-1478 | |||||
| Lubang rangka | 20 | |||||
| Lubang roda gigi | 16 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | ... | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian untuk Excavator 330B L Anda:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 114-1480 | [1] | Rumah-Motor | |
| 2. | 132-6141 | [1] | SEAL GP-DUO-CONE | |
| 9W-5976 | [2] | PENGELAMBANGAN cincin | ||
| 3. | 168-8453 | [2] | Bantalan bola | |
| 4. | 7Y-0644 | [1] | SPACER(163X190X8-MM THK) | |
| 5. | 7Y-0595 | [2] | SPACER(58X79.6X6-MM THK) | |
| 6. | 114-1541 | [6] | PIN-DOWEL | |
| 7. | 110-7234B | [1] | SHIM(0,15-MM) | |
| 110-7235B | [1] | SHIM(0,3-MM) | ||
| 110-7236B | [1] | SHIM(0,4-MM) | ||
| 110-7237B | [1] | SHIM(0,5-MM) | ||
| 110-7238B | [1] | SHIM(0,6-MM) | ||
| 110-7239B | [1] | SHIM(0,7-MM) | ||
| 110-7240B | [1] | SHIM(0,8-MM) | ||
| 110-7241B | [1] | SHIM(1-MM THK) | ||
| 110-7242B | [1] | SHIM(1,6-MM) | ||
| 8. | 6V-8133M | [10] | BOLT(M24X3X80-MM) | |
| 9. | 096-3216M | [2] | SETSCREW-SOCKET(M12X1.75X12-MM) | |
| 10. | 7Y-0662 | [3] | SHAFT-PLANETARY | |
| 11. | 7Y-0663 | [3] | Gear-planetary(20-TIH) | |
| 12. | 095-0891 | [6] | Pin-SPRING | |
| 13. | 7Y-1094M | [12] | PEMANAS(66X102X1-MM THK) | |
| 14. | 7Y-0659 | [3] | Gear-planetary(22-TEETH) | |
| 15. | 7Y-0661 | [3] | SHAFT-PLANETARY | |
| 16. | 110-7227 | [1] | Garis penghubung | |
| 17. | 2P-3628 | [1] | SEAL-O-RING | |
| 18. | 7Y-0642 | [1] | GANG-RING(63-TEETH) | |
| 19. | 110-7228 | [1] | Pembawa-Planetary | |
| 20. | 7Y-0639 | [1] | Gear-SUN(21-TEETH) | |
| 21. | 7Y-0645 | [1] | Pengangkut | |
| 22. | 110-7229 | [1] | GANG-RING | |
| 23. | 7M-8485 | [2] | SEAL-O-RING | |
| 24. | 3E-2338 | [2] | pipa colokan | |
| 25. | 110-7243 | [1] | CARRIER AS | |
| 7Y-0656 | [3] | SHAFT-PLANETARY | ||
| 26. | 7Y-0667 | [1] | Pengendalian cincin | |
| 27. | 093-1731 | [1] | Pengendalian cincin | |
| 28. | 110-7231 | [1] | Gear-SUN(18-TIH) | |
| 29. | 114-1479 | [1] | Perumahan | |
| 30. | 094-0577 | [1] | PELAT(7-MM THK) | |
| 31. | 110-7232 | [1] | Gear-SUN(18-TIH) | |
| 32. | 110-7233 | [3] | Gear-planetary(26-TEETH) | |
| 33. | 094-0584 | [6] | PEMANAS(40.3X72X1-MM THK) | |
| 34. | 8T-4240 | [3] | Pengendalian cincin | |
| 35. | 094-1516 | [3] | Berkas-Roller | |
| 36. | 9X-6032M | [12] | Kepala Bolt-Socket(M10X1.5X30-MM) | |
| 37. | 7Y-5235M | [20] | BOLT(M24X3X190-MM) | |
| 38. | 8T-4167 | [20] | Hard untuk mencuci(26X44X4-MM THK) | |
| 39. | 7Y-0646 | [1] | PELUAR | |
| 40. | 1U-8846B | [6] | SEALANT-GASKET | |
| 41. | 7Y-0664 | [9] | Bantalan AS-roller |
