Detail produk:

Harga terbaik Kontak

Informasi Detail
Menyoroti:

Gearbox Perjalanan

,

drive akhir

,

pendorong akhir hidrolik

Deskripsi Produk

Parameter produk
Pnama seni
 SK350-8 Gearbox perjalanan
Peralatan Mendaftar ke Kobelco EXKAVATOR
Bagian no. LC15V00023F1 LC15V00023F2R
Lubang rangka 18
Lubang roda gigi 26
Kondisi barang Baru
Logo LB
Berat kotor 350kg
MOQ 1 pcs


Deskripsi Produk

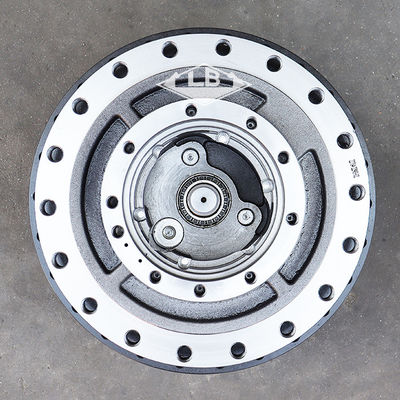

SK350-8 REVEL REDUCTION GEAR LC15V00023F1 LC15V00023F2R LC15V00023F2C SK350-8 TRAVEL GEARBOX untuk Penggali Kobelco 0

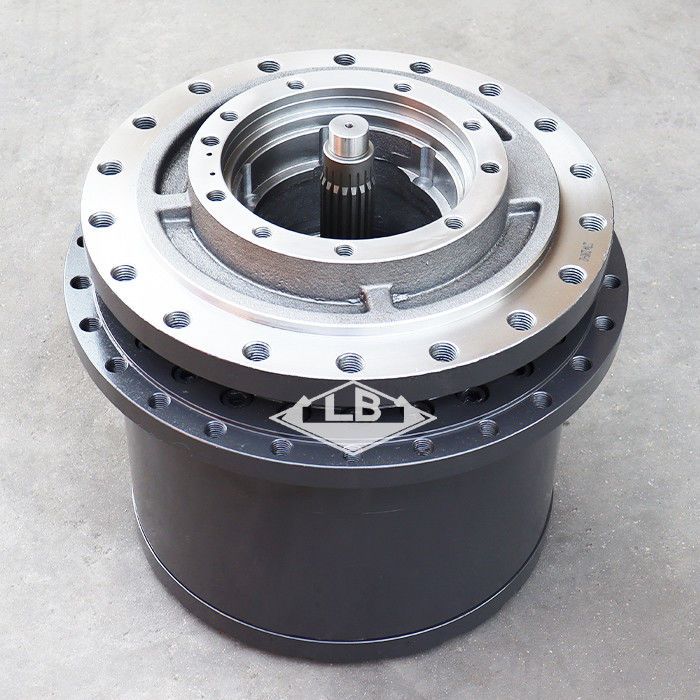

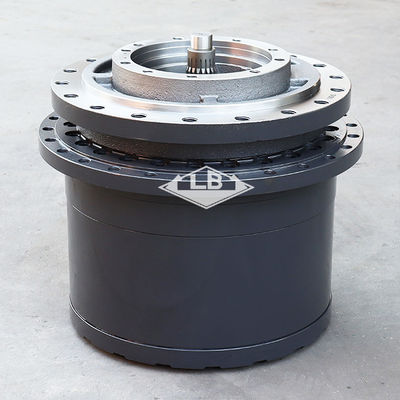

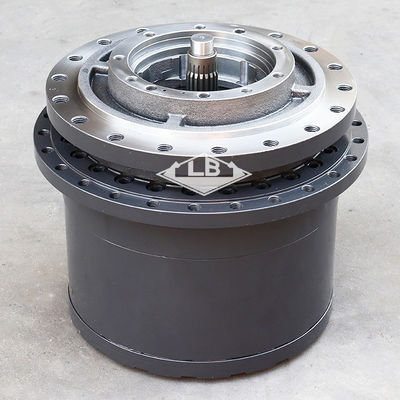

SK350-8 REVEL REDUCTION GEAR LC15V00023F1 LC15V00023F2R LC15V00023F2C SK350-8 TRAVEL GEARBOX untuk Penggali Kobelco 1SK350-8 REVEL REDUCTION GEAR LC15V00023F1 LC15V00023F2R LC15V00023F2C SK350-8 TRAVEL GEARBOX untuk Penggali Kobelco 2SK350-8 REVEL REDUCTION GEAR LC15V00023F1 LC15V00023F2R LC15V00023F2C SK350-8 TRAVEL GEARBOX untuk Penggali Kobelco 3

Posisi. Bagian No. Qty Nama bagian Komentar
. . LC15V00023F1 [1] Motor hidraulik KOBRakit, termasuk LC15V00026F1 -- Tidak Ditampilkan Digantikan oleh nomor bagian: LC15V00023F2
. . LC15V00023F2R [1] Motor REMAN-HYD KOBSK350-8 ACERA MARK 8 EXCAVATOR - TIER 3 ASN YC08U~ (NA) (10/06-), REMAN FOR NEW PN LC15V00023F1
. . LC15V00023F2C [1] CORE-MOTOR HYDRAULIC KOBNomor Pengembalian
. . LC15V00026F1 [1] Motor hidraulik KOBMotor hidraulik diganti dengan nomor bagian: LC15V00026F2
1. LC53D00007S018 [1] Perumahan KOB
2. 24100U1682S19 [2] Bantalan bola KOB
3. LC53D00007S017 [1] Gear KOBRING
4. ZS23C18110 [25] Sekrup, Kepala Soket Hex, M18 x 110mm KOBM18x2,50x110mm
5. 24100U1743S24 [1] SEAL KOB
6. 24100U1682S20 [1] SHIM KOB
7. 24100U1682S21 [2] PENGEMAS KELUAR KOB
8. 24100U1682S22 [1] RING KOB
9. LC53D00007S011 [1] Pengangkut KOB
10. LC15V00023S010 [3] Peralatan planet KOB
11. LC53D00007S016 [6] PEMANAS KOBDorongan
12. LC15V00023S012 [3] Keterangan: KOBJarum
13. LC53D00007S012 [3] Pengangkut KOB
14. ZP26D10050 [3] PIN KOBSPRING
15. LC15V00023S015 [1] Gear KOBMatahari
16. LC53D00007S002 [1] Pengangkut KOB
17. LC15V00023S017 [3] Peralatan planet KOB
18. LC53D00007S005 [6] PEMANAS KOBDorongan
19. LC15V00023S019 [3] Keterangan: KOBJarum
20. LC53D00007S003 [3] PIN KOB
21. ZP26D06036 [3] PIN KOBRoll -- OD 06 x 36mm Panjang
22. LC15V00023S022 [1] Gear KOBMatahari
23. LQ15V00005S008 [1] PELAT KOB
24. LC15V00023S024 [1] PELUAR KOB
25. ZS28C10030 [18] Screw, Hex Socket Head, M10 x 30mm KOBM10x1,50x30mm
26. YR30V00001S116 [2] PLUG KOB
27. ZD12P02400 [2] O-RING KOBID 23,70 ± 0,24 x OD 30mm
28. LC15V00023S028 [1] Pengadilan KOB
29. LC15V00023S029 [1] PLUG KOB
30. 2441U1040S27 [1] RING KOB
31. 2441U1040S19 [1] PELUAR KOB
32. 2436U1749S17 [1] PLUG KOB
33. NSS [1] TIDAK DIJUAL SEPARAT CONPiston
34. NSS [1] TIDAK DIJUAL SEPARAT CONSEAL, PISTON
35. LC15V00023S035 [1] Bola KOB
36. 2441U1040S9 [1] SHAFT KOB
37. 2441U1040S31 [1] ROLLER BEARING KOB
38. NSS [2] TIDAK DIJUAL SEPARAT CONPIVOT
39. NSS [1] TIDAK DIJUAL SEPARAT CONPlat, Sepatu
40. LC15V00023S040 [1] Blok KOBSilinder
41. 2441U1030S29 [9] SPRING KOB
42. LC15V00023S042 [1] Pemegang KOB
43. LC15V00021S024 [1] BALL JOINT KOB
44. LC15V00021S004 [1] Pengendali KOBSepatu
45. GK15V00003S014 [9] Piston KOBASSY
46. 2441U1040S7 [1] PELAT KOBSeparator
47. 2441U1040S5 [6] PELAT KOB
48. 2441U1040S6 [1] Piston KOB
49. LS15V00004S052 [1] O-RING KOBO-RING
50. LS15V00004S053 [1] O-RING KOB
51. LC15V00023S051 [1] PELUAR KOB
52. 2436U1427S25 [14] PLUG KOB
53. LC15V00023S053 [1] SPOOL KOB
54. LC15V00023S054 [2] Tempat duduk SPRING KOB
55. YN15V00017S053 [2] SPRING KOB
56. LC15V00023S056 [2] PELUAR KOB
57. ZD12G04000 [2] O-RING,39.40mm ID x 45.60mm OD x 3.10mm KOBID 39,40 ± 0,37 x OD 45mm
58. LC15V00023S058 [1] SPOOL KOB
59. 2436R874S6 [1] PIN KOB
60. 2436R874S5 [1] Tempat duduk SPRING KOB
61. 2436R874S7 [1] SPRING KOB
62. LC15V00023S062 [1] PLUG KOB
63. ZD12P01400 [2] O-RING KOBID 13,80 ± 0,19 x OD 18mm
64. 2436R874S3 [1] Fleksibel sendi KOB
65. 2436U1317S13 [2] PLUG KOB
66. ZD12P01100 [2] O-RING KOBID 10,8mm x OD 13,2mm
67. LC15V00023S067 [2] PENGHATAN KOB
68. LC15V00023S068 [2] SPRING KOB
69. YN15V00017S038 [5] PLUG KOB
70. ZD12P00800 [5] O-RING,1.9mm Thk x 7.8mm ID, 90 Duro KOBID 7,8mm x OD 9,7mm
71. YN15V00017S017 [3] VALVE CEK KOB
72. YN15V00017S026 [3] SPRING KOB
73. GN15V00010S024 [2] PENGHATAN KOB
74. ZD12P01250 [1] O-RING KOBID 12,3mm X OD 14,7mm
75. GN15V00010S025 [1] PENGHATAN KOB
76. ZD12P01500 [1] O-RING KOBID 14,80 ± 0,20 x OD 19mm
77. 2441U1040S40 [1] O-RING KOB
78. 2441U1040S32 [1] ROLLER BEARING KOB
79. LS15V00014S033 [2] SHIM KOBDigantikan dengan nomor bagian: 2441U1040S34
80. 2441U1040S35 [1] PIN KOB
81. LC15V00021S008 [1] PELAT KOBVALVE
82. YN15V00003S030 [10] SPRING KOB
83. ZS23C18050 [10] Screw, Hex Socket Head, M18 x 50mm KOBM18x2.50x50mm
84. LC22V00006F1 [2] VALVE KOBASSY, Overload Relief Lihat ((HC385)
85. 2441U1040S10 [1] TEMPAT PEMANGKAT KOB
86. ZR26X04000 [1] RING KOBPengendalian -- ID 40 x OD 43,5 x Th 1,8 mm
87. YR30V00001S115 [2] PLUG KOB
88. ZD12P01800 [2] O-RING KOBID 17,8mm x OD 20,2mm
K. LC15V00023R100 [1] KIT SMRef 33x1 34x1
K. LC15V00023R200 [1] KIT SMRef 38x2 39x1
K. LC15V00023R300 [1] KIT SMRef 46x7 47x6
