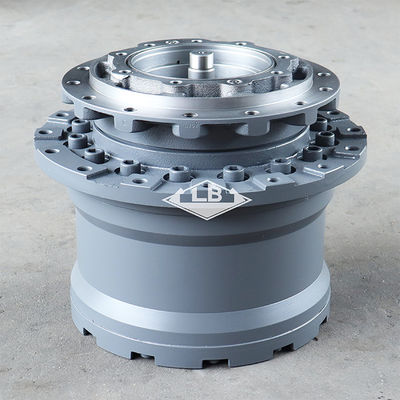

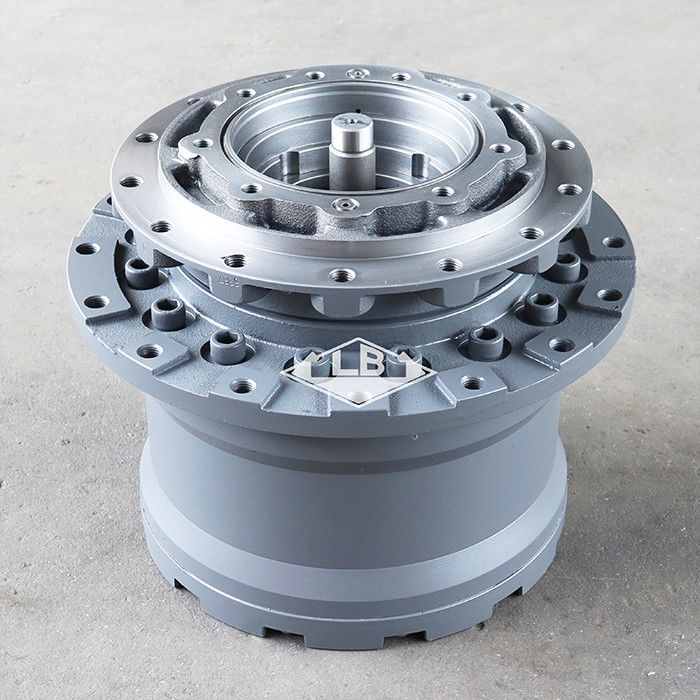

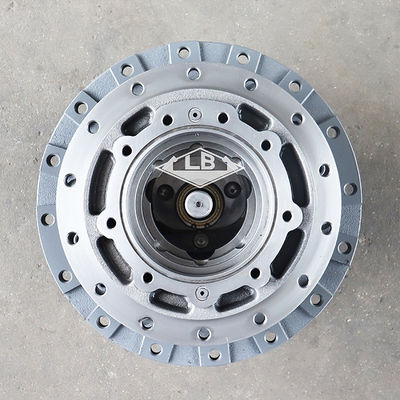

HITACHI ZX120 9180731 9181123 Perangkat perjalanan ZX120 Gearbox perjalanan
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Hitachi 9261222,Gearbox perjalanan Hitachi |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | ZX120 Travel gearbox | |||||
| Peralatan | Mendaftar untuk HITACHI EXKAVATOR | |||||
| Bagian no. | 9180731 9181123 | |||||
| Lubang rangka | 14 | |||||
| Lubang roda gigi | 16 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 160 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk

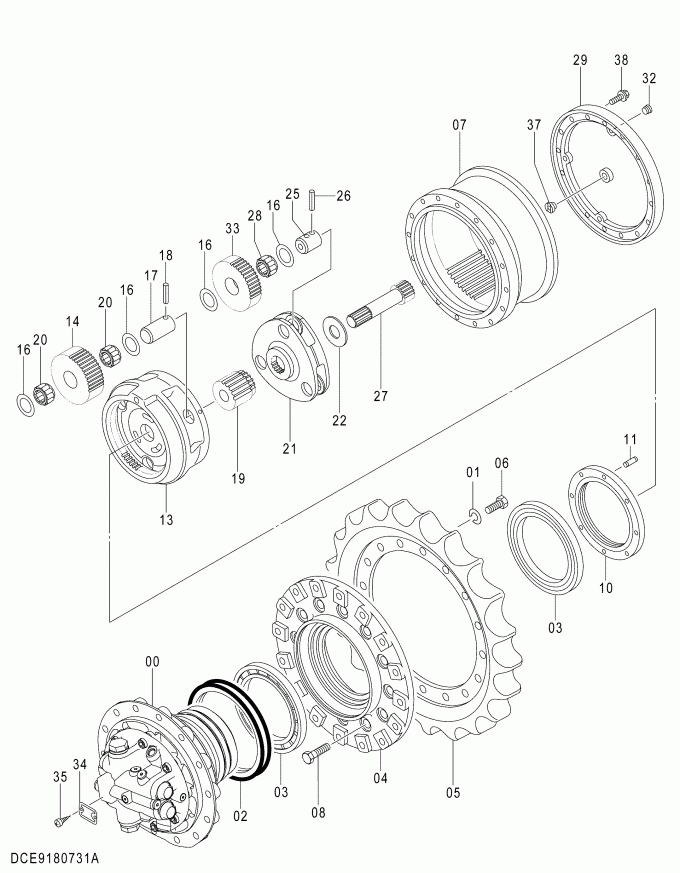

seni pada kelompok TRAVEL DEVICE:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 9180731 | [2] | Perangkat Perjalanan ASS'Y | Aku 9181123 (untuk perakitan mesin) | |
| 9181123 | [2] | Perangkat Perjalanan ASS'Y | (untuk transportasi) | |
| 00. | 9180429 | [1] | MOTOR OIL | Aku 9196238 (untuk perakitan mesin) |
| 00. | 9196238 | [1] | MOTOR OIL | (untuk transportasi) |
| 01. | A590916 | [16] | PEMANAS;SEMBAH | |
| 02. | 4110369 | [1] | SEAL; GROUP | |
| 03. | 4321887 | [2] | BRG.; ROL. | |
| 04. | 1016125 | [1] | Drum | |
| 05. | 1010325 | [1] | SPROCKET | |
| 06. | J931640 | [16] | BOLT | T J931645 |
| A590916 | ||||
| 06. | J931645 | [16] | BOLT | |
| 07. | 1027082 | [1] | Gear;RING | |
| 08. | J931660 | [16] | BOLT | |
| 10. | 3085728 | [1] | NUT | |
| 11. | 4436242 | [1] | PIN;TEKAN | |
| 13. | 1027076 | [1] | Pengangkut | |
| 14. | 3085566 | [3] | Gear;Planetary | |
| 16. | 4192982 | [12] | PLATE;THRUST | |
| 17. | 4245966 | [3] | PIN | |
| 18. | 4144020 | [3] | PIN;SPRING | |
| 19. | 3085569 | [1] | Gear;SUN | |
| 20. | 4442789 | [6] | BRG.; jarum | Y 4354289 |
| 20. | 4354289 | [6] | BRG.; jarum | |
| 21. | 2043774 | [1] | Pengangkut | |
| 22. | 4418771 | [1] | SPACER | |
| 25. | 4178203 | [3] | PIN | |
| 26. | 4192020 | [3] | PIN;SPRING | |
| 27. | 2043769 | [1] | SHAFT;PROP. | |
| 28. | 4442788 | [3] | BRG.; jarum | Y 4354278 |
| 28. | 4354278 | [3] | BRG.; jarum | |
| 29. | 2028800 | [1] | PELUAR | |
| 32. | 4245797 | [3] | PLUG | |
| 33. | 3085568 | [3] | Gear;Planetary | Y 3094907 |
| 33. | 3094907 | [3] | Gear;Planetary | |
| 34. | 3053559 | [1] | NAME-PLATE | |
| 35. | M492564 | [2] | Screw; Drive | |
| 37. | 4258916 | [1] | PIN;STOPPER | Y 4631350 |
| 37. | 4631350 | [1] | PIN;STOPPER | |
| 38. | J011230 | [12] | BOLT;SEMS | Aku 4609016 |
| 38. | 4609016 | [12] | BOLT;SEMS | Y 4699148 |
| 38. | 4699148 | [12] | BOLT;SEMS |
