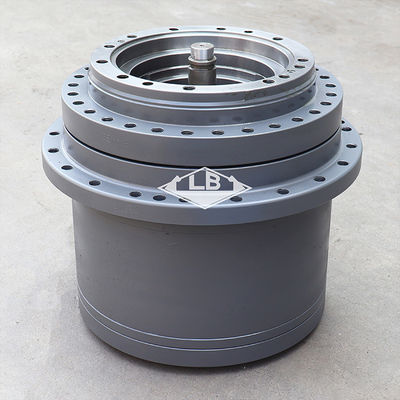

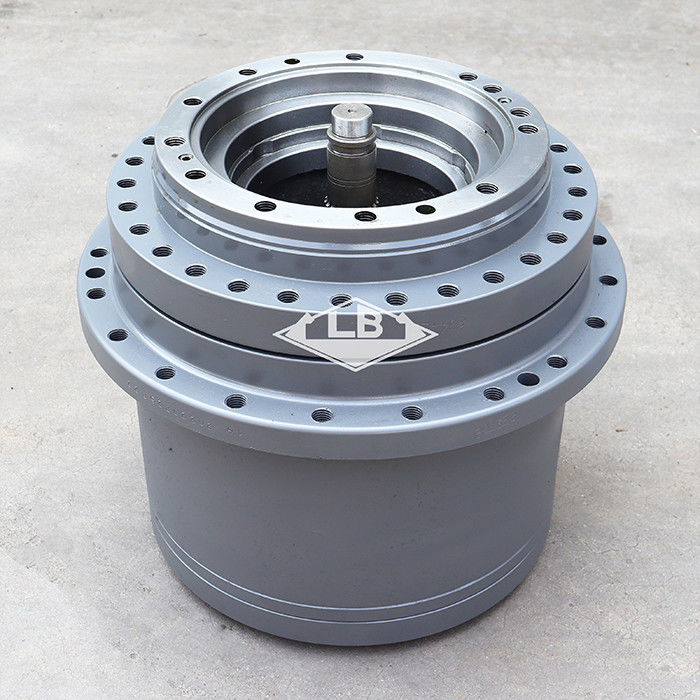

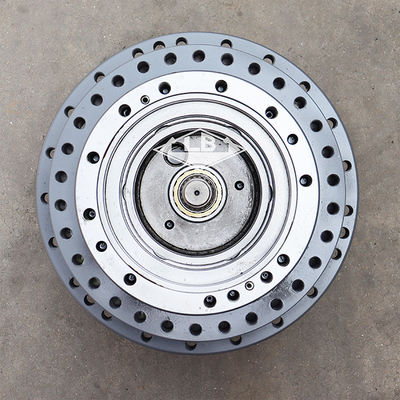

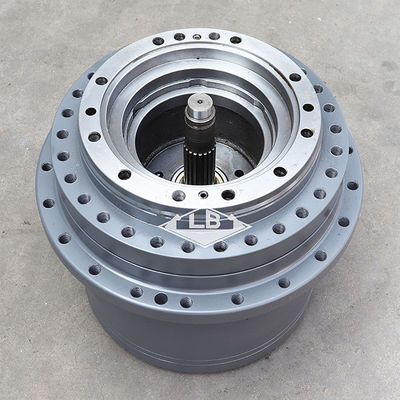

R140-7 R160-7 Gear REDUCTION TRAVEL XKAH-00367 R140-7 Gearbox perjalanan
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Gearbox Perjalanan,drive akhir,pendorong akhir hidrolik |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | R140-7 R160-7Kotak gear perjalanan | |||||
| Peralatan | Mendaftar untuk HYUNDAI EXKAVATOR | |||||
| Bagian no. | XKAH-00367 | |||||
| Lubang rangka | 30 | |||||
| Lubang roda gigi | 21 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 205 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian pada kelompok GERRY REDUCTION TRAVEL ((TYPE 1):
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| * | @ | [1] | MOTOR perjalanan | *-1,*-2 |
| *-1. | XKAH-00367 | [1] | REDUCTION GEAR ASSY | |
| *-11. | XKAH-00368 | [1] | Hub ASSY | |
| 1. | XKAH-00364 | [1] | Hub | |
| 4. | XKAH-00363 | [1] | GANG-RING ((A) | |
| *-12. | XKAH-00369 | [1] | KIT spindle | |
| *-12A. | XKAH-00362 | [1] | Spindle ASSY | |
| N2. | XKAH-00361 | [1] | Spindle | |
| N8. | XKAH-00360 | [1] | GANG-CUPLING | |
| 17. | XKAH-00334 | [10] | PIN-PARALEL | |
| 35. | XKAH-00359 | [10] | BOLT-SOCKET | |
| *-13. | XKAH-00358 | [1] | KIT CARRIER | |
| *-13A. | XKAH-00357 | [1] | Pengangkut ASSY | |
| 3. | XKAH-00356 | [1] | Pengangkut | |
| 6. | XKAH-00355 | [3] | GAR-CLUSTER | |
| 9. | XKAH-00354 | [3] | SHAFT-CLUSTER | |
| 14. | XKAH-00353 | [6] | KEKERJAAN KOLER | |
| 25. | XKAH-00352 | [6] | Jaring bantalan | |
| 34. | XKAH-00351 | [3] | PIN-PARALEL | |
| 5. | XKAH-00350 | [1] | GANG-RING ((B) | |
| 7. | XKAH-00349 | [1] | Gear-SUN | |
| 12. | XKAH-00348 | [1] | Jarak SETELAH | |
| 13. | XKAH-00347 | [1] | PELUAR | |
| 15. | XKAH-00346 | [1] | RING | |
| 19. | XKAH-00345 | [1] | Pergaulan | |
| 20. | XKAH-00344 | [2] | Plate-thrust | |
| 23. | XKAH-00343 | [1] | RING-SEAL | |
| *-14. | XKAH-00342 | [1] | KIT SEAL Terapung | |
| N31. | XKAH-00341 | [2] | SEAL-FLOATING | |
| 24. | XKAH-00340 | [2] | Beras-A/Ball | |
| 27. | XKAH-00339 | [10] | PIN-PARALEL | |
| 28. | XKAH-00194 | [2] | O-RING | |
| 29. | XKAH-00028 | [1] | O-RING | |
| 30. | XKAH-00338 | [3] | PLUG-PT | |
| 32. | XKAH-00337 | [20] | BOLT | |
| 33. | XKAH-00336 | [20] | PEMBAHASAN-PEMBUAT | |
| 36. | XKAH-00033 | [1] | Baja bola | |
| 40. | XKAH-00335 | [1] | O-RING | |
| 42. | XKAH-00034 | [2] | PIN-PARALEL | |
| N*-2. | XKAH-00333 | [1] | Unit Kontrol | |
| N*-3. | XKAH-00322 | [1] | Unit Motor Perjalanan | |
| *-4. | XKAH-00097 | [1] | KIT Klep RELIEF | |
| K. | XKAH-00366 | [1] | SEAL KIT | Lihat ILLUST |
| N. | @ | [1] | Bagian-bagian yang tidak disuplai |
