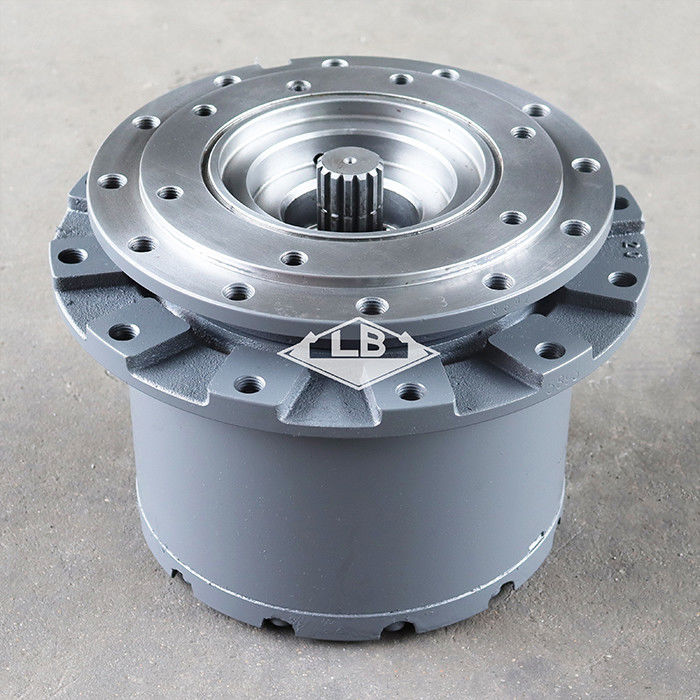

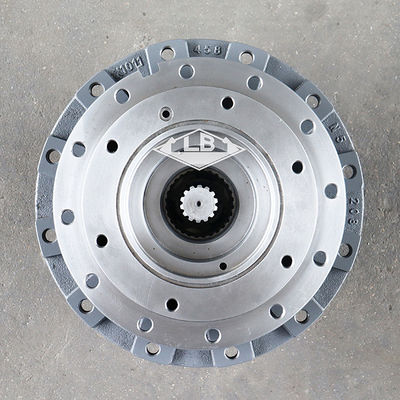

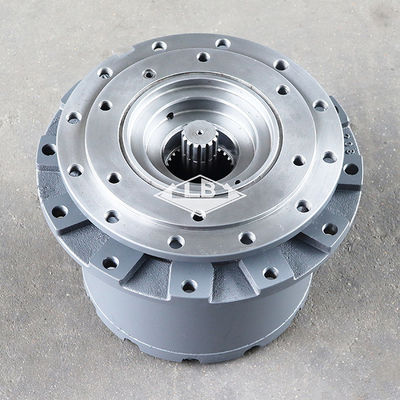

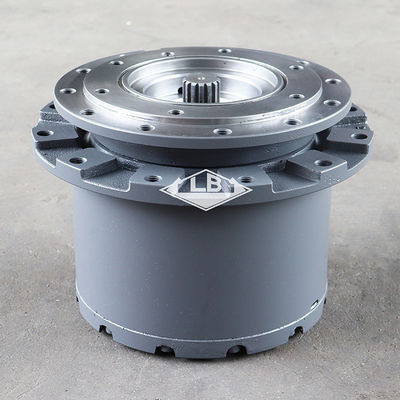

EX60 EX60-1 REDUCER Perjalanan 9069295 9096479 9138927 Perangkat Perjalanan EX60-1 KONTRA PENGERANTAS Perjalanan
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Gearbox Perjalanan,drive akhir,pendorong akhir hidrolik |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | EX60-1 Gearbox perjalanan | |||||
| Peralatan | Mendaftar untuk HITACHI EXKAVATOR | |||||
| Bagian no. | 9069295 9096479 9138927 | |||||
| Lubang rangka | 12 | |||||
| Lubang roda gigi | 12 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 90 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian pada kelompok Perangkat Perjalanan:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 00. | 9069509 | [1] | MOTOR OIL | Aku 9123069 |
| 00. | 9123069 | [1] | MOTOR OIL | Y 9138838 |
| 00. | 9138838 | [1] | MOTOR OIL | |
| 00-49. | 9069295 | [2] | Perangkat Perjalanan ASS'Y | Y 9096479 |
| 00-54. | 9096479 | [2] | Perangkat Perjalanan ASS'Y | Aku 9138927 |
| 00-54. | 9138927 | [2] | Perangkat Perjalanan ASS'Y | |
| 01. | 1011457 | [1] | Perumahan | |
| 02. | 4092443 | [1] | SPACER | |
| 03. | 991726 | [1] | RING;RETENING | |
| 04. | 4148014 | [2] | BRG.;ROL | |
| 05. | 4092483 | [1] | SEAL; GROUP | |
| 06. | 1011458 | [1] | Drum | |
| 07. | 1010447 | [1] | SPROCKET | |
| 08. | J931635 | [12] | BOLT | Y J931640 |
| 08. | J931635 | [12] | BOLT | |
| 08. | J931640 | [12] | BOLT | Y J931635 |
| 09. | A590916 | [12] | PEMANAS;SEMBAH | |
| 11. | 2023132 | [1] | Gear;RING | |
| 12. | 3027147 | [1] | NUT | |
| 13. | 4148012 | [1] | PIN;TEKAN | |
| 16. | 2023175 | [1] | Pengangkut | |
| 17. | 3027146 | [1] | Gear;SUN | |
| 18. | 959499 | [1] | RING;RETENING | |
| 19. | 3027148 | [3] | Gear;Planetary | |
| 20. | 4177007 | [3] | BRG.; jarum | |
| 21. | 4192910 | [6] | PLATE;THRUST | |
| 22. | 4178202 | [3] | PIN | |
| 23. | 4169566 | [3] | PIN;SPRING | |
| 23. | 4173093 | [3] | PIN;SPRING | Y 4169566 |
| 25. | 1010450 | [1] | Pengangkut | |
| 26. | 3027149 | [3] | Gear;Planetary | |
| 27. | 4148013 | [3] | BRG.; jarum | |
| 28. | 4148016 | [3] | PIN | |
| 29. | 4144017 | [3] | PIN;SPRING | |
| 30. | J011230 | [12] | BOLT;SEMS | |
| 30. | M221232 | [12] | BOLT | Aku J011230 |
| 31. | A590912 | [12] | PEMANAS;SEMBAH | |
| 33. | 4245797 | [3] | PLUG | |
| 33. | 94-2013 | [2] | PLUG | |
| 33. | 94-2013 | [3] | PLUG | Y 4245797 |
| 34. | 4148080 | [6] | PLATE;THRUST | |
| 35. | 2017872 | [1] | SHAFT;PROP. | |
| 36. | 4092444 | [1] | SPACER | |
| 37. | 3036156 | [6] | PELAT | T 3070674 |
| 37. | 3036156 | [6] | PELAT | T 3070675 |
| 37. | 3070675 | [6] | PELAT | |
| 38. | 3036157 | [5] | PLATE; FRIXION | T 3070674 |
| 38. | 3036157 | [5] | PLATE; FRIXION | T 3070675 |
| 38. | 3070674 | [5] | PLATE; FRIXION | |
| 39. | 3036158 | [1] | Piston | |
| 40. | 4092712 | [1] | D-RING | |
| 41. | 4092713 | [1] | D-RING | |
| 42. | 3017067 | [1] | SPRING;DISC | |
| 44. | 4154877 | [1] | O-RING | |
| 45. | 957366 | [1] | O-RING | |
| 46. | 929231 | [1] | RING | |
| 47. | 94-2010 | [1] | PLUG | |
| 48. | 4192042 | [6] | BOLT;SOCKET | |
| 49. | A590914 | [6] | PEMANAS;SEMBAH | |
| 53. | M492564 | [2] | Screw; Drive | |
| 54. | 3053559 | [1] | NAME-PLATE | Y 3071686 |
| 54. | 3071686 | [1] | NAME-PLATE | (Untuk TRANSMISI) |
| 60. | J931650 | [24] | BOLT | |
| 61. | A590916 | [24] | PEMANAS;SEMBAH |
