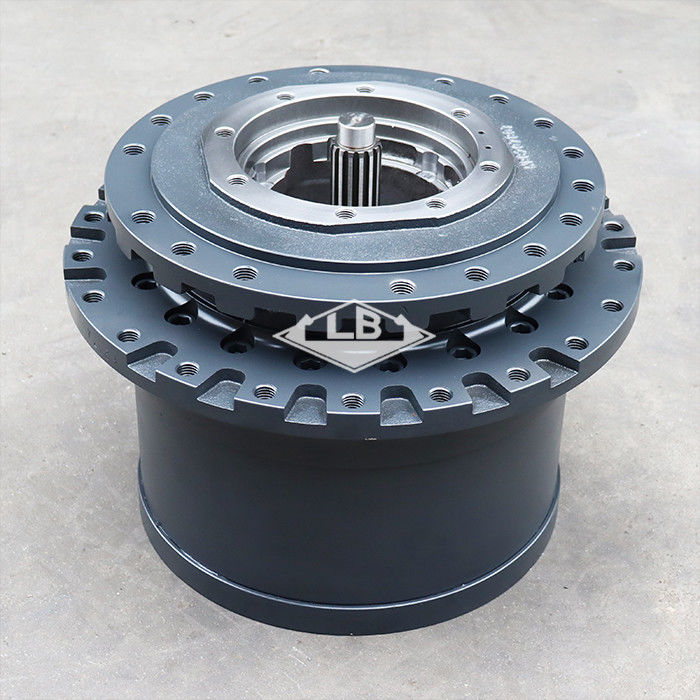

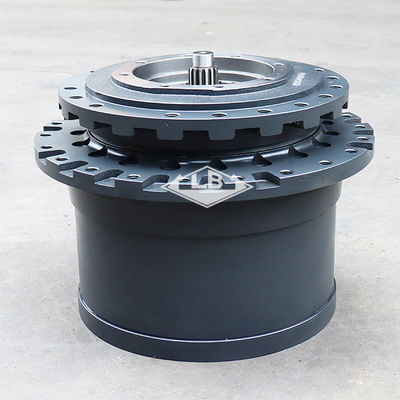

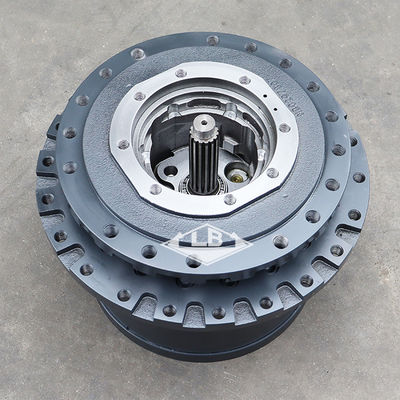

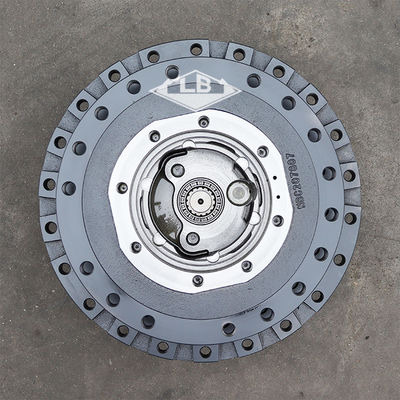

SK200-6 ED150 PEREDAM MOTOR PERJALANAN YN53D00008F1 YN53D00008F2 YN53D00008F3 SK200-6 GEARBOX PERJALANAN
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Gearbox Perjalanan,drive akhir,pendorong akhir hidrolik |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | SK200-6 Gearbox perjalanan | |||||
| Peralatan | Mendaftar ke Kobelco EXKAVATOR | |||||
| Bagian no. | YN53D00008F1 YN53D00008F2 YN53D00008F3 | |||||
| Lubang rangka | 17 | |||||
| Lubang roda gigi | 22 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | ... | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| . . | YN53D00008F1 | [1] | Motor hidraulik | KOB(PROPELLING) Digantikan oleh nomor bagian: YN53D00008F3 |
| . . | YN53D00008F2 | [1] | REDUCER | KOBASSY (PROPELLING) Digantikan oleh nomor bagian: YN53D00008F3 |
| . . | YN53D00008F3 | [1] | Motor hidraulik | KOBREDUCTION ASSY (PROPELING) |
| 1. | YN53D00008S001 | [1] | PELUAR | KOB |
| 2. | YN53D00008S002 | [1] | Pengedar rotor | KOB(Hanya F1) |
| 3. | YN53D00008S003 | [3] | PIN | KOB(Hanya F1) |
| 4. | LQ15V00005S004 | [3] | Keterangan: | KOBJarum |
| 5. | YN53D00008S005 | [6] | PEMANAS | KOB |
| 6. | YN53D00008S006 | [3] | Gear | KOBPlanetary |
| 7. | ZP26D04022 | [3] | PIN | KOBSPRING (Hanya F1) |
| 8. | LQ15V00005S008 | [1] | PELAT | KOBDorongan |
| 9. | YN53D00008S009 | [1] | Gear | KOBMatahari |
| 10. | YN53D00008S010 | [1] | Gear | KOBMatahari |
| 11. | YN53D00008S011 | [1] | SHAFT, PLANETAR CAR | KOBRotor (Hanya F1) |
| 12. | YN53D00008S012 | [3] | PIN | KOB(Hanya F1) |
| 13. | YN53D00004S013 | [3] | Keterangan: | KOBJarum |
| 14. | YN53D00008S014 | [3] | Gear | KOBPlanetary |
| 15. | ZP26D06036 | [3] | PIN | KOBRoll, OD 06 x 36mm Panjang (Hanya F1) |
| 16. | YN53D00008S016 | [6] | PENGURUS TEKAN | KOB |
| 17. | YN53D00008S017 | [1] | Gear | KOBRING |
| 18. | YN53D00008S018 | [1] | Perumahan | KOB(Hanya F1, F2) |
| 19. | YN53D00008S019 | [2] | Keterangan: | KOB |
| 20. | YN53D00008S020 | [1] | SHIM | KOB |
| 21. | YN53D00008S021 | [2] | PEMANAS | KOB |
| 22. | YN53D00004S022 | [1] | RING | KOB |
| 23. | YN53D00008S023 | [1] | SEAL | KOBMengambang |
| 24. | ZS23C10025 | [15] | Screw, Hex Socket Head, M10 x 25mm | KOBM10 x 1,50 x 25mm Digantikan oleh nomor bagian: ZS28C10025 |
| 25. | ZS23C16080 | [19] | Capscrew, Hex Socket Head, M16 x 80mm | KOBTEKAN M16 x 2,0 x 80mm (HANYA F1, F2) |
| 26. | ZE82T12000 | [2] | PLUG | KOB3/4 " PT |
| 27. | YN53D00008S027 | [1] | Rotor | KOB(Hanya F2, F3) |
| 28. | YN53D00008S028 | [3] | PIN | KOB(Hanya F2, F3) |
| 29. | ZP26D05032 | [3] | PIN | KOBSpring (Hanya F2, F3) |
| 30. | YN53D00008S030 | [1] | Rotor | KOB(Hanya F2, F3) |
| 31. | YN53D00008S031 | [3] | PIN | KOBSPRING (F2, F3 saja) |
| 32. | ZP26D08040 | [3] | PIN | KOBSPRING (F2, F3 saja) |
| 33. | YN53D00008S033 | [1] | Perumahan | KOBHOUSING (F3 ONLY) Digantikan oleh nomor bagian: YN53D00008S018 |
| 34. | ZS23C16090 | [19] | Sekrup, kepala Hex Socket, M16 x 90mm | KOBM16 x 2,0 x 90mm (Hanya F3) |
| . . | YN53D00008R100 | [1] | KIT | KOBPerbaikan, KONSIS REF. 4 ((3), 5 ((6), 6 ((3), 27 ((1), 28 ((3), 29 ((3) (F2, F3 saja) |
| . . | YN53D00008R200 | [1] | Kit Perbaikan | KOBREF. 13(3), 14(3), 16(6), 30(1), 31(3), 32(3) (F2, F3 saja) |
