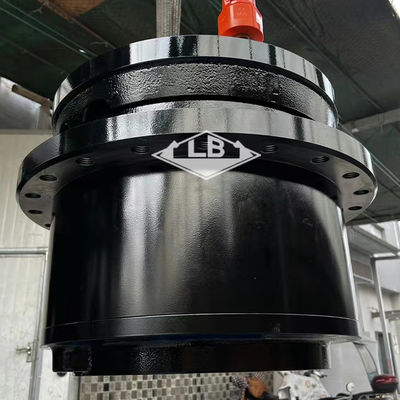

E Asli NEW E374F E374D FINAL DRIVE 513-0384 513-0387 513-0833 513-0836 315-4480 E 374 Gearbox Perjalanan
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Gearbox Perjalanan,drive akhir,pendorong akhir hidrolik |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | E 374 Gearbox perjalanan | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 513-0834 | |||||
| Lubang rangka | ... | |||||
| Lubang roda gigi | ... | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 730 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian untuk 374F EXCAVATOR Anda:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 7Y-0808B | [1] | SHIM(1.6-MM THK) | |
| 2. | 7Y-1469 | [1] | Pergaulan | |
| 3. | 7Y-1493 | [1] | SPACER(8,7X50X14-MM THK) | |
| 4. | 136-2920 | [1] | PELUAR | |
| 5. | 136-2921 | [1] | Gear-SUN(22-TEETH) | |
| 6. | 136-2922 | [1] | Gear-SUN(19-TIH) | |
| 7. | 136-2923 | [1] | Gear-SUN(20-TIH) | |
| 8. | 136-2924 | [3] | Gear-planetary(31-TEETH) | |
| 9. | 136-2925 | [3] | Gear-planetary(23-TEETH) | |
| 10. | 136-2926 | [4] | Gear-planetary(22-TEETH) | |
| 11. | 136-2927 | [1] | GANG-RING(86-TEETH) | |
| 12. | 136-2928 | [1] | GANG-RING(68-TEETH) | |
| 13. | 136-2930 | [1] | Pembawa-Planetary | |
| 14. | 136-2932 | [3] | SHAFT-PLANETARY | |
| 15. | 136-2933 | [4] | SHAFT-PLANETARY | |
| 16. | 136-2934 | [1] | CARRIER AS | |
| 136-2931 | [3] | SHAFT-PLANETARY | ||
| 17. | 136-2943 | [1] | Pengendalian cincin | |
| 18. | 136-2945 | [1] | SPACER(203X233X8.5-MM THK) | |
| 19. | 136-2947 | [1] | Pembawa-Planetary | |
| 20. | 136-2948 | [6] | PIN-DOWEL | |
| 21. | 136-2949 | [1] | GANG-CUPLING(83-TEETH) | |
| 22. | 199-4728 | [1] | Perumahan(SPROCKET) | |
| 23. | 214-7880 | [1] | SEAL GP-DUO-CONE | |
| 214-7879 | [2] | RING-TORIC | ||
| 24. | 451-2178 | [18] | Hard untuk mencuci(33X56X6-MM THK) | |
| 25. | 452-3523 | [1] | Rumah-Motor | |
| 26. | 453-4193M | [18] | BOLT(M30X3.5X260-MM) | |
| 27. | 094-0584 | [6] | PEMANAS(40.3X72X1-MM THK) | |
| 28. | 096-3216M | [2] | SETSCREW-SOCKET(M12X1.75X12-MM) | |
| 29. | 099-5194 | [1] | Pin-SPRING | |
| 30. | 136-2944 | [2] | SPACER(61X95.1X10-MM THK) | |
| 31. | 136-2946 | [3] | Berkualitas tinggi | |
| 32. | 136-2959B | [1] | SHIM(0.3-MM THK) | |
| 136-2962B | [1] | SHIM(0.6-MM THK) | ||
| 136-2963B | [1] | SHIM(0.7-MM THK) | ||
| 136-2964B | [1] | SHIM(0.8-MM THK) | ||
| 136-2965B | [1] | SHIM(1-MM THK) | ||
| 136-2966B | [1] | SHIM(1.6-MM THK) | ||
| 37. | 163-1656 | [2] | TAPERED KONUS-SPECIAL | |
| 38. | 163-1657 | [2] | CUP-SPECIAL TAPERED | |
| 40. | 136-2967 | [1] | SEAL-O-RING | |
| 41. | 3E-2338 | [2] | pipa colokan | |
| 42. | 4I-7576 | [14] | PEMANAS(66.3X104X3-MM THK) | |
| 43. | 7M-8485 | [2] | SEAL-O-RING | |
| 44. | 7Y-0667 | [1] | Pengendalian cincin | |
| 45. | 7Y-0912 | [11] | Bantalan AS-roller | |
| 46. | 173-9683M | [10] | BOLT(M30X3.5X90-MM) | |
| 47. | 8T-3957M | [12] | Kepala Bolt-Socket(M12X1.75X30-MM) | |
| 48. | 8T-4240 | [3] | Pengendalian cincin |
