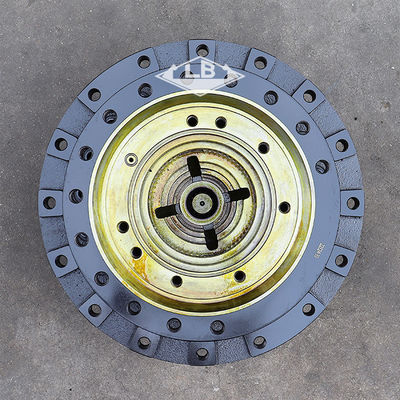

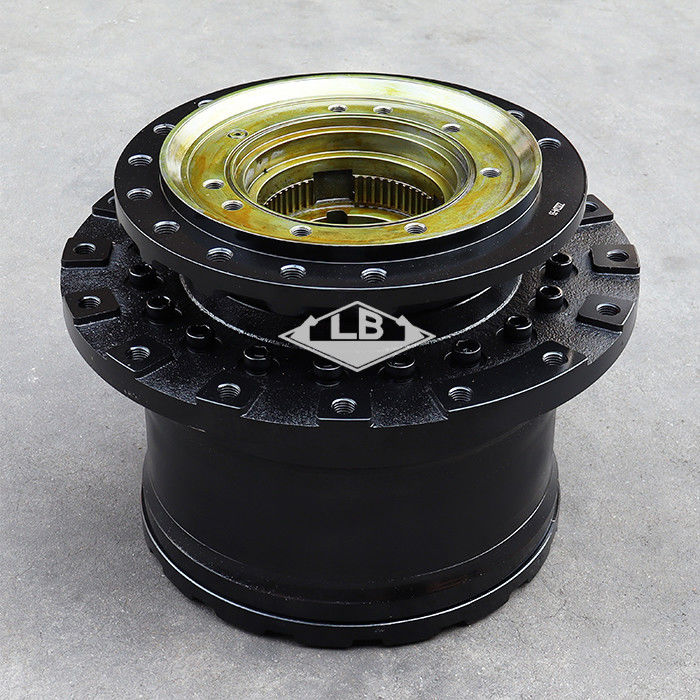

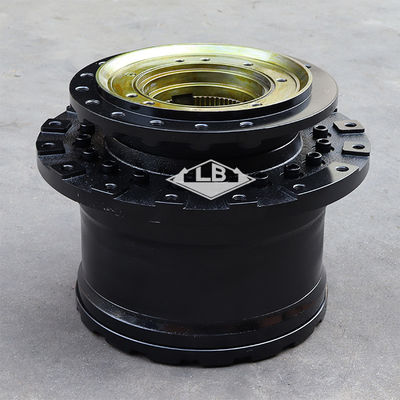

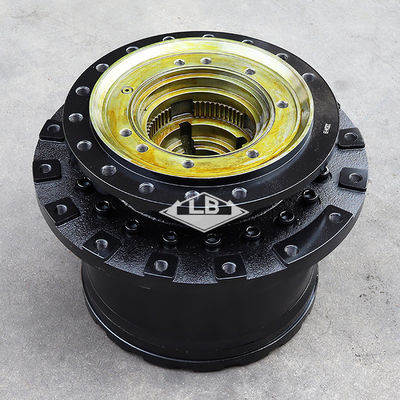

EX200-2 Perangkat Perjalanan 9091681 9116392 9116393 EX200-2 Gearbox Perjalanan
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Gearbox Perjalanan,drive akhir,pendorong akhir hidrolik |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | EX200-2 Gearbox perjalanan | |||||
| Peralatan | Mendaftar untuk HITACHI EXKAVATOR | |||||
| Bagian no. | 9091681 9116392 9116393 | |||||
| Lubang rangka | 14 | |||||
| Lubang roda gigi | 16 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 160 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian pada kelompok Perangkat Perjalanan:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 01-4. | 9091681 | [2] | Perangkat Perjalanan ASS'Y | |
| 01-4. | 9116392 | [2] | Perangkat Perjalanan ASS'Y | |
| 01-4. | 9116393 | [2] | Perangkat Perjalanan ASS'Y | |
| 01. | 9101523 | [1] | MOTOR OIL | |
| 01. | 9116388 | [1] | MOTOR OIL | |
| 01. | 9116390 | [1] | MOTOR OIL | |
| 02. | 4114753 | [1] | SEAL; GROUP | |
| 03. | 4246793 | [2] | BRG.; ROL. | |
| 04. | 1013983 | [1] | Drum | |
| 05. | 1010203 | [1] | SPROCKET | |
| 06. | J932055 | [16] | BOLT | |
| 07. | 3047448 | [1] | Hub | |
| 09. | 4246783 | [1] | PIN;TEKAN | |
| 10. | A590920 | [16] | PEMANAS;SEMBAH | |
| 11. | 1013981 | [1] | Gear;RING | |
| 12. | J931660 | [20] | BOLT | |
| 13. | 4246792 | [1] | O-RING | |
| 14. | 1013980 | [1] | Pengangkut | |
| 15. | 3047444 | [3] | Gear;Planetary | |
| 16. | 4210850 | [6] | BRG.; jarum | |
| 17. | 4246790 | [3] | PIN | |
| 18. | 4116309 | [3] | PIN;SPRING | |
| 19. | 3047443 | [1] | Gear;SUN | |
| 20. | 4269295 | [12] | PLATE;THRUST | |
| 21. | 1013979 | [1] | Pengangkut | |
| 22. | 4246785 | [2] | SPACER | |
| 23. | 3047446 | [3] | Gear;Planetary | |
| 24. | 4246786 | [3] | BRG.; jarum | |
| 25. | 4246789 | [3] | PIN | |
| 26. | 4246358 | [3] | PIN;SPRING | |
| 27. | 3047442 | [1] | Gear;SUN | |
| 29. | 1013982 | [1] | Pengangkut | |
| 30. | 3047447 | [3] | Gear;Planetary | |
| 31. | 4246787 | [3] | BRG.; jarum | |
| 32. | 4246788 | [3] | PIN | |
| 33. | 4192020 | [3] | PIN;SPRING | |
| 34. | 2028213 | [1] | SHAFT;PROP. | |
| 36. | 2028212 | [1] | PELUAR | |
| 38. | J011230 | [16] | BOLT;SEMS | |
| 40. | 4245797 | [3] | PLUG | |
| 42. | M492564 | [2] | Screw; Drive | |
| 43. | 3053559 | [1] | NAME-PLATE | |
| 45. | 3057125 | [1] | NUT | |
| 46. | 4192983 | [6] | PLATE;THRUST | |
| 47. | 4285323 | [1] | PIN;STOPPER | |
| 132. | 4248607 | [28] | BOLT | |
| 133. | 4018545 | [28] | PEMANAS |
