Informasi Detail |
|||
| Menyoroti: | Gearbox Perjalanan,drive akhir,pendorong akhir hidrolik |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk

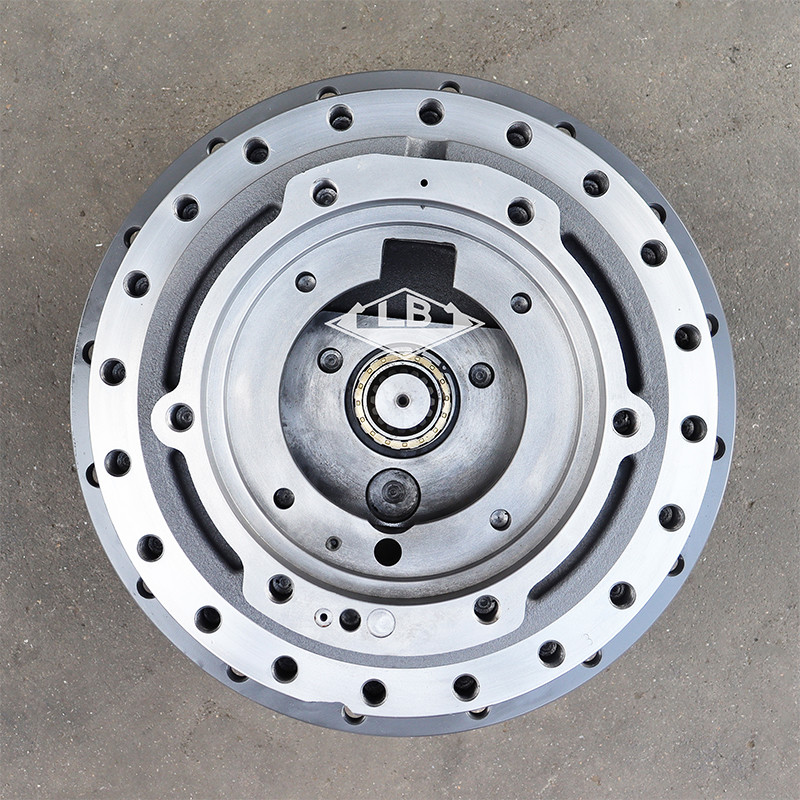

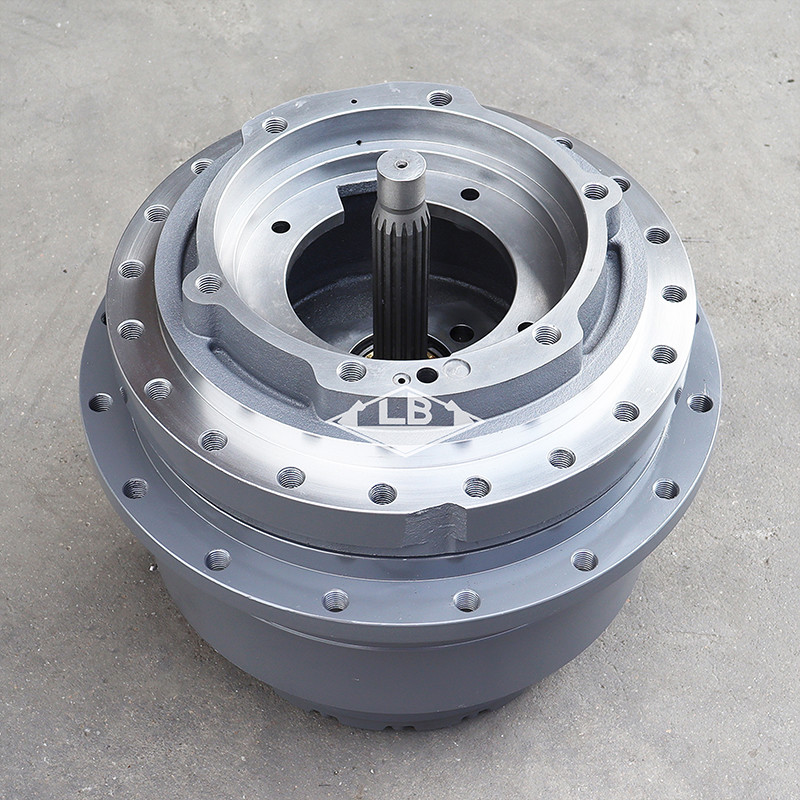

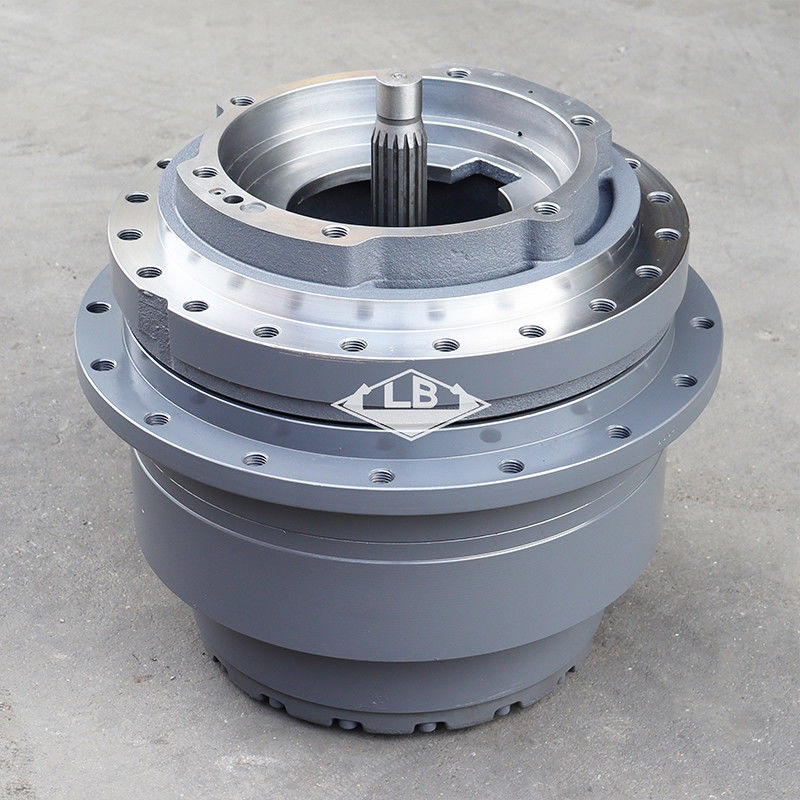

| Pnama seni | EC290 Gearbox perjalanan | |||||
| Peralatan | Terapkan pada VOLVO EXKAVATOR | |||||
| Bagian no. | VOE14528258 VOE14551155 | |||||
| Lubang rangka | 20 | |||||
| Lubang roda gigi | 16 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 376KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk

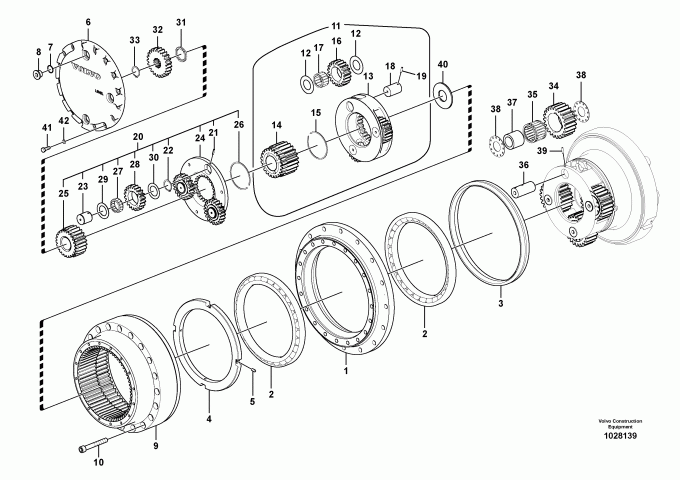

| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| VOE14551155 | [1] | Kotak gear perjalanan | ||
| 1. | VOE14522896 | [1] | Perumahan | |
| 2. | SA7117-38230 | [2] | Bantalan | |
| 3. | VOE14579901 | [1] | Segel | |
| 4. | VOE14528319 | [1] | Kacang | |
| 5. | VOE14526459 | [0003] | Pergilah. | |
| 6. | VOE14601855 | [1] | Tutup | |
| 7. | VOE983524 | [3] | O-ring | |
| 8. | VOE14883848 | [3] | Plug | |
| 9. | VOE14522897 | [1] | Peralatan | |
| 10. | SA9016-21620 | [20] | Hex. sekrup soket | |
| 11. | VOE14551153 | [1] | Pembawa planet | NO 2 |
| 12. | VOE14556491 | [6] | Mesin cuci | |
| 13. | SA7117-38320 | [1] | Pembawa planet | |
| 14. | SA7117-38330 | [1] | Peralatan | |
| 15. | SA7117-38340 | [1] | Cincin | |
| 16. | SA7117-38350 | [3] | Peralatan Planet | |
| 17. | SA7117-38360 | [3] | Pengisi jarum | |
| 18. | SA7117-38380 | [3] | Pin | |
| 19. | SA9325-06012 | [3] | Pin pegas | |
| 20. | VOE14551156 | [1] | Pembawa planet | No 1 |
| 21. | SA9325-06012 | [3] | Pin pegas | |
| 22. | VOE13914468 | [3] | Ring snap | |
| 23. | SA7117-38180 | [3] | Pin | |
| 24. | SA7117-38391 | [1] | Pembawa planet | |
| 25. | SA7117-38400 | [1] | Peralatan | |
| 26. | SA7117-38410 | [1] | Cincin | |
| 27. | SA7117-38420 | [3] | Bantalan Jarum | |
| 28. | SA7117-38431 | [3] | Peralatan planet | |
| 29. | VOE14556489 | [3] | Mesin cuci | |
| 30. | VOE14556490 | [3] | Mesin cuci | |
| 31. | SA1036-00290 | [1] | Cincin dorong | |
| 32. | SA7117-38371 | [1] | Peralatan | |
| 33. | VOE914467 | [1] | Cincin penahan | |
| 34. | SA7117-38271 | [4] | Peralatan planet | |
| 35. | SA7117-38520 | [4] | Pengisi jarum | |
| 36. | SA7117-38301 | [4] | Pin | |
| 37. | SA7117-38460 | [4] | Cincin dalam | |
| 38. | VOE14546062 | [8] | Mesin cuci | |
| 39. | SA9325-06012 | [4] | Pin pegas | |
| 40. | SA8230-21020 | [1] | Cincin dorong | |
| 41. | VOE983252 | [16] | Sekrup heksagon | |
| 42. | VOE955922 | [16] | Mesin cuci pegas |
