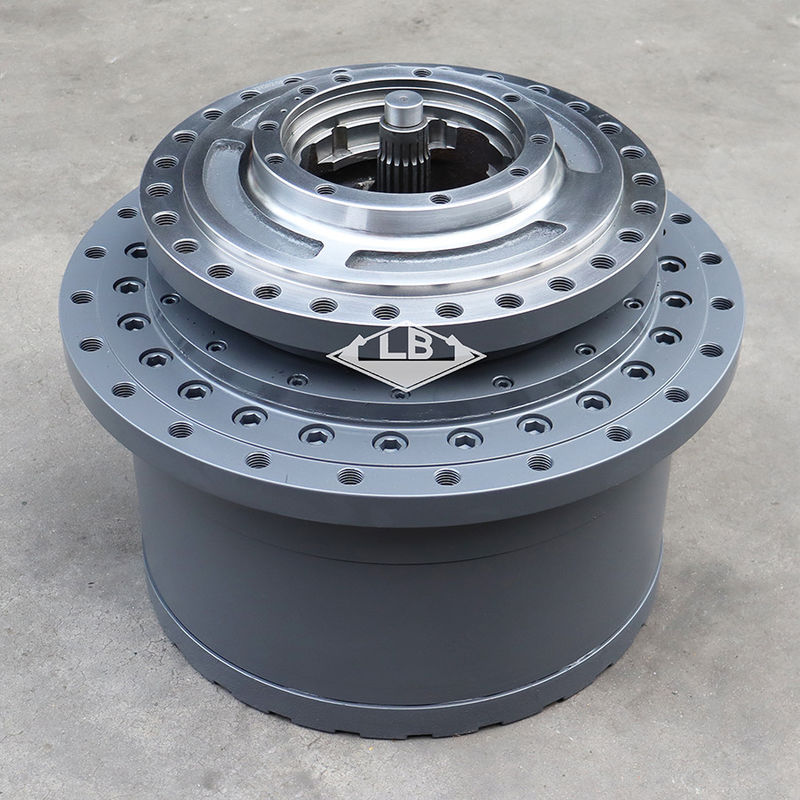

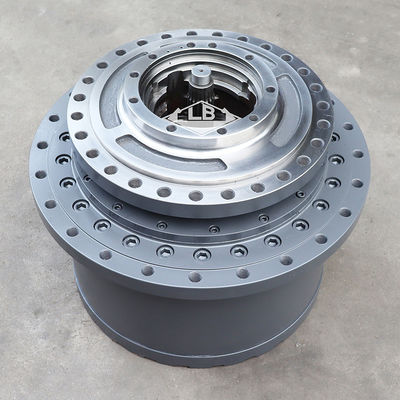

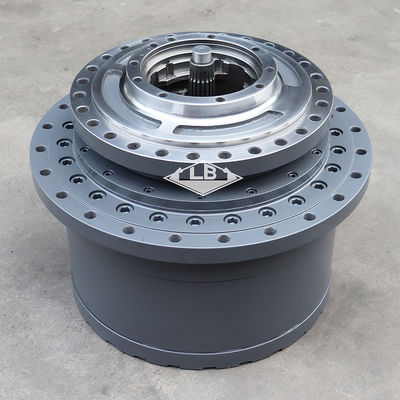

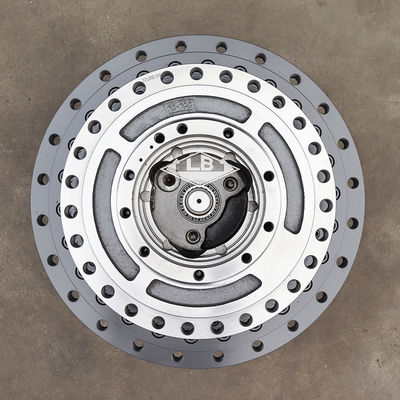

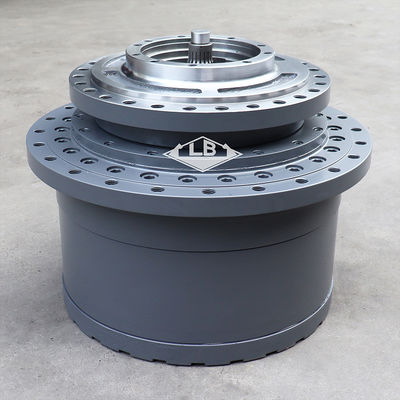

SK460-8 SK485-8 GM85 Reduktor perjalanan LS53D00007F1 LS15V00020F1 SK460 Gearbox perjalanan
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | drive terakhir pada excavator,Perlengkapan Pengurang Perjalanan,Kotak Perlengkapan Perjalanan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | SK460-8 SK485-8 GM85 Gearbox perjalanan | |||||
| Peralatan | Mendaftar ke Kobelco EXKAVATOR | |||||
| Bagian no. | LS53D00007F1 | |||||
| Lubang rangka | 27 | |||||
| Lubang roda gigi | 24 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 410 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian pada kelompok (SK485-8) - ACERA MARK 8 EXCAVATOR - TIER 3 (NA) YS07U0701 - (8/07-12/12):
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| . . | LS53D00007F1 | [1] | REDUCER | KOBPengaturan Pengurangan Propel |
| 1. | LS53D00007S001 | [1] | Perumahan | KOBRumah - NSS (urutannya LS15V00020F1) |
| 2. | LS53D00007S002 | [2] | Keterangan: | KOBBantalan |
| 3. | LS53D00007S003 | [1] | RING GEAR | KOBGear, Ring |
| 4. | ZS23C20120 | [26] | PELUANG | HITM20x2,5x120mm |
| 5. | LS53D00007S005 | [1] | PELUAR | KOBTutup, Seal |
| 6. | ZS23C10025 | [16] | Screw, Hex Socket Head, M10 x 25mm | KOBM10x1.50x25mm Digantikan oleh nomor bagian: ZS28C10025 |
| 7. | 24100U1743S24 | [1] | SEAL | KOB |
| 8. | LS53D00007S008 | [1] | SHIM | KOBShim |
| 9. | LS53D00007S009 | [2] | PENGEMAS KELUAR | KOBPembersih kunci |
| 10. | LS53D00007S010 | [1] | Dukungan | KOBCincin |
| 11. | LS53D00007S011 | [1] | Spider | KOBPengangkut |
| 12. | 24100U1743S14 | [3] | PINION | KOB |
| 13. | ZR26X12000 | [6] | cincin penguncian | KOBPengendalian -- ID 124 x OD 127 x Th 4.0mm |
| 14. | LS53D00007S014 | [6] | Keterangan: | KOBBantalan |
| 15. | LS53D00003S012 | [3] | PIN | KOBPengangkut |
| 16. | ZP26D10063 | [3] | ROLL PIN | HITOD 10 x 63mm Panjang |
| 17. | LS53D00007S017 | [1] | SPACER | KOBSpacer |
| 18. | 24100U1743S10 | [1] | PENGANTAR SUN | KOB |
| 19. | LS53D00003S002 | [1] | Spider | KOBPengangkut |
| 20. | LS53D00003S006 | [3] | Gear | KOBGear, Planetary |
| 21. | LS53D00003S005 | [6] | PELAT | KOBMesin cuci, dorongan |
| 22. | LS53D00007S022 | [3] | PENGUNJUNG PENGUNJUNG | KOBBantalan, Jarum |
| 23. | LC53D00007S003 | [3] | PIN | KOB |
| 24. | ZP26D06036 | [3] | PIN | KOBRoll -- OD 06 x 36mm Panjang |
| 25. | LS53D00007S025 | [1] | PENGANTAR SUN | KOBPeralatan, Sun. |
| 26. | LQ15V00005S008 | [1] | PELAT | KOBDorongan |
| 27. | LS53D00007S027 | [1] | PELUAR | KOBTutup |
| 28. | ZS23C12030 | [25] | Sekrup, Kepala Soket Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 29. | YR30V00001S116 | [2] | PLUG | KOB |
| 30. | ZD12P02400 | [2] | O-RING | KOBID 23,70 ± 0,24 x OD 30mm |
