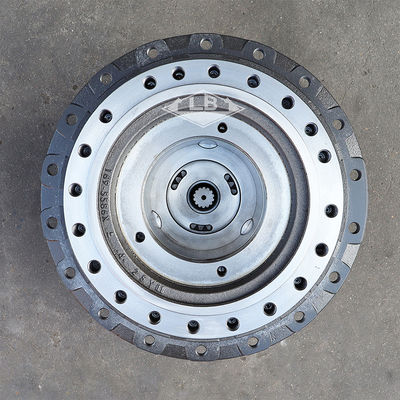

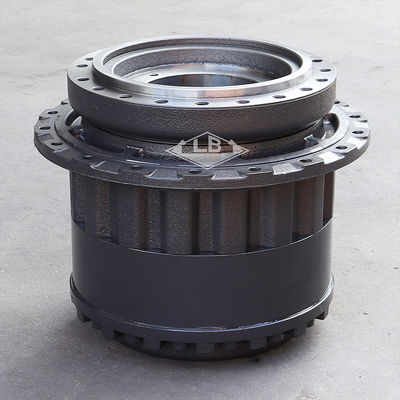

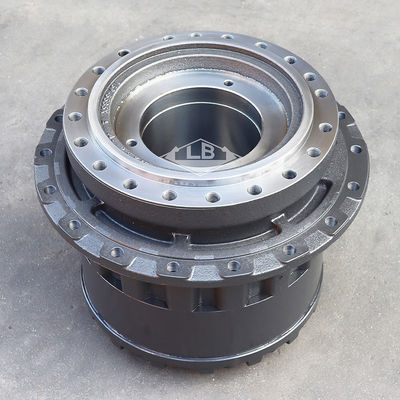

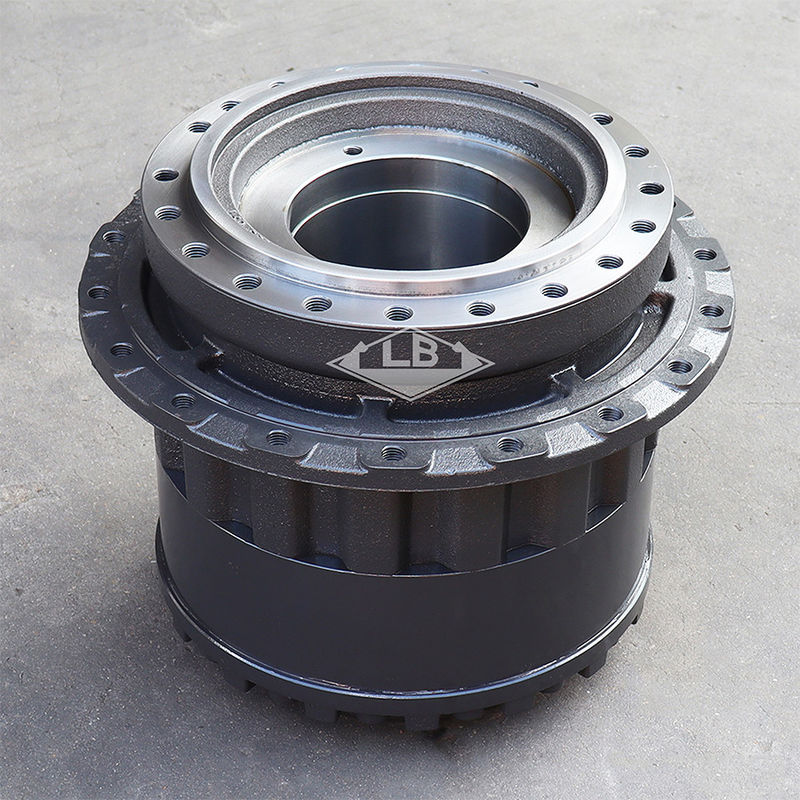

E325 E329 Penggerak akhir tanpa motor 227-6115 227-6116 267-6796 191-2682 378-9567 333-2909 E325 Gearbox perjalanan
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Penggali drive akhir,Penggerak akhir planet,Peralatan pengurangan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | E325 E329 Gearbox perjalanan | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 227-6115 227-6116 267-6796 191-2682 378-9567 333-2909 | |||||
| Lubang rangka | 20 | |||||
| Lubang roda gigi | 18 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 300 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
| 1. | 3E-2338 | [2] | pipa colokan | |
| 2. | 094-0578B | [1] | PELAT(8-MM THK) | |
| 3. | 094-0579B | [1] | PELAT(9-MM THK) | |
| 4. | 094-0580B | [1] | PELAT(10-MM THK) | |
| 5. | 094-1528 | [12] | PEMANAS(53X84X1-MM THK) | |
| 6. | 168-8452J | [2] | Bantalan bola | |
| 7. | 169-5585J | [1] | Perumahan | |
| 8. | 169-5589 | [1] | Gear-SUN(24-TEETH) | |
| 9. | 169-5590 | [1] | Gear-SUN(24-TEETH) | |
| 10. | 169-5592 | [3] | Gear-planetary(23-TEETH) | |
| 11. | 169-5593 | [3] | Gear-planetary(23-TEETH) | |
| 12. | 169-5601 | [3] | SHAFT-PLANETARY | |
| 13. | 169-5602 | [3] | SHAFT-PLANETARY | |
| 14. | 171-9387 | [1] | GANG-RING(64-TEETH) | |
| 15. | 191-2569 | [3] | AS BEARING(ROLLER KAGEL) | |
| 16. | 191-2570 | [6] | AS BEARING(ROLLER KAGEL) | |
| 17. | 191-2571 | [1] | Pembawa-Planetary | |
| 18. | 191-2676 | [1] | GANG-RING(72-TEETH) | |
| 19. | 191-2683 | [1] | Gear-SUN(20-TIH) | |
| 20. | 191-2684 | [3] | Gear-planetary(21-TEETH) | |
| 21. | 191-2685 | [3] | AS BEARING | |
| 22. | 191-2686 | [1] | CARRIER AS | |
| 23. | 191-2689 | [3] | PEMANAS(34X70X1-MM THK) | |
| 24. | 191-2690 | [3] | PEMANAS(42.3X70X1-MM THK) | |
| 25. | 199-4503 | [1] | PELUAR | |
| 26. | 207-1571J | [1] | SEAL GP-DUO-CONE | |
| 26A. | 214-3570 | [2] | RING-TORIC | |
| 26B. | Z | [2] | Seal-RING | |
| 27. | 227-6117J | [1] | Rumah-Motor | |
| 28. | 227-6118J | [1] | Pengendali | |
| 29. | 227-6119 | [1] | Pembawa-Planetary | |
| 30. | 227-6123J | [2] | Dowell | |
| 31. | 227-6124J | [2] | PENGAMBAR PELANCANG | |
| 32. | 093-1731 | [2] | Pengendalian cincin | |
| 33. | 095-0891 | [6] | Pin-SPRING | |
| 34. | 096-0433 | [3] | Pengendalian cincin | |
| 35. | 096-3216M | [2] | SETSCREW-SOCKET(M12X1.75X12-MM) | |
| 36. | 171-9298 | [1] | SEAL-O-RING | |
| 37. | 179-8733M | [16] | BOLT(M20X2.5X170-MM) | |
| 38. | 7M-8485 | [2] | SEAL-O-RING | |
| 39. | 7Y-0595 | [3] | SPACER(58X79.6X6-MM THK) | |
| 40. | 8T-0293JM | [4] | BOLT(M12X1.75X20-MM) | |
| 41. | 8T-4123 | [16] | PEMANAS(3.62X5.75X0.375-MM THK) | |
| 42. | 9X-6032M | [12] | Kepala Bolt-Socket(M10X1.5X30-MM) | |
| 43. | 1U-8846B | SEALANT-GASKET | ||
| KIT PEMBERAHAN yang tersedia: | ||||
| 227-6125J | [1] | KIT-Housing(Final Drive) | ||
| B | Gunakan sesuai kebutuhan | |||
| J | KIT MARKED J SERVICES PART (s) MARKED J | |||
| M | Bagian Metrik | |||
| Z | TIDAK DISERVIS SEPARAT | |||
