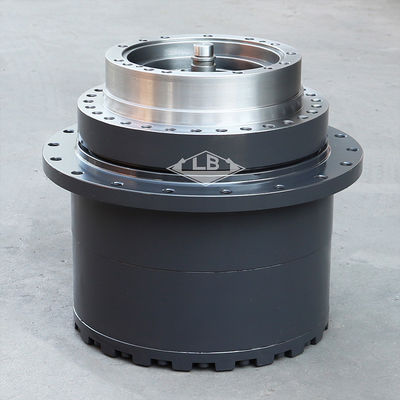

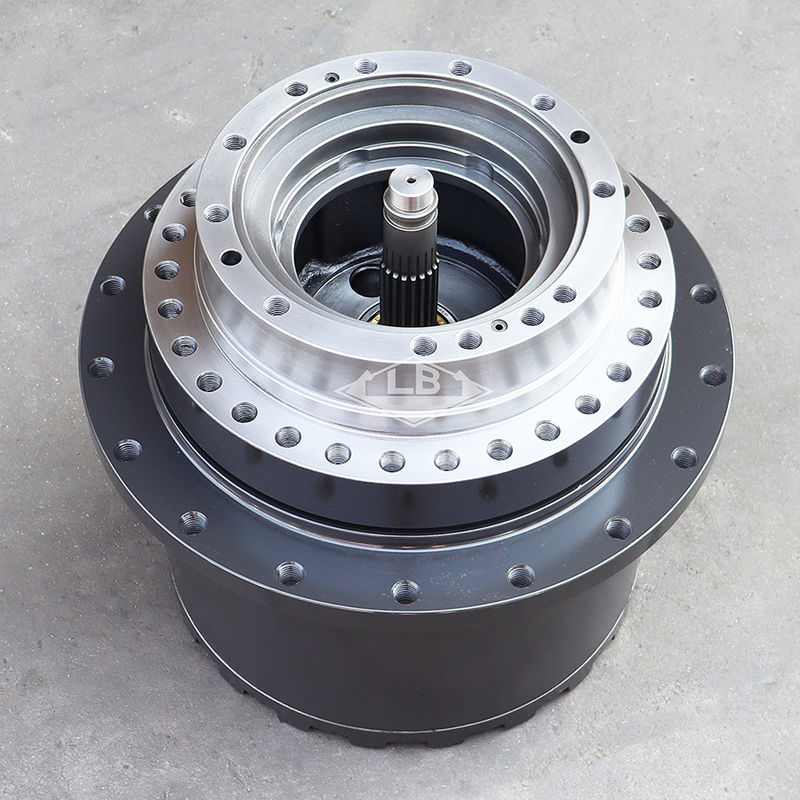

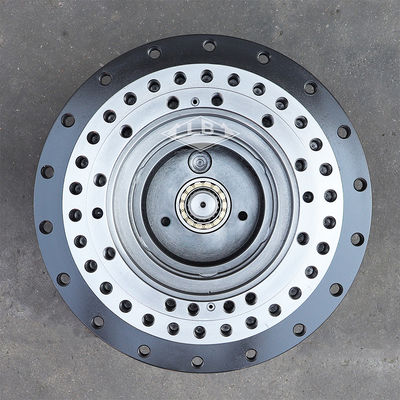

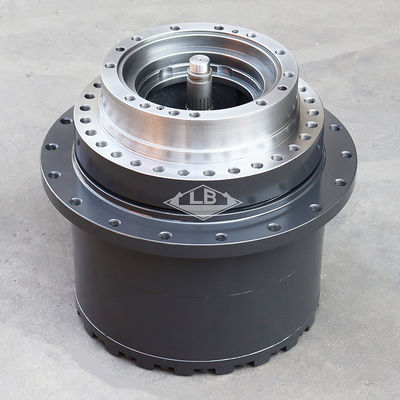

EC240 Gearbox pengurangan perjalanan SA7117-34050 VOE14528735 EC240B Gearbox perjalanan
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Penggali drive akhir,Penggerak akhir planet,Peralatan pengurangan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | EC240 Gearbox perjalanan | |||||
| Peralatan | Terapkan pada VOLVO EXKAVATOR | |||||
| Bagian no. | SA7117-34050 VOE14528735 | |||||
| Lubang rangka | 30 | |||||
| Lubang roda gigi | 18 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 290 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
| VOE14528735 | [1] | Gearbox | ||
| 1. | VOE14528715 | [1] | Perumahan | |
| 2. | VOE14538940 | [2] | Bantalan | |
| 3. | SA7117-34120 | [1] | Perlengkapan cincin | |
| 4. | SA9016-21818 | [20] | Hex. sekrup soket | |
| 5. | VOE14528720 | [1] | Segel | |
| 6. | VOE14883847 | [3] | Plug | |
| 7. | SA7117-34190 | [1] | Pengendali | |
| 8. | VOE997446 | [12] | Sekrup heksagon | |
| 9. | SA7117-34200 | [1] | Pembawa planet | |
| 10. | SA7117-34210 | [1] | Pengangkut | |
| 11. | SA7117-34220 | [4] | Peralatan planet | |
| 12. | SA7117-34230 | [8] | Pengisi jarum | |
| 13. | SA7117-34240 | [8] | Mesin cuci | |
| 14. | SA7117-34250 | [4] | Pin | |
| 15. | VOE13951991 | [4] | Pin pegas | |
| 16. | VOE14528721 | [1] | Pembawa planet | |
| 17. | VOE14528722 | [1] | Pengangkut | |
| 18. | SA1036-00310 | [1] | Cincin dorong | |
| 19. | SA7117-34280 | [1] | Peralatan | |
| 20. | SA8230-21020 | [1] | Cincin dorong | |
| 21. | SA7117-34290 | [1] | Cincin penahan | |
| 22. | SA7117-34300 | [3] | Peralatan planet | |
| 23. | SA7117-34310 | [3] | Pengisi jarum | |
| 24. | VOE14556491 | [6] | Mesin cuci | |
| 25. | SA7117-34330 | [3] | Pin | |
| 26. | SA9325-06012 | [3] | Pin pegas | |
| 27. | SA7117-34340 | [1] | Pembawa planet | |
| 28. | SA7117-34350 | [1] | Pembawa planet | |
| 29. | SA7117-34370 | [3] | Pin | |
| 30. | SA9325-06012 | [3] | Pin pegas | |
| 31. | SA7117-34360 | [1] | Peralatan | |
| 32. | SA7117-34440 | [1] | Cincin penahan | |
| 33. | SA7117-34420 | [3] | Peralatan planet | |
| 34. | SA7117-34380 | [3] | Pengisi jarum | |
| 35. | SA7117-34390 | [3] | Mesin cuci | |
| 36. | SA7117-34400 | [3] | Mesin cuci | |
| 37. | SA9541-01034 | [3] | Cincin penahan | |
| 38. | SA1036-00290 | [2] | Cincin dorong | |
| 39. | SA7117-34430 | [1] | Peralatan | |
| 40. | VOE14601854 | [1] | Tutup | |
| 41. | VOE955922 | [16] | Mesin cuci pegas | |
| 42. | VOE993025 | [16] | Sekrup heksagon | |
| 43. | SA7117-34140 | [1] | Shim | 0.1t |
| 44. | SA7117-34150 | [1] | Shim | 0.3t |
| 45. | SA7117-34160 | [1] | Shim | 0.5t |
| 46. | SA7117-34170 | [1] | Shim | 1.0t |
| 47. | SA1036-00450 | [1] | Shim | |
| 48. | SA1036-00460 | [1] | Shim | |
| 49. | VOE990557 | [3] | O-ring | |
| 100. | VOE14526221 | [1] | Kit perbaikan |
