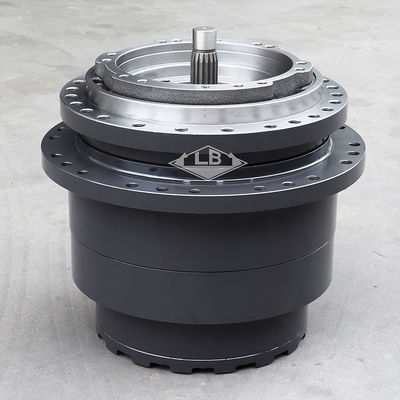

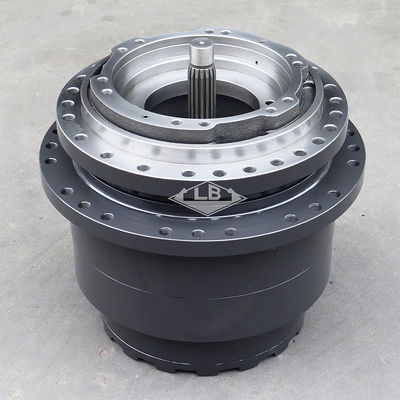

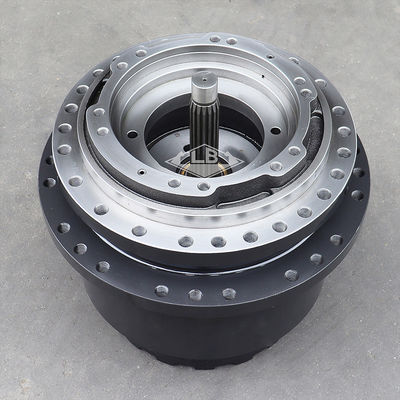

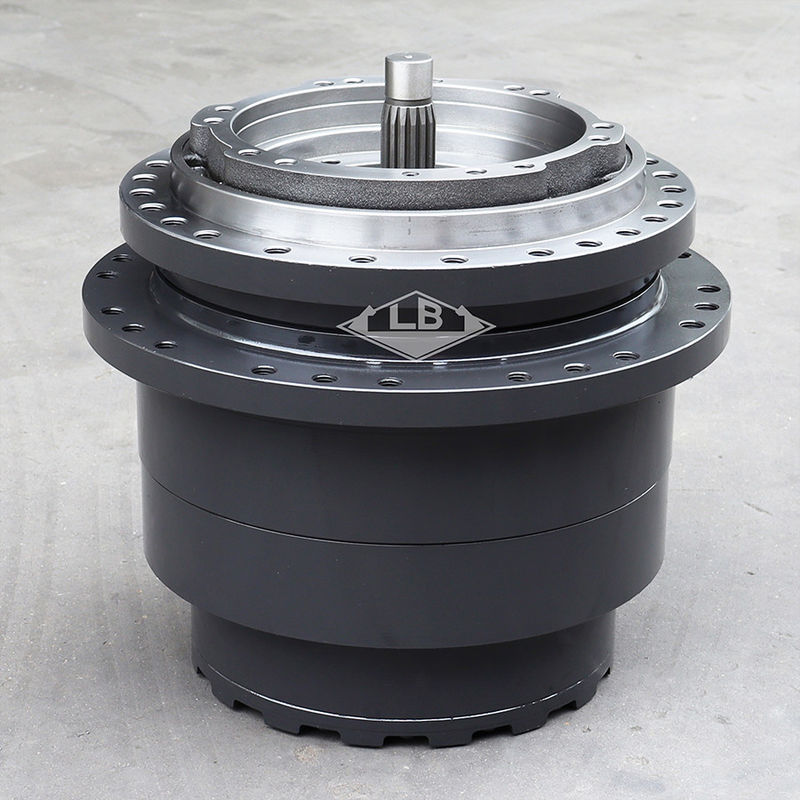

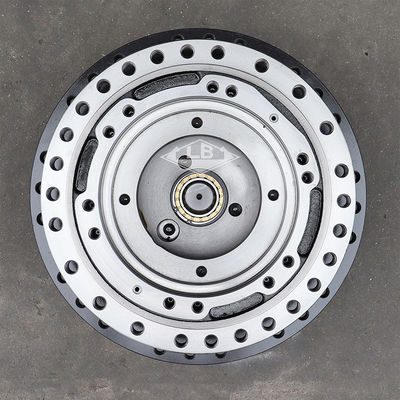

R360-7 R385-9 R390-9 Gear REDUCTION TRAVEL XKAY-01704 XKAY-02027 XKAY-02147 R360-7 Gearbox perjalanan
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Penggali drive akhir,Penggerak akhir planet,Peralatan pengurangan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | R360-7 R385-9 R390-9 Gearbox perjalanan | |||||
| Peralatan | Mendaftar untuk HYUNDAI EXKAVATOR | |||||
| Bagian no. | XKAY-01704 XKAY-02027 XKAY-02147 | |||||
| Lubang rangka | 26 | |||||
| Lubang roda gigi | 28 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 340 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| N*-2. | XKAY-01704 | [1] | GERRY REDUCTION TRAVEL | SEE 4125 |
| *-2. | XKAY-02027 | [1] | GERRY REDUCTION TRAVEL | SEE 4125 |
| *-2. | XKAY-02147 | [1] | GERRY REDUCTION TRAVEL | SEE 4125 |
| 2. | XKAY-01624 | [1] | SEAL-FLOATING | |
| 3. | XKAY-01625 | [1] | Hub | |
| 3. | XKAY-02041 | [1] | Hub | |
| 4. | XKAY-01185 | [2] | Keterangan: | |
| 5. | XKAY-01186 | [AR] | SHIM | |
| 6. | XKAY-01187 | [1] | PEMANDUH PEMANDUH | |
| 6. | XKAY-02143 | [1] | PEMANDUH PEMANDUH | |
| 7. | XKAY-01188 | [18] | Bolt-Wrench | |
| N8. | XKAY-01626 | [1] | Pengangkut ((A) | |
| N8. | XKAY-01874 | [1] | Pengangkut ((A) | |
| 8. | XKAY-02148 | [1] | Pengangkut ((A) | |
| 9. | XKAY-01627 | [4] | Gear-Planetary ((A) | |
| 10. | XKAY-01191 | [8] | PLATE ((A) | |
| 11. | XKAY-01192 | [4] | Jaring bantalan | |
| 12. | XKAY-01193 | [4] | BUSH-BEARING | |
| 13. | XKAY-01628 | [4] | PIN ((A) | |
| 13. | XKAY-01873 | [4] | PIN ((A) | |
| 13. | XKAY-02149 | [4] | PIN ((A) | |
| 14. | XKAY-01195 | [4] | Pin-SPRING | |
| 14. | XKAY-01872 | [1] | Pin-SPRING | |
| 15. | XKAY-01629 | [1] | Gear-SUN (A) | |
| 16. | XKAY-01198 | [1] | RING-SNAP | |
| 17. | XKAY-01630 | [1] | Pengangkut (B) | |
| 17. | XKAY-01871 | [1] | Pengangkut (B) | |
| 18. | XKAY-01631 | [3] | Gear-Planetary ((B) | |
| 19. | XKAY-01201 | [12] | PLATE ((B.C.) | |
| 20. | XKAY-01202 | [3] | Jaring bantalan | |
| 21. | XKAY-01632 | [3] | PIN (B) | |
| 22. | XKAY-01633 | [6] | Pin-SPRING | |
| 22. | XKAY-01870 | [6] | Pin-SPRING | |
| 23. | XKAY-01634 | [1] | Gear-SUN (B) | |
| 24. | XKAY-01206 | [1] | RING-SNAP | |
| 25. | XKAY-01635 | [1] | Pengangkut (C) | |
| 26. | XKAY-01636 | [3] | Gear-Planetary ((C) | |
| 27. | XKAY-01209 | [3] | Jaring bantalan | |
| 28. | XKAY-01637 | [3] | PIN ((C) | |
| 29. | XKAY-01211 | [1] | Pergaulan | |
| 30. | XKAY-01638 | [1] | GANG-RING | |
| 31. | XKAY-01213 | [24] | Bolt-Wrench | |
| 32. | XKAY-01214 | [4] | PIN-PARALEL | |
| 33. | XKAY-01215 | [1] | Gear-drive | |
| 34. | XKAY-01639 | [1] | PENGANTAR | |
| 35. | XKAY-01640 | [1] | PELAT | |
| 36. | XKAY-00901 | [16] | Bolt-Wrench | |
| 37. | XKAY-01220 | [1] | O-RING | |
| 38. | XKAY-01641 | [1] | RING | |
| 39. | XKAY-01642 | [1] | RING | |
| 40. | XKAY-01643 | [3] | PLUG | |
| 41. | XKAY-01703 | [3] | O-RING | |
| 42. | XKAY-01217 | [1] | BUSHING | |
| 43. | XKAY-01196 | [1] | Plate-thrust | |
| *-1. | @ | [1] | ASSY MOTOR Perjalanan |
