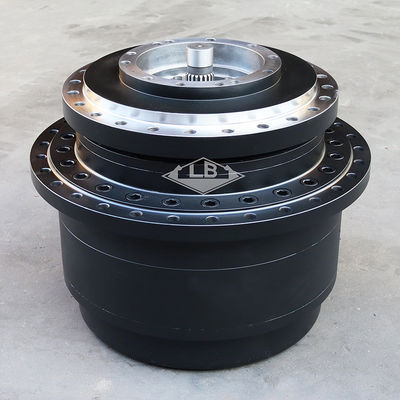

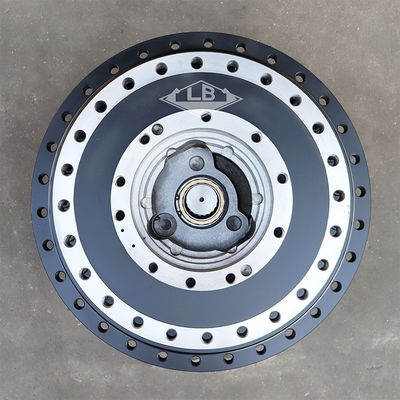

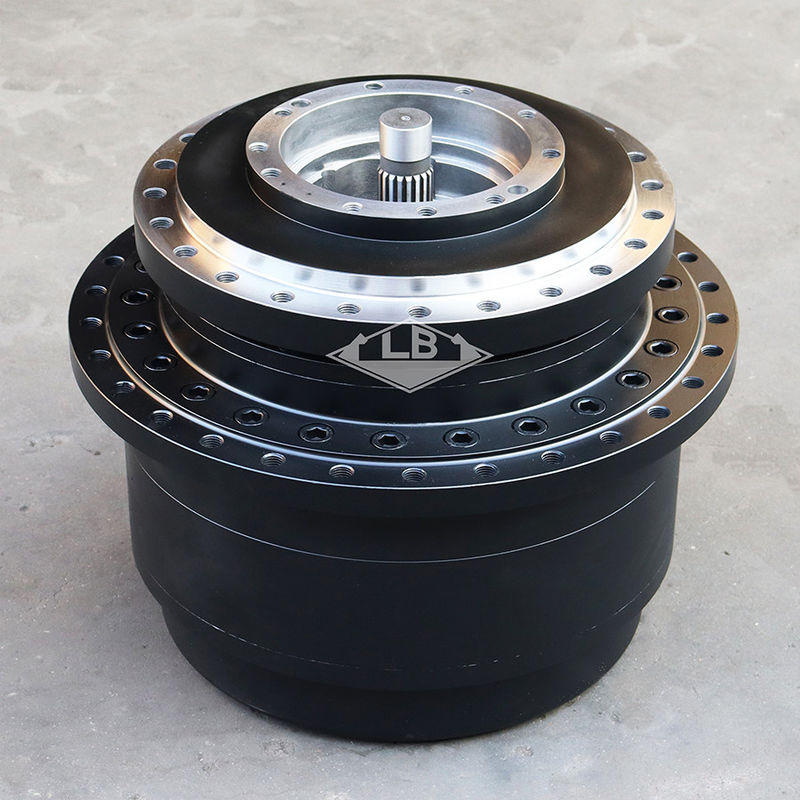

R485VS R480LC-9 R520LC-9 R500LC-7 Final drive tanpa motor 39QB-42100 39QB-40101 R480-9 Travel gearbox
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Penggali drive akhir,Penggerak akhir planet,Peralatan pengurangan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | R485VS R480LC-9 R520LC-9 R500LC-7 Travel gearbox | |||||
| Peralatan | Mendaftar untuk HYUNDAI EXKAVATOR | |||||
| Bagian no. | 39QB-42100 | |||||
| Lubang rangka | 24 | |||||
| Lubang roda gigi | 30 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 620KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian pada kelompok GERRY REDUCTION TRAVEL ((TYPE 3):
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| * | @ | [1] | ASSY MOTOR Perjalanan | SEE 4158, 4166 |
| *-2. | 39QB-42100 | [1] | GERRY REDUCTION TRAVEL | |
| 1. | 39QB-42110 | [1] | GANG-RING | |
| 2. | 39QB-42120 | [2] | Ball-Bearing | |
| 3. | 39Q8-42130 | [2] | SEAL ASSY-FLOATING | |
| 4. | 39QB-42130 | [1] | NUT-RING | |
| 5. | 39QB-42140 | [1] | PLATE-LOCK | |
| 6. | S017-120206 | [4] | BOLT-HEX | |
| 7. | S482-130020 | [1] | PIN-PARALEL | |
| 8. | 39QB-42150 | [1] | Perumahan | |
| 9. | S109-120356 | [16] | BOLT-SOCKET | |
| 10. | 39QA-42360 | [1] | Pergaulan | |
| K11. | 39QB-42170 | [1] | Pengangkut | |
| K12. | 39QB-42180 | [4] | Gear-planetary | |
| K13. | 39Q8-42210 | [4] | Jaring bantalan | |
| K14. | 39QB-42190 | [8] | Kekuatan pencuci | |
| K15. | 39QB-42200 | [4] | Pembawa PIN | |
| K16. | S472-910404 | [4] | Pin-SPRING | |
| K17. | 39Q8-42240 | [4] | PIN-SOLID | |
| 18. | 39QB-42210 | [1] | Gear-SUN | |
| K19. | 39QB-42230 | [1] | Pengangkut No.1 | |
| K20. | 39QB-42240 | [3] | Gear-Planetary NO.1 | |
| K21. | 39QB-42250 | [3] | Jaring bantalan | |
| K22. | 39Q8-12230 | [6] | Kekuatan pencuci | |
| K23. | 39QB-42260 | [3] | Pembawa PIN | |
| K24. | S472-600504 | [3] | Pin-SPRING | |
| 25. | 39QB-42270 | [1] | Gear-SUN NO.1 | |
| K26. | 39Q8-42330 | [1] | Plate-thrust | |
| 27. | 39Q6-42320 | [1] | Plate-thrust | |
| 28. | 39QB-42281 | [1] | PELUAR | |
| 29. | 39QB-42290 | [1] | SEAL-COVER | |
| 30. | S109-100256 | [16] | BOLT-SOCKET | |
| 31. | S109-201206 | [25] | BOLT-SOCKET | |
| 32. | P220-110205 | [3] | PLUG-HEX | |
| 33. | S602-045001 | [1] | Pengendalian cincin,TIPU C | |
| N34. | 39QB-42350 | [1] | NAME PLATE (Plat Nama) | |
| 35. | 39Q6-41800 | [2] | RIVET | |
| 36. | S631-024001 | [3] | O-RING | |
| K. | 39QB-42220 | [1] | Pengangkut ASSY KIT 1 | Lihat ILLUST |
| K. | 39QB-42160 | [1] | Pengangkut ASSY KIT 2 | Lihat ILLUST |
