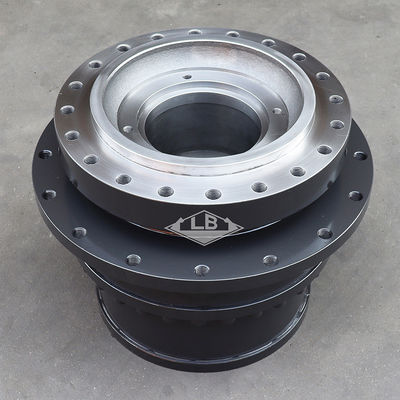

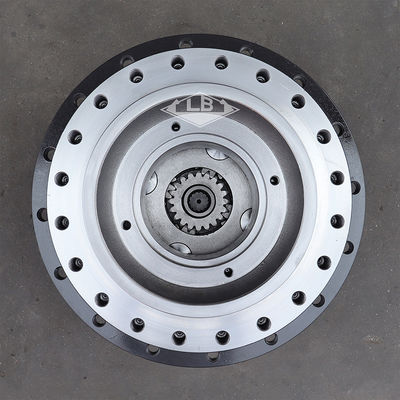

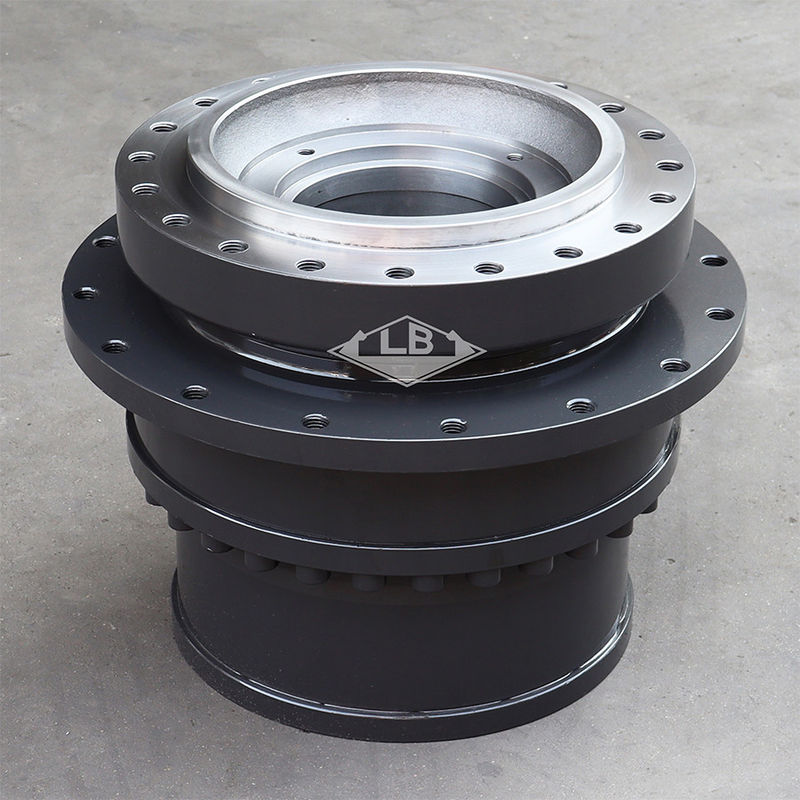

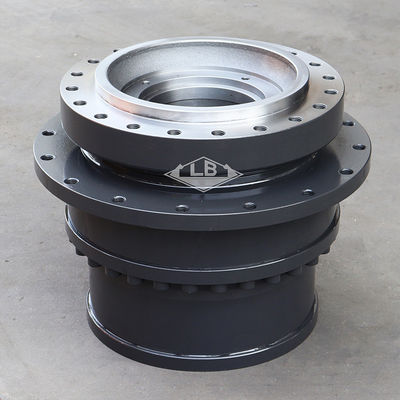

E E336D E340D2 Travel Gearbox Final Drive Travel Reduction Gear 296-6246 2966246 353-0562 3530562
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | E E336D Gearbox Perjalanan,E340D2 Travel Gearbox,Gear pengurangan perjalanan 296-6246 |
||
|---|---|---|---|
Deskripsi Produk
E E336D E340D2 Penggerak akhir Gear pengurangan perjalanan 296-6246 2966246 353-0562 3530562 E336D Gearbox perjalanan
Parameter produk
| Pnama seni | E336D E340D2 Gearbox perjalanan | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 296-6246 353-0562 501-7238 | |||||
| Lubang rangka | 20 | |||||
| Lubang roda gigi | 16 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 430 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian untuk 336D LN EXCAVATOR Anda:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 7Y-0595 | [2] | SPACER(58X79.6X6-MM THK) | |
| 2. | 7Y-1056B | [1] | SHIM(0.8-MM THK) | |
| 7Y-1057B | [1] | SHIM(1-MM THK) | ||
| 267-6809B | [1] | SHIM(0.75-MM THK) | ||
| 267-6810B | [1] | SHIM(0.85-MM THK) | ||
| 267-6811B | [1] | SHIM(0.9-MM THK) | ||
| 267-6812B | [1] | SHIM(0.95-MM THK) | ||
| 267-6813B | [1] | SHIM(1.2-MM THK) | ||
| 267-6814B | [1] | SHIM(1.4-MM THK) | ||
| 267-6815B | [1] | SHIM(1.8-MM THK) | ||
| 267-6816B | [1] | SHIM(2-MM THK) | ||
| 267-6817B | [1] | SHIM(2.3-MM THK) | ||
| 4. | 094-0577B | [1] | PELAT(7-MM THK) | |
| 094-0578B | [1] | PELAT(8-MM THK) | ||
| 094-0579B | [1] | PELAT(9-MM THK) | ||
| 094-0580B | [1] | PELAT(10-MM THK) | ||
| 8. | 114-1541 | [6] | PIN-DOWEL | |
| 9. | 136-2898 | [14] | PEMANAS(58.3X89X1-MM THK) | |
| 10. | 191-2690 | [6] | PEMANAS(42.3X70X1-MM THK) | |
| 11. | 227-6192 | [1] | GANG-CUPLING | |
| 12. | 255-2272 | [1] | SEAL GP-DUO-CONE | |
| 22. | 279-0344 | [2] | PEMANGAT AS-TAPERED ROLLER | |
| 23. | 295-9234 | [1] | SEAL-O-RING | |
| 24. | 296-6181 | [1] | Perumahan(SPROCKET) | |
| 25. | 296-6182 | [1] | PELUAR | |
| 26. | 296-6183 | [1] | Pembawa-Planetary | |
| 27. | 296-6184 | [4] | Gear-planetary(21-TEETH) | |
| 28. | 296-6185 | [4] | SHAFT | |
| 29. | 296-6186 | [3] | Gear-planetary(21-TEETH) | |
| 30. | 296-6189 | [1] | Gear-SUN(20-TIH) | |
| 31. | 296-6190 | [1] | Gear-SUN(20-TIH) | |
| 32. | 296-6192 | [1] | SPACER(143X170X8-MM THK) | |
| 33. | 296-6194 | [1] | Pembawa-Planetary | |
| 34. | 296-6195 | [3] | SHAFT | |
| 35. | 296-6230 | [3] | Gear-planetary(21-TEETH) | |
| 36. | 296-6231 | [1] | Gear-SUN(20-TIH) | |
| 37. | 296-6232 | [1] | CARRIER AS(Planetary) | |
| 38. | 296-6247 | [11] | Bantalan AS-roller | |
| 39. | 296-6248 | [3] | Bantalan AS-roller | |
| 40. | 296-6311 | [1] | GANG-RING(64-TEETH) | |
| 41. | 353-0563 | [1] | Rumah-Motor | |
| 42. | 093-1731 | [2] | Pengendalian cincin(LANGSUNG) | |
| 43. | 095-0891 | [1] | Pin-SPRING | |
| 44. | 096-3216M | [2] | SETSCREW-SOCKET(M12X1.75X12-MM) | |
| 45. | 096-8058 | [3] | Pengendalian cincin | |
| 46. | 191-2645 | [1] | Pergaulan | |
| 47. | 3E-2338 | [2] | pipa colokan | |
| 48. | 6V-8133M | [10] | BOLT(M24X3X80-MM) | |
| 49. | 6V-8237 | [10] | PEMANAS(26X44X4-MM THK) | |
| 50. | 7M-8485 | [2] | SEAL-O-RING | |
| 51. | 7Y-5217M | [30] | Kepala Bolt-Socket(M20X2.5X70-MM) | |
| 52. | 451-2176 | [30] | Hard untuk mencuci(22X35X3.5-MM THK) | |
| 53. | 451-2182 | [16] | Hard untuk mencuci(13.5X25.5X3-MM THK) | |
| 54. | 453-3446M | [16] | BOLT(M12X1.75X35-MM) |
