E320 E320B E320C E320D Travel Gearbox E 320 199-4584 227-6035 296-6299 227-6949 Drive akhir
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | E320 E320B Gearbox Perjalanan,E320C E320D Travel Gearbox,E 320 199-4584 Gearbox Penggerak Akhir |
||
|---|---|---|---|
Deskripsi Produk

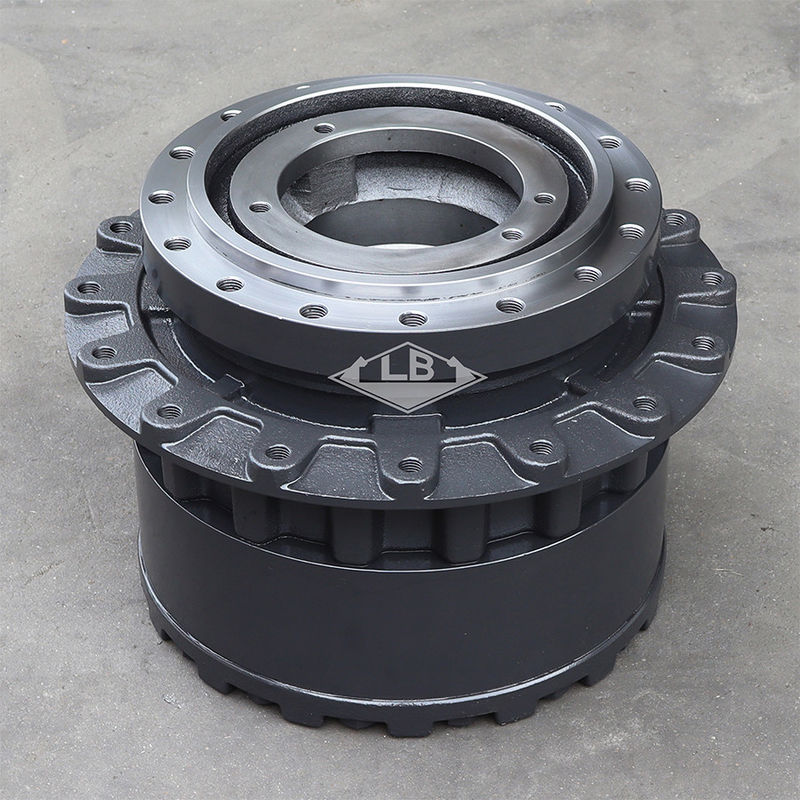

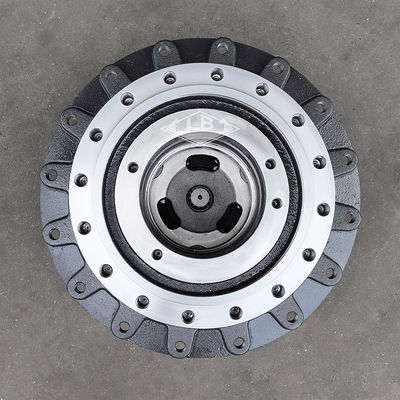

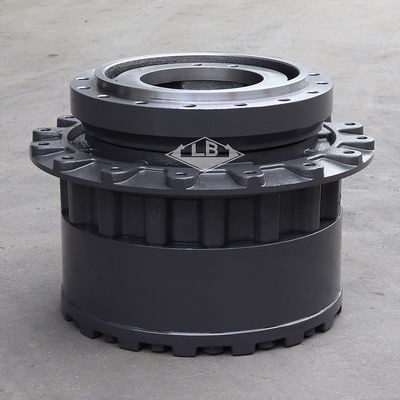

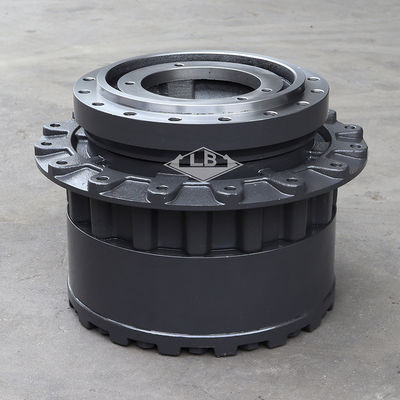

E320 E320B E320C E320D Travel Gearbox E 320 199-4584 227-6035 296-6299 227-6949 Penggerak akhir tanpa motor
Parameter produk
| Pnama seni | E320B E320C E320D Gearbox perjalanan | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 199-4584 227-6035 227-694 | |||||
| Lubang rangka | 16 | |||||
| Lubang roda gigi | 16 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 278KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian untuk excavator 320C Anda:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 7Y-1434 | [1] | SPACER(40X69.5X6-MM THK) | |
| 2. | 096-1773B | [1] | SHIM(0,15-MM THK) | |
| 096-1774B | [1] | SHIM(0.3-MM THK) | ||
| 096-1775B | [1] | SHIM(0.4-MM THK) | ||
| 096-1776B | [1] | SHIM(0.5-MM THK) | ||
| 096-1777B | [1] | SHIM(0.6-MM THK) | ||
| 096-1778B | [1] | SHIM(0.7-MM THK) | ||
| 096-1779B | [1] | SHIM(0.8-MM THK) | ||
| 096-1780B | [1] | SHIM(1-MM THK) | ||
| 096-1781B | [1] | SHIM(1.6-MM THK) | ||
| 11. | 6V-3303M | [14] | BOLT(M16X2X60-MM) | |
| 12. | 7Y-0223 | [3] | SHAFT-PLANETARY | |
| 13. | 094-1542 | [6] | Berkas-Roller | |
| 14. | 7Y-1431 | [3] | Gear-planetary(30-TIH) | |
| 15. | 094-1528 | [6] | PEMANAS(53X84X1-MM THK) | |
| 16. | 095-0891 | [6] | Pin-SPRING | |
| 17. | 6I-6585 | [3] | Gear-planetary(44-TEETH) | |
| 18. | 094-0616 | [3] | Bantalan AS-roller | |
| 19. | 3E-2338 | [2] | pipa colokan | |
| 20. | 7M-8485 | [2] | SEAL-O-RING | |
| 21. | 7Y-1426 | [1] | PELUAR | |
| 22. | 7Y-0225 | [3] | SHAFT-PLANETARY | |
| 23. | 094-0611 | [6] | PEMANAS(47.3X76X1-MM THK) | |
| 24. | 094-0580 | [1] | PELAT(10-MM THK) | |
| 25. | 6I-6583 | [1] | Gear-SUN(13-TEETH) | |
| 26. | 7Y-1430 | [1] | Gear-SUN(17-TIH) | |
| 27. | 7Y-1558 | [1] | SPACER(90X119.6X7.5-MM THK) | |
| 28. | 7Y-1432 | [1] | Pengangkut | |
| 29. | 7X-2568M | [16] | BOLT(M20X2.5X180-MM) | |
| 30. | 8T-4123 | [16] | PEMANAS(22X35X3.5-MM THK) | |
| 31. | 1U-8846B | SEALANT-GASKET | ||
| 33. | 148-4705 | [1] | GANG-RING(104-TEETH) | |
| 34. | 7Y-1433 | [1] | Pengangkut | |
| 35. | 6D-0692 | [1] | SEAL-O-RING | |
| 36. | 148-4715 | [1] | GANG-CUPLING(55-TEETH) | |
| 37. | 114-1539 | [6] | PIN-DOWEL | |
| 38. | 191-3235 | [1] | Perumahan | |
| 39. | 168-8451 | [2] | Bantalan bola | |
| 40. | 114-1497 | [1] | SEAL GP-DUO-CONE | |
| 41. | 191-3236 | [1] | Perumahan | |
| 42. | 095-1270M | [2] | SETSCREW-SOCKET(M12X1.75X30-MM) | |
| 43. | 148-4708 | [1] | GANG-RING(79-TEETH) | |
| B | Gunakan sesuai kebutuhan | |||
| M | Bagian Metrik | |||
