31N8-40070 31N8-40071 Travel Gearbox 31N8-40072 31N8-40073 31N8-40074 31Q9-40020 31Q9-40021
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | 31N8-40070 Travel Gearbox,31N8-40071 Gearbox perjalanan,31N8-40072 |
||
|---|---|---|---|
Deskripsi Produk

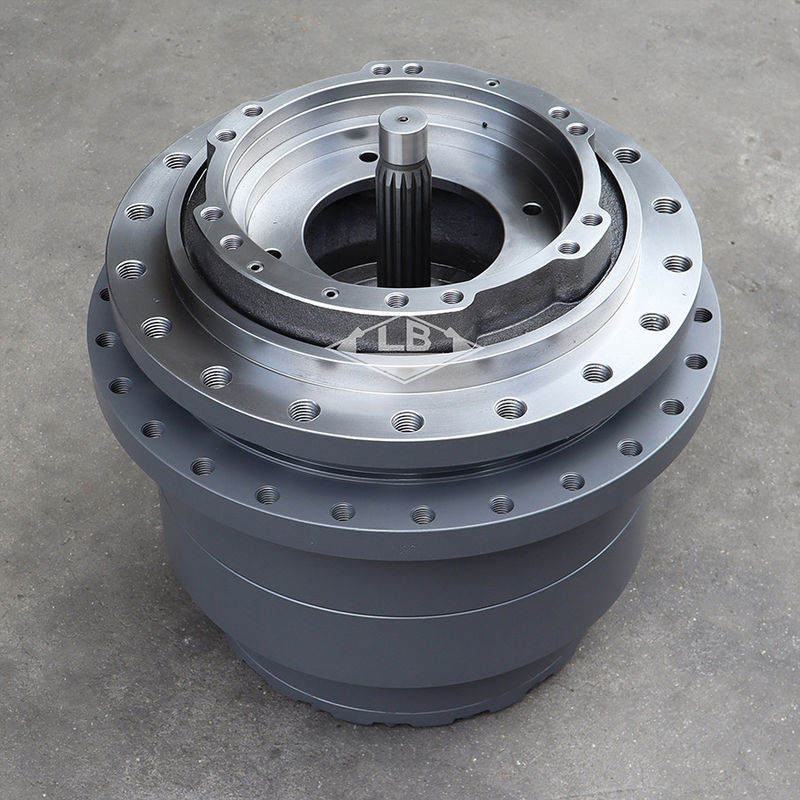

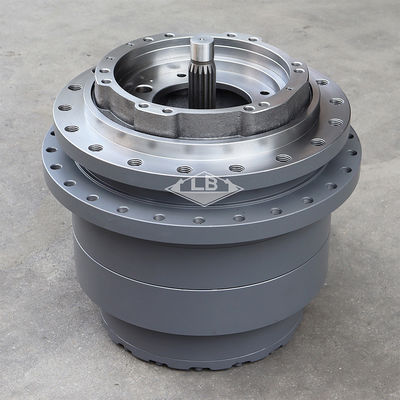

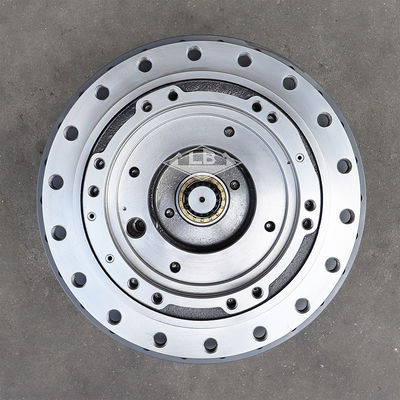

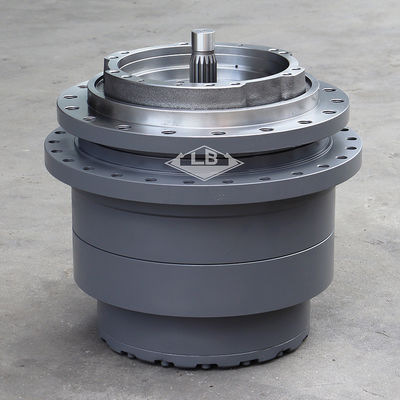

R305-7 R290 R320 Penggerak akhir tanpa motor 31N8-40070 31N8-40071 31N8-40072 31N8-40073 31N8-40074 31Q9-40020 31Q9-40021
Parameter produk
| Pnama seni | R305-7 R290 R320 Gearbox perjalanan | |||||
| Peralatan | Mendaftar untuk HYUNDAI EXKAVATOR | |||||
| Bagian no. | 31N8-40070 31N8-40071 31Q9-40020 | |||||
| Lubang rangka | 18 | |||||
| Lubang roda gigi | 26 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 340kg | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian pada kelompok TRAVEL REDUCTION GEAR ((#0108-):
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| *-2. | 31N8-40070 | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40071 | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40071BG | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40072 | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40073 | [1] | T/REDUCTION GEAR | |
| 2. | XKAQ-00173 | [1] | SEAL-FLOATING | |
| 2. | XKAQ-00803 | [1] | SEAL-FLOATING | |
| 3. | XKAQ-00174 | [1] | Perumahan | |
| 3. | XKAQ-00802 | [1] | Perumahan | |
| 4. | XKAQ-00175 | [2] | Keterangan: | |
| 4. | XKAQ-00175-AS | [2] | Keterangan: | Hanya untuk AS |
| 5. | XKAQ-00176 | [1] | SHIM | Penyakit menular seksual |
| 5. | XKAQ-00992 | [1] | SHIM | 0.5T |
| 5. | XKAQ-00993 | [1] | SHIM | 0.9T |
| 5. | XKAQ-00994 | [1] | SHIM | 1.0T |
| 5. | XKAQ-00995 | [1] | SHIM | 1.2T |
| 6. | XKAQ-00177 | [1] | Pengendali | |
| 7. | XKAQ-00178 | [17] | Bolt-Wrench | |
| 8. | XKAQ-00179 | [1] | Pengangkut ASSY-NO.3 | |
| 8. | XKAQ-00398 | [1] | Pengangkut 3 ASSY | |
| 8-1. | XKAQ-00180 | [1] | Pengangkut-Tidak.3 | |
| 8-1. | XKAQ-00396 | [1] | Pengangkut 3 | |
| 8-2. | XKAQ-00181 | [4] | Gear-Planetary NO.3 | |
| 8-2. | XKAQ-00389 | [4] | Gear 3-Planetary | |
| 8-3. | XKAQ-00182 | [72] | Jarum-Tidak.3 | |
| 8-3. | XKAQ-00390 | [72] | Jarum 3 | |
| 8-4. | XKAQ-00183 | [8] | No. pencetakan cuci.3 | |
| 8-4. | XKAQ-00391 | [8] | WASHER 3-THRUST | |
| 8-5. | XKAQ-00184 | [4] | PIN 3 | |
| 8-6. | XKAQ-00185 | [4] | PIN 3-SPRING | |
| 8-7. | XKAQ-00186 | [1] | Gear 3-SUN | |
| 8-8. | XKAQ-00187 | [1] | Ring 3-SNAP | |
| 8-9. | XKAQ-00651 | [4] | PIN 3-SPRING | |
| 9. | XKAQ-00188 | [1] | Pengangkut ASSY-NO.2 | |
| 9. | XKAQ-00399 | [1] | Pengangkut ASSY 2 | |
| 911, tolong. | XKAQ-00189 | [1] | Pengangkut-Tidak.2 | |
| 911, tolong. | XKAQ-00397 | [1] | Pengangkut 2 | |
| 9-2. | XKAQ-00190 | [3] | Gear-Planetary NO.2 | |
| 9-2. | XKAQ-00392 | [3] | Gear 2-planetary | |
| 9-3. | XKAQ-00191 | [45] | Jarum-Tidak.2 | |
| 9-3. | XKAQ-00393 | [45] | Jarum 2 | |
| 9-4. | XKAQ-00192 | [6] | No. pencetakan cuci.2 | |
| 9-4. | XKAQ-00394 | [6] | WASHER 2-THRUST | |
| 9 sampai 5. | XKAQ-00193 | [3] | PIN 2 | |
| 9-6. | XKAQ-00194 | [6] | PIN 2-SPRING | |
| 9-7. | XKAQ-00195 | [1] | Gear 2-SUN | |
| 9-8. | XKAQ-00196 | [1] | RING 2-SNAP | |
| 9-9. | XKAQ-00650 | [6] | PIN 2-SRPING | |
| 10. | XKAQ-00197 | [1] | Pengangkut ASSY-NO1 | |
| 10. | XKAQ-00400 | [1] | Pengangkut 1 ASSY | |
| 10-1. | XKAQ-00198 | [1] | Pengangkut 1 | |
| 10-2. | XKAQ-00199 | [3] | Gear 1-Planetary | |
| 10 sampai 3. | XKAQ-00200 | [3] | Jaring bantalan | |
| 10-4. | XKAQ-00201 | [6] | Kekuatan pencucian NO1 | |
| 10-4. | XKAQ-00395 | [6] | WASHER 1-THRUST | |
| 10-5. | XKAQ-00202 | [3] | PIN 1 | |
| 11. | XKAQ-00203 | [1] | Gear 1-SUN | |
| 12. | XKAQ-00204 | [3] | PLUG | |
| 13. | XKAQ-00205 | [4] | PIN-LOCK | |
| 14. | XKAQ-00206 | [1] | GANG-RING | |
| 14. | XKAQ-00762 | [1] | GANG-RING | |
| 15. | XKAQ-00207 | [24] | Bolt-Wrench | |
| 16. | XKAQ-00208 | [1] | Kekuatan RING-THRUST | |
| 17. | XKAQ-00209 | [1] | PELUAR | |
| 18. | XKAQ-00210 | [1] | RING 2-THRUST | |
| 19. | XKAQ-00211 | [16] | Bolt-Wrench | |
| 20. | XKAQ-00212 | [1] | Motor-ring | |
| 21. | XKAQ-00213 | [1] | RING 3-THRUST | |
| 22. | XKAQ-00214 | [1] | PAD | |
| 23. | XKAQ-00215 | [1] | Pergaulan | |
| N. | @ | [1] | Bagian-bagian yang tidak disuplai |
