VOE14592003 VOE14613278 Travel Gear Box VOLVO EC700B EC700C Travel Gearbox Final Drive (Sunting)
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | VOE14592003 kotak peralatan perjalanan,kotak gigi perjalanan untuk VOLVO EC700B,VOE14613278 |
||
|---|---|---|---|
Deskripsi Produk

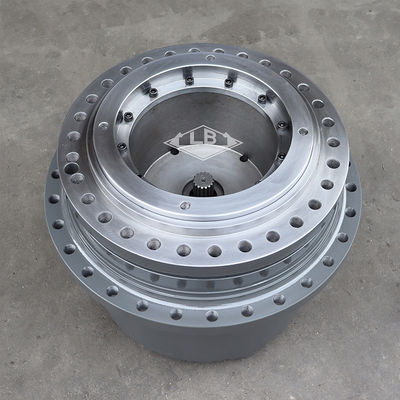

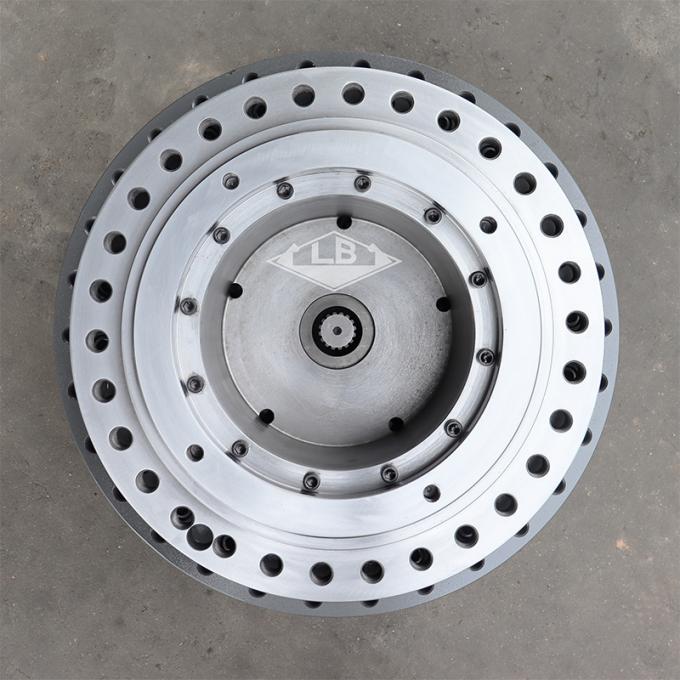

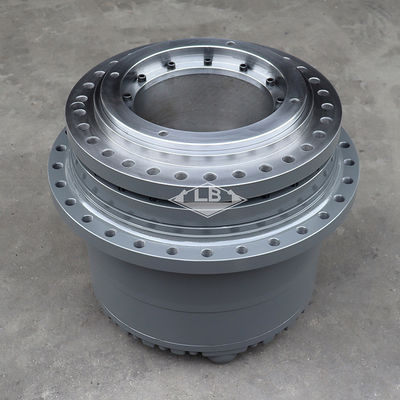

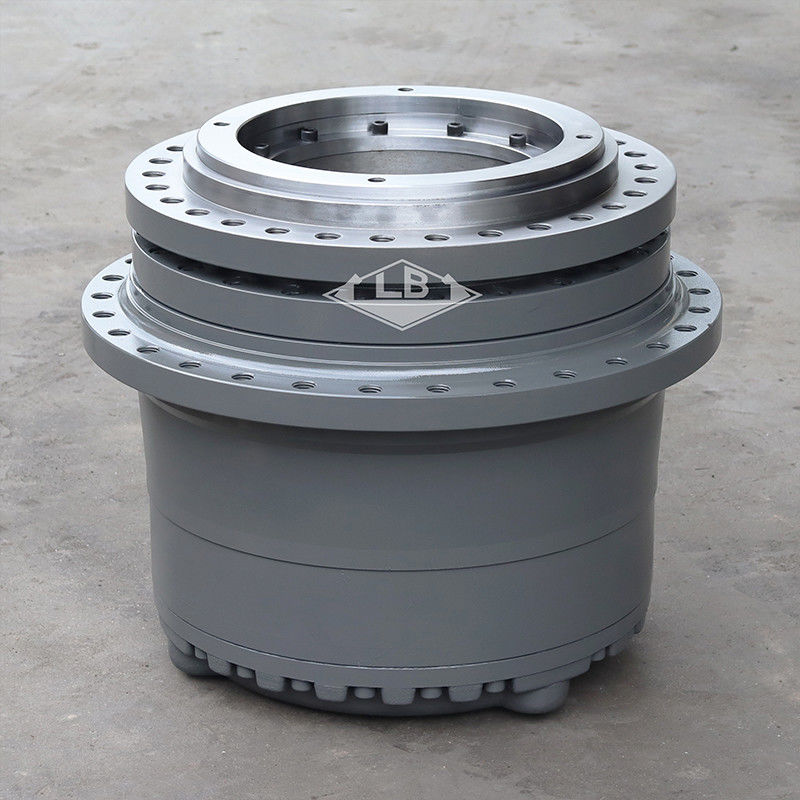

VOLVO EC700B EC700C Travel Gearbox Penggerak akhir VOE14592003 VOE14613278
Parameter produk
| Pnama seni | EC700 Gearbox perjalanan | |||||
| Peralatan | Terapkan pada VOLVO EXKAVATOR | |||||
| Bagian no. | VOE14592003 VOE14613278 | |||||
| Lubang rangka | 30 | |||||
| Lubang roda gigi | 30 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 680 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian pada gearbox grup Travel:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| VOE14592003 | [1] | Peralatan pengurangan | S/N 10467-10606 | |
| VOE14613278 | [1] | Kotak gear perjalanan | S/N 10607- | |
| 1. | VOE14593926 | [1] | Tutup | |
| 2. | VOE14617552 | [2] | Plug | |
| 3. | VOE14535315 | [1] | O-ring | |
| 4. | VOE11701193 | [1] | Mesin cuci gesekan | |
| 5. | VOE14541721 | [1] | Cincin | |
| 6. | VOE14594657 | [1] | Tutup | |
| 7. | VOE14535302 | [21 ] | Pergilah. | |
| 8. | VOE14535307 | [1] | Peralatan | |
| 9. | VOE14535308 | [1] | Peralatan | S/N 10467-10606 |
| VOE14613363 | [1] | Peralatan | S/N 10607- | |
| 10. | VOE14593927 | [1] | Peralatan pengurangan | S/N 10467-10606 |
| VOE14613364 | [1] | Pembawa planet | S/N 10607- | |
| 11. | VOE14541725 | [1] | Cincin | |
| 12. | VOE14541726 | [3] | Clip | |
| 13. | VOE14541727 | [3] | Peralatan planet | |
| 14. | VOE14541728 | [3] | Bantalan | |
| 15. | [1] | Kasus | ||
| 16. | VOE14535310 | [1] | Peralatan pengurangan | S/N 10467-10606 |
| VOE14613365 | [1] | Pembawa planet | S/N 10607- | |
| 17. | VOE14541725 | [1] | Cincin | |
| 18. | VOE14541732 | [4] | Clip | |
| 19. | VOE14541729 | [4] | Peralatan planet | |
| 20. | VOE14541731 | [4] | Bantalan | |
| 21. | VOE14541730 | [1] | Kasus | |
| 22. | VOE14535311 | [1] | Cincin | S/N 10467-10606 |
| VOE14613366 | [1] | Cincin | S/N 10607- | |
| 23. | VOE14535312 | [5] | Clip | ID=70MM |
| 23. | VOE14594974 | [5] | Clip | ID=80MM |
| 24. | VOE14593928 | [5] | Peralatan planet | |
| 25. | VOE14594971 | [1] | Peralatan planet | |
| 26. | VOE14594972 | [1] | Bantalan | |
| 27. | VOE14594973 | [1] | Spacer | |
| 28. | VOE14594974 | [1] | Clip | |
| 29. | VOE14535314 | [5] | Spacer | ID=77MM |
| 29. | VOE14594973 | [5] | Spacer | ID=80MM |
| 30. | VOE14535315 | [1] | O-ring | |
| 31. | VOE14593929 | [1] | Perumahan | |
| 32. | VOE14593930 | [1] | Pergilah. | |
| 33. | VOE14593931 | [1] | Bar | |
| 34. | VOE14593932 | [1] | Kacang | |
| 35. | VOE14535320 | [1] | Peralatan | |
| 36. | VOE14535321 | [2] | Bantalan | |
| 37. | VOE14535322 | [1] | Spacer | |
| 38. | VOE14535323 | [1] | Spacer | |
| 39. | VOE14535324 | [1] | O-ring | |
| 40. | VOE14535325 | [1] | Tutup | |
| 41. | VOE14535326 | [24] | Pergilah. | |
| 42. | VOE14535327 | [1] | Segel | |
| 43. | VOE14593933 | [1] | Cincin | |
| 44. | VOE14593934 | [1] | Hub | |
| 45. | VOE14535331 | [1] | O-ring | |
| 46. | VOE14593935 | [1] | Adaptor | |
| 47. | VOE14593936 | [12] | Pergilah. | |
| 48. | VOE14535334 | [4] | Pergilah. |
