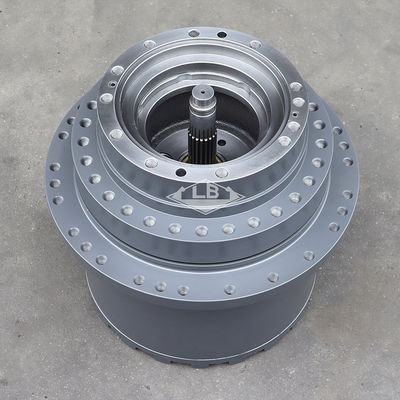

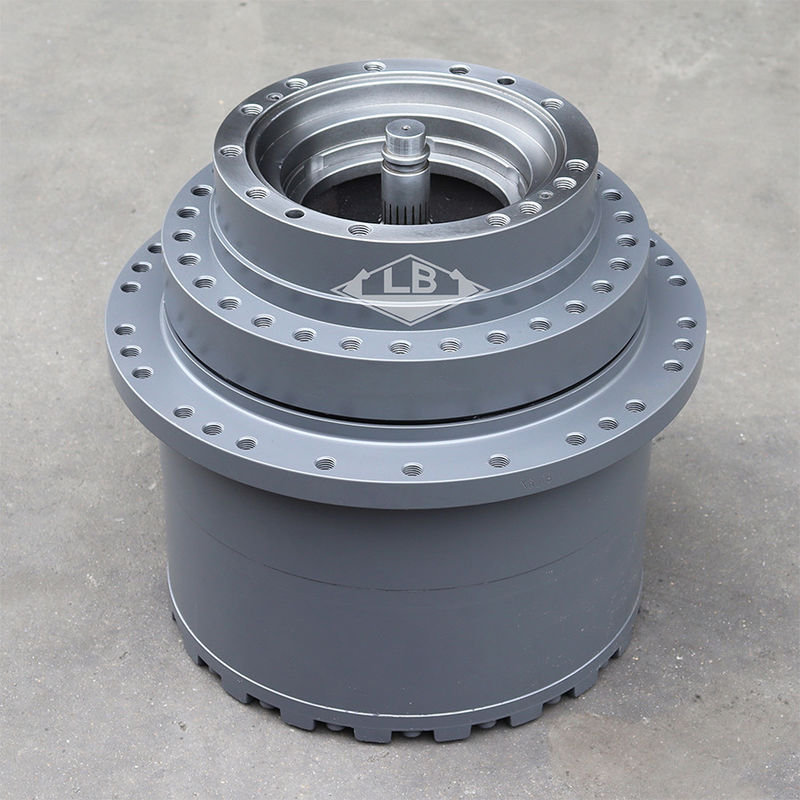

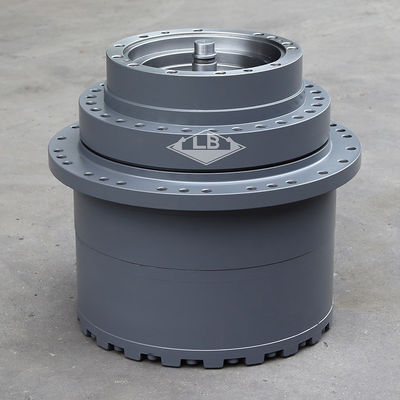

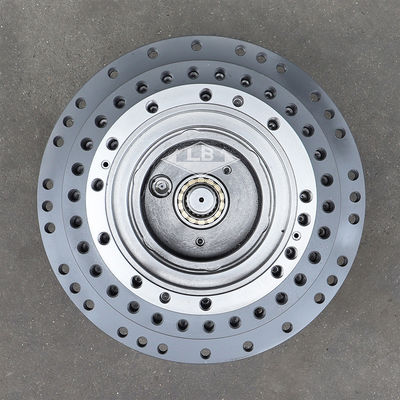

SA7117-30050 EC210 Travel Gear Box VOE14528733 VOE14693056 VOE14693057 DH220-5 EC210 Final Drive
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | SA7117-30050 kotak perlengkapan perjalanan,Kotak gir perjalanan EC210,VOE14528733 |
||
|---|---|---|---|
Deskripsi Produk
DH220-5 EC210 Penggerak akhir VOE14528733 VOE14693056 VOE14693057 SA7117-30050 EC210 Gearbox perjalanan
Parameter produk
| Pnama seni | EC210 DH220-5 Gearbox perjalanan | |||||
| Peralatan | Terapkan pada VOLVO EXKAVATOR | |||||
| Bagian no. | VOE14528733 VOE14693056 VOE14693057 | |||||
| Lubang rangka | 30 | |||||
| Lubang roda gigi | 30 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 240 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian pada gearbox grup Travel:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| VOE14528733 | [1] | Kotak gear perjalanan | S/N -83936/-51379 | |
| VOE14693056 | [1] | Kotak gear perjalanan | S/N 83937-/51380- | |
| 1. | VOE14522475 | [1] | Perumahan | S/N -83936/-51379 |
| VOE14693058 | [1] | Perumahan | S/N 83937-/51380- | |
| 2. | SA7117-30110 | [2] | Bantalan bola | |
| 3. | VOE14729840 | [1] | Segel | |
| 4. | SA7117-30140 | [1] | Shim | 0,1 tebal |
| SA7117-30150 | [1] | Shim | 0,9 tebal | |
| SA7117-30160 | [1] | Shim | 10,0 tebal | |
| SA7117-30170 | [1] | Shim | 1,2 tebal | |
| 5. | SA7117-30130 | [1] | Pengendali | |
| 6. | VOE997446 | [12] | Sekrup heksagon | |
| 7. | SA9324-21212 | [2] | Pin | |
| 8. | SA7117-30190 | [1] | Perlengkapan cincin | |
| 9. | SA7117-30180 | [1] | Kopling fleksibel | |
| 10. | VOE14528723 | [1] | Pembawa planet | |
| 11. | SA7117-30210 | [1] | Pembawa planet | |
| 12. | SA7117-30240 | [4] | Peralatan Planet | |
| 13. | SA7117-30230 | [8] | Pengisi jarum | |
| 14. | SA7117-30220 | [8] | Mesin pencuci dorongan | |
| 15. | VOE14528724 | [4] | Pin | |
| 16. | SA9325-06012 | [4] | Pin pegas | |
| 17. | SA7117-30260 | [1] | Cincin dorong | |
| 18. | VOE14528727 | [1] | Pembawa planet | |
| 19. | VOE14528728 | [1] | Pembawa planet | |
| 20. | SA7117-30290 | [1] | Peralatan matahari | |
| 21. | SA7117-30300 | [1] | Cincin | |
| 22. | SA7117-30340 | [3] | Peralatan planet | |
| 23. | SA7117-30320 | [3] | Pengisi jarum | |
| 24. | SA7117-30310 | [6] | Mesin pencuci dorongan | |
| 25. | SA7117-30360 | [3] | Pin | |
| 26. | VOE951955 | [3] | Pin pegas | |
| 27. | SA7117-30260 | [1] | Cincin dorong | |
| 28. | VOE14602566 | [1] | Tutup | |
| 29. | SA7117-15230 | [1] | Pad | |
| 30. | SA7117-30370 | [20] | Sekrup heksagon | |
| 31. | SA9023-11004 | [2] | Set sekrup | |
| 32. | VOE14883848 | [0002] | Plug | |
| 33. | SA7117-30330 | [1] | Peralatan matahari | |
| 34. | VOE983524 | [0002] | O-ring | |
| 100. | VOE14526220 | [1] | Kit perbaikan |
