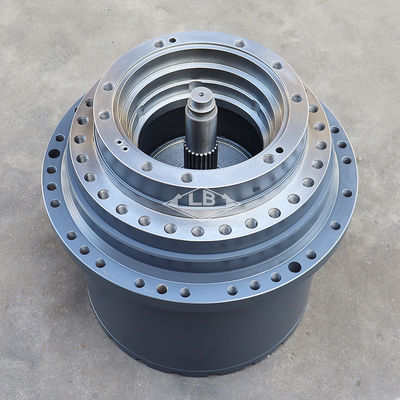

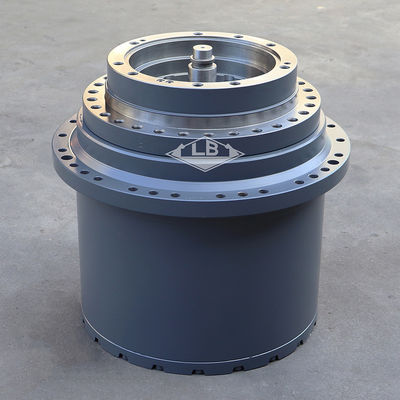

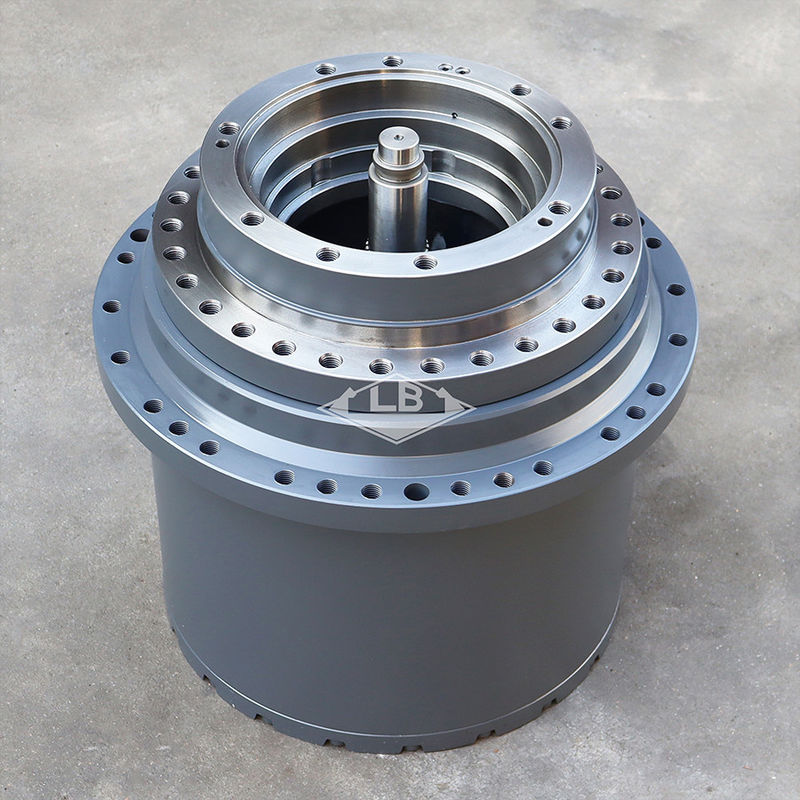

XKAH-00901 XKAH-01627 R210 HYUNDAI Travel Gearbox R210-7 R250-7 Final Drive Travel Reduction Gear
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | gearbox perjalanan hyundai,XKAH-01627 Travel Gearbox,R250-7 Peralatan pengurangan perjalanan |
||
|---|---|---|---|
Deskripsi Produk
R210-7 R250-7 Penggerak akhir Gear pengurangan perjalanan XKAH-00901 XKAH-01627 R210 Gearbox perjalanan
Parameter produk
| Pnama seni | R110-7R140LC-7R180LC-7R210LC-7R250LC-7Kotak gear perjalanan | |||||
| Peralatan | Mendaftar untuk HYUNDAI EXKAVATOR | |||||
| Bagian no. | XKAH-00901 XKAH-01627 | |||||
| Lubang rangka | 30 | |||||
| Lubang roda gigi | 30 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 265 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian pada kelompok GERRING REDUCTION TRAVEL ((TYPE 1, #0473-):
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| * | @ | [1] | ASSY MOTOR Perjalanan | SEE 4122 |
| *-7. | XKAH-00901 | [1] | REDUCTION GEAR ASSY | |
| *-7. | XKAH-01627 | [1] | REDUCTION GEAR ASSY | |
| *-71. | XKAH-00902 | [1] | Hub ASSY | |
| *-71. | XKAH-01670 | [1] | Hub ASSY | |
| N1. | XKAH-00903 | [1] | Hub | |
| N1. | XKAH-01671 | [1] | Hub | |
| 4. | XKAH-00904 | [1] | RING GEAR ((A) | |
| 4. | XKAH-01672 | [1] | RING GEAR ((A) | |
| 27. | XKAH-00431 | [10] | PIN-PARALEL | |
| *-72. | XKAH-00905 | [1] | Spindle ASSY | |
| N2. | XKAH-00906 | [1] | Spindle ASSY | |
| 8. | XKAH-00907 | [1] | GERANG PEMANGKAT | |
| 35. | XKAH-00428 | [10] | BOLT-SOCKET | |
| 17. | XKAH-00437 | [10] | PIN | |
| *-73. | XKAH-00908 | [1] | Pengangkut ASSY | |
| 3. | XKAH-00909 | [1] | Pengangkut | |
| 6. | XKAH-00910 | [3] | GERAS KULUS | |
| 9. | XKAH-00911 | [3] | SHAFT | |
| 14. | XKAH-00912 | [6] | KEKERJAAN KOLER | |
| 25. | XKAH-00913 | [6] | Jaring bantalan | |
| 5. | XKAH-00914 | [1] | RING GEAR ((B) | |
| 7. | XKAH-00445 | [1] | Gear-SUN | |
| 12. | XKAH-00442 | [1] | DISTANSI PERHATIAN | |
| 13. | XKAH-00915 | [1] | PELUAR | |
| 13. | XKAH-01674 | [1] | PELUAR | |
| 15. | XKAH-00439 | [1] | RING | |
| 19. | XKAH-00022 | [1] | Pergaulan | |
| 20. | XKAH-00436 | [2] | Plate-thrust | |
| 23. | XKAH-00435 | [1] | Seal-RING | |
| 24. | XKAH-00434 | [2] | Ball-Bearing | |
| K26. | XKAH-00916 | [2] | SEAL-FLOATING | |
| K26. | XKAH-01675 | [2] | SEAL-FLOATING | |
| K29. | XKAH-00028 | [1] | O-RING | |
| 30. | XKAH-00338 | [3] | PLUG-PT | |
| 30. | XKAH-00032 | [3] | PLUG-PF | |
| 32. | XKAH-00430 | [20] | BOLT-HEX | |
| 32. | XKAH-01676 | [20] | Socket Bolt | |
| 33. | XKAH-00336 | [20] | PEMBAHASAN-PEMBUAT | |
| 34. | XKAH-00429 | [3] | PIN-PARALEL | |
| 36. | XKAH-00033 | [1] | Baja bola | |
| K39. | XKAH-00194 | [2] | O-RING | |
| K40. | XKAH-00427 | [1] | O-RING | |
| K. | XKAH-01077 | [1] | SEAL KIT | Lihat ILLUST |
| N. | @ | [1] | Bagian-bagian yang tidak disuplai |
