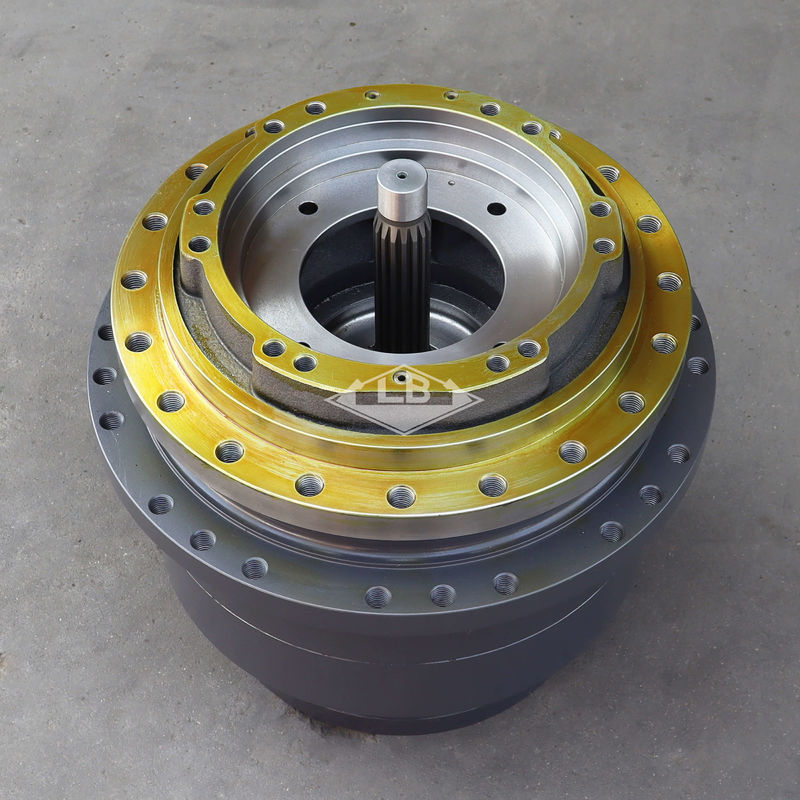

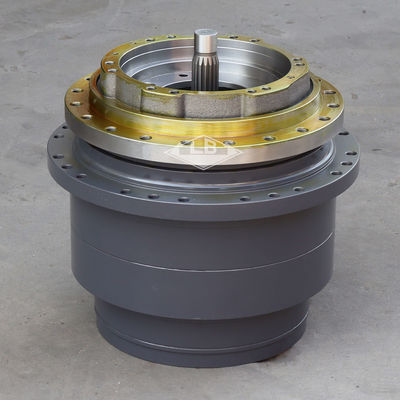

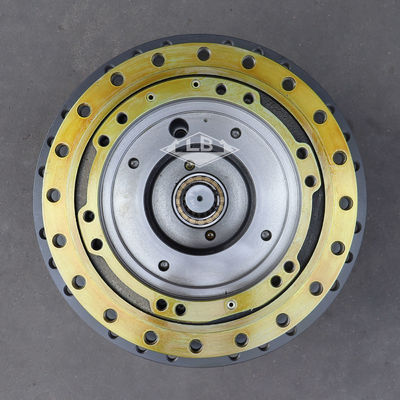

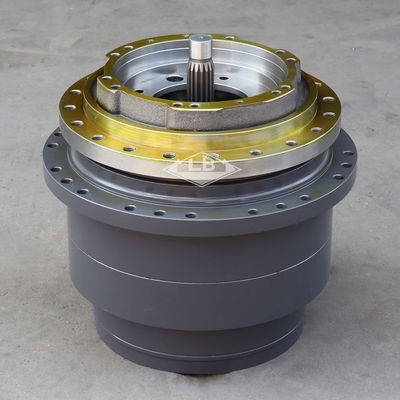

404-00098B 404-00100 170402-00009 Gearbox perjalanan DX300 SOLAR300 Gerakan pengurangan perjalanan
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | 404-00098B Gearbox perjalanan,404-00100 Gearbox perjalanan,Peralatan Pengurangan Perjalanan SOLAR300 |
||
|---|---|---|---|
Deskripsi Produk
DX300 SOLAR300 Gear pengurangan perjalanan 404-00098C 404-00098B 404-00100 170402-00009 Gearbox perjalanan
Parameter produk
| Pnama seni | DX300 SOLAR300 Gearbox perjalanan | |||||
| Peralatan | Berlaku untuk DOOSAN EXKAVATOR | |||||
| Bagian no. | 404-00098C 404-00098B 404-00100 170402-00009 | |||||
| Lubang rangka | 20 | |||||
| Lubang roda gigi | 24 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 340 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian dari kelompok SOLAR 300LC-7A:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| -. | 404-00098C | [1] | GERRY REDUCTION TRAVEL | |
| 10. | K1003028 | [1] | KIT; CARRIER NO.2 | |
| 10A. | K1000713 | [1] | Pengangkut No.2 | |
| 10B. | K9000795 | [3] | Gear;Planetary NO.2 | |
| 10C. | K9000796 | [6] | WASHER; THRUST NO.2 | |
| 10D. | K9000797 | [3] | Nomor PIN.2 | |
| 10E. | K1000719 | [45] | Roller; jarum | |
| 10G. | S5740900 | [3] | PIN;SPRING | |
| 14. | K9000798 | [1] | Gear;SUN NO.2 | |
| 15. | K1003027 | [1] | KIT; CARRIER NO.1 | |
| 15A. | K1000712 | [1] | Pengangkut No.1 | |
| 15B. | K9000799 | [3] | Gear;Planetary NO.1 | |
| 15C. | K9000800 | [6] | WASHER; THRUST NO.1 | |
| 15D. | K9000801 | [3] | Nomor PIN.1 | |
| 15E. | K1000720 | [3] | Bantalan; rol jarum | |
| 15G. | S5740650 | [3] | PIN;SPRING M4X20 | |
| 19. | K9000802 | [1] | Gear;SUN NO.1 | |
| 2. | K1000707A | [1] | Perumahan | |
| 20. | K9000803 | [4] | PIN; DOWEL | |
| 21. | K9000804 | [1] | Gear;RING | |
| 22. | K9000805 | [1] | WASHER; THRUST NO.4 | |
| 23. | K1000716 | [1] | PELUAR | |
| 24. | K9000806 | [1] | GASKET | |
| 27. | K9000807 | [1] | BUSHING;THUST NO.3 | |
| 28. | K9000808 | [1] | BUSHING;THUST NO.2 | |
| 29. | K9000809 | [1] | BUSHING;THUST NO.1 | |
| 3. | K9000789A | [1] | STOPPER | |
| 30. | K9000810 | [1] | BUSHING;THUST NO.4 | |
| 31. | K9000811 | [1] | BUSHING; Minyak | |
| 32. | K9000812 | [1] | Pergaulan | |
| 33. | K9000813 | [2] | Bantalan; sudut | |
| 35. | 2180-6059 | [1] | SEAL;FLOATING | |
| 36. | S6501150 | [1] | RING; SNAP | |
| 37. | S6501100 | [1] | RING; SNAP | |
| 39. | V2180-1217D174 | [1] | O-RING | |
| 4. | K9000790 | [1] | Bantalan;PENGANTAR | |
| 40. | S2212061 | [32] | BOLT;SOCKET M10X1.5X25 | |
| 42. | S2219661 | [24] | Bolt; Socket M14X100 | |
| 43. | S2215061 | [17] | BOLT;SOCKET M12X1.75X25 | |
| 45. | 2181-1890D3 | [3] | PLUG | |
| 46. | S8000141 | [3] | O-RING | |
| 5. | K1003029A | [1] | KIT; CARRIER NO.3 | |
| 5A. | K9001290 | [1] | Pengangkut No.3 | |
| 5B. | K9000791 | [4] | Gear;Planetary NO.3 | |
| 5C. | K9000792 | [8] | WASHER; THRUST NO.3 | |
| 5D. | K9001291 | [4] | Nomor PIN.3 | |
| 5E. | K1000718 | [72] | Roller; jarum | |
| 5G. | S5741240 | [4] | PIN;SPRING | |
| 9. | K9000794 | [1] | Gear;SUN NO.3 |
