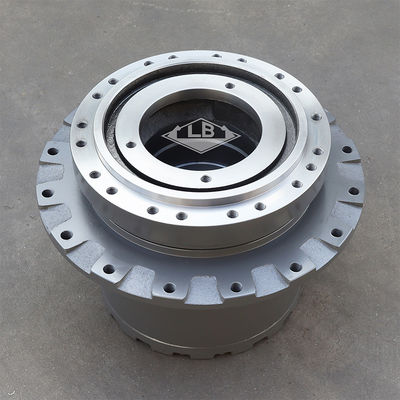

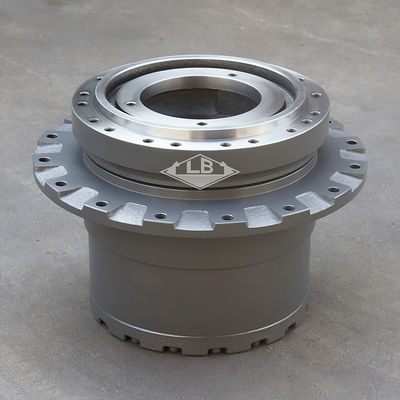

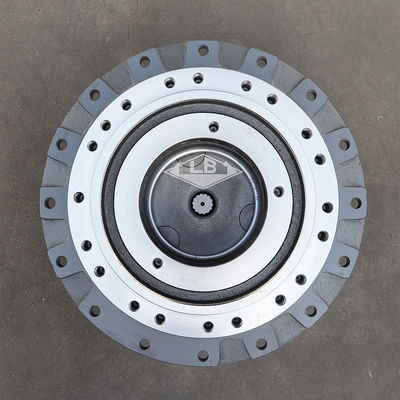

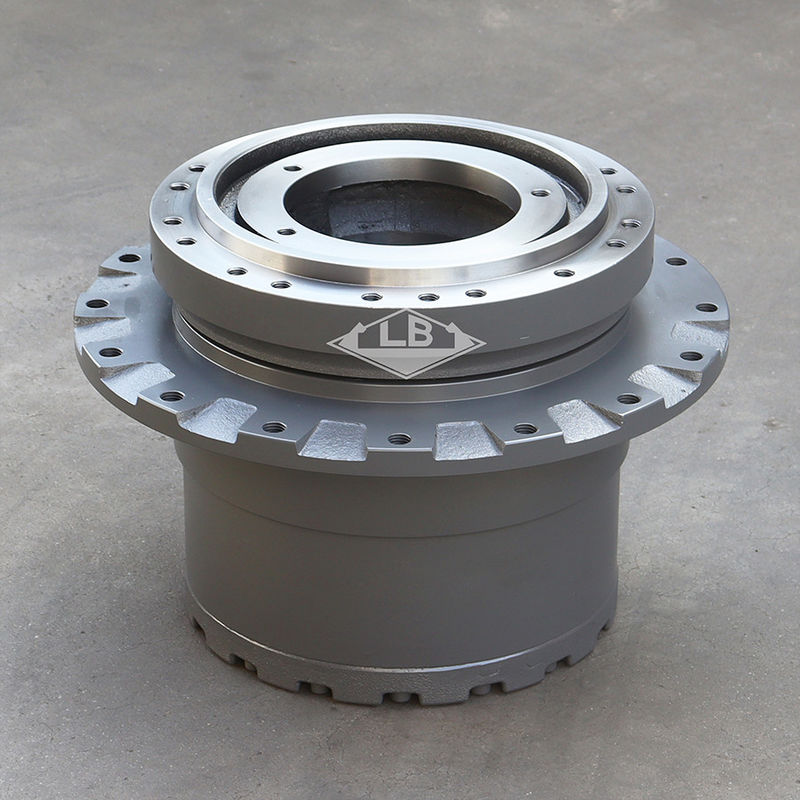

210-3529 2103529 Travel Gearbox E EXCAVATOR E315C E315D E315C E315D
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | 210-3529 Gearbox perjalanan,Gearbox perjalanan 230KG,E315C |
||
|---|---|---|---|
Deskripsi Produk
E315C E315D E315C E315D 210-3529 2103529 Gearbox perjalanan
Parameter produk
| Pnama seni | E315 Gearbox perjalanan | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 210-3529 | |||||
| Lubang rangka | 20 | |||||
| Lubang roda gigi | 16 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 230 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian untuk 315C Excavator Anda:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 165-5785 | [1] | SPACER(40X60.9X1-MM THK) | |
| 2. | 096-1773B | [1] | SHIM(0,15-MM THK) | |
| 096-1774B | [1] | SHIM(0.3-MM THK) | ||
| 096-1775B | [1] | SHIM(0.4-MM THK) | ||
| 096-1776B | [1] | SHIM(0.5-MM THK) | ||
| 096-1777B | [1] | SHIM(0.6-MM THK) | ||
| 096-1778B | [1] | SHIM(0.7-MM THK) | ||
| 096-1779B | [1] | SHIM(0.8-MM THK) | ||
| 096-1780B | [1] | SHIM(1-MM THK) | ||
| 096-1781B | [1] | SHIM(1.6-MM THK) | ||
| 11. | 227-6034M | [16] | Kepala Bolt-Flanges(M16X2X60-MM) | |
| 12. | 165-5786 | [3] | SHAFT | |
| 13. | 094-1542 | [6] | Berkas-Roller | |
| 14. | 165-5787 | [3] | Gear-planetary | |
| 15. | 094-1528 | [6] | PEMANAS(53X84X1-MM THK) | |
| 16. | 095-0891 | [6] | Pin-SPRING | |
| 17. | 165-5788 | [3] | Gear-planetary | |
| 18. | 094-0616 | [3] | Bantalan AS-roller | |
| 19. | 3E-2338 | [2] | pipa colokan | |
| 20. | 7M-8485 | [2] | SEAL-O-RING | |
| 21. | 165-5790 | [1] | PELUAR | |
| 22. | 7Y-0225 | [3] | SHAFT-PLANETARY | |
| 23. | 094-0611 | [6] | PEMANAS(47.3X76X1-MM THK) | |
| 24. | 094-0580 | [1] | PELAT(10-MM THK) | |
| 25. | 165-5792 | [1] | Gear-SUN | |
| 26. | 165-5793 | [1] | Gear-SUN | |
| 27. | 165-5794 | [1] | SPACER(72X101X7-MM THK) | |
| 28. | 165-5795 | [1] | Pengangkut | |
| 29. | 8T-7929M | [16] | BOLT(M12X1.75X180-MM) | |
| 30. | 8T-4223 | [16] | Hard untuk mencuci(13.5X25.5X3-MM THK) | |
| 31. | 095-1299 | [3] | Dowell | |
| 32. | 165-3892 | [1] | GANG-RING | |
| 33. | 165-5796 | [1] | Pengangkut | |
| 34. | 165-5797 | [1] | Gear | |
| 35. | 165-5800 | [1] | PEMANAS(241X282X3-MM THK) | |
| 36. | 210-3530 | [1] | Perumahan | |
| 37. | 114-1539 | [4] | PIN-DOWEL | |
| 38. | 168-8451 | [2] | Bantalan bola | |
| 39. | 210-3531 | [1] | Rumah-Motor | |
| 40. | 114-1497 | [1] | SEAL GP-DUO-CONE | |
| 41. | 1U-8846B | SEALANT-GASKET |
