Detail produk:

Harga terbaik Kontak

Informasi Detail
Menyoroti:

39Q8-42101 kotak peralatan perjalanan

,

R300-9 kotak gear perjalanan

,

39Q8-42100

Deskripsi Produk

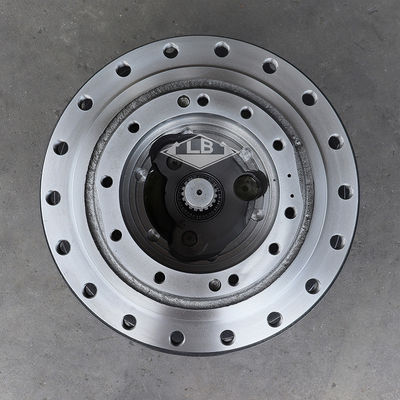

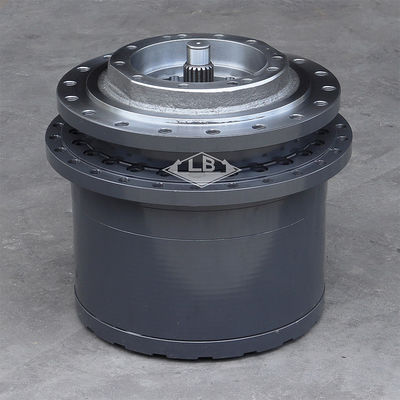

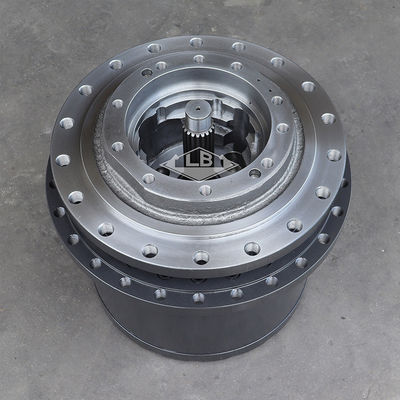

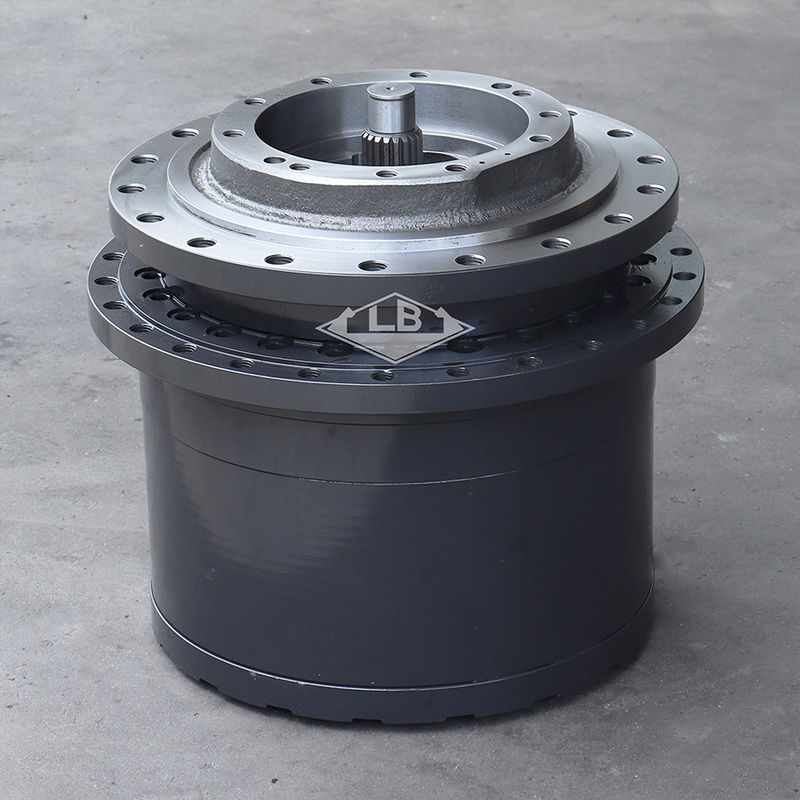

R300 R300-9 R320-9 R330-9 Final drive 39Q8-42100 39Q8-42101 R300-9 Travel gearbox

Parameter produk
Pnama seni R300-9 Gearbox perjalanan
Peralatan Mendaftar untuk HYUNDAI EXKAVATOR
Bagian no. 39Q8-42100 39Q8-42101
Lubang rangka 18
Lubang roda gigi 26
Kondisi barang Baru
Logo LB
Berat kotor 345 KG
MOQ 1 pcs

Deskripsi Produk

39Q8-42100 39Q8-42101 R300-9 Travel Gear Box R300 R300-9 R320-9 R330-9 Final Drive 039Q8-42100 39Q8-42101 R300-9 Travel Gear Box R300 R300-9 R320-9 R330-9 Final Drive 1

Bagian-bagian pada kelompok GERRY REDUCTION TRAVEL ((TYPE 2,3):

39Q8-42100 39Q8-42101 R300-9 Travel Gear Box R300 R300-9 R320-9 R330-9 Final Drive 2

Posisi. Bagian No. Qty Nama bagian Komentar
* @ [1] ASSY MOTOR Perjalanan SEE 4135, 4136
N*-2. 39Q8-42100 [1] GERRY REDUCTION TRAVEL
N*-2. 39Q8-42101 [1] GERRY REDUCTION TRAVEL
1. 39Q8-42110 [1] GANG-RING
2. 39Q8-42120 [2] Berlangsung-ANG. bola
3. 39Q8-42130 [2] SEAL ASSY-FLOATING
4. 39Q8-42140 [1] RING-NUT
5. 39Q8-42150 [1] PLATE-LOCK
6. S017-120206 [4] BOLT-HEX
7. 39Q8-42160 [1] Perumahan
8. S129-070206 [22] Bolt-Socket, bersatu
9. 39Q8-42170 [1] Pergaulan
9. 39Q8-42171 [1] Pergaulan
K10. 39Q8-42190 [1] Pengangkut 2
K11. 39Q8-42200 [3] Gear-Planetary 2
K12. 39Q8-42210 [3] Jaring bantalan
K13. 39Q8-42220 [6] WASHER-THRUST 2
K14. 39Q8-42230 [3] Pembawa PIN 2
K15. XKBR-00128 [3] PIN-SPRING 2
K16. 39Q8-42240 [3] PIN-SOLID
17. 39Q8-42250 [1] Gear-SUN 2
K18. 39Q8-42270 [1] Pengangkut 1
K19. 39Q8-42280 [3] Gear-Planetary 1
K20. 39Q8-42290 [3] Jarum bantalan 1
K21. 39Q8-42300 [6] Kekuatan pencuci 1
K22. 39Q8-42310 [3] PIN-CARRIER 1
K23. S472-600504 [3] Pin-SPRING
24. 39Q8-42320 [1] Gear-SUN 1
25. 39Q6-42320 [1] Plate-thrust
26. 39Q8-42330 [1] Plate-thrust
27. 39Q8-42340 [1] PELUAR
28. S109-18140D [25] Kepala soket BOLT-HEX
N28. S109-18140V [25] BOLT-SOCKET
29. P220-110205 [3] PLUG-HEX
30. S602-045001 [1] Pengendalian cincin,TIPU C
31. 39Q8-42350 [1] NAME PLATE (Plat Nama)
32. 39Q6-41800 [2] RIVET
33. S631-024001 [3] O-RING
K. 39Q8-42180 [1] Pengangkut ASST KIT 2 Lihat ILLUST
K. 39Q8-42260 [1] Pengangkut ASST KIT 1 Lihat ILLUST
