Deskripsi Produk

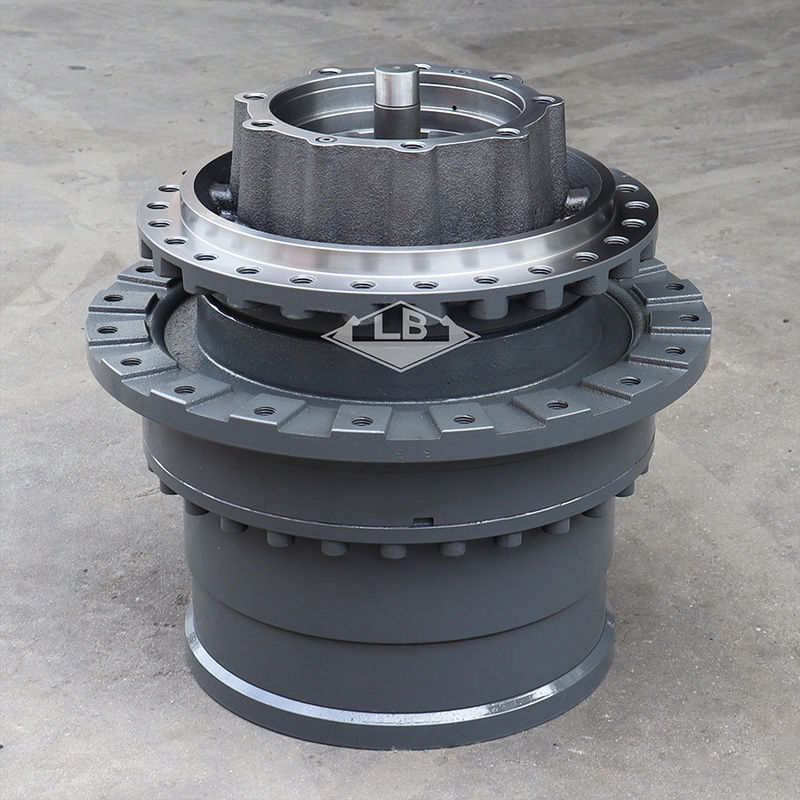

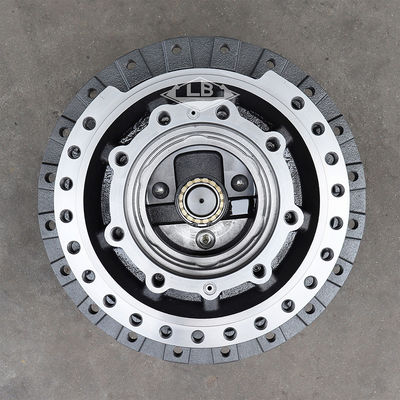

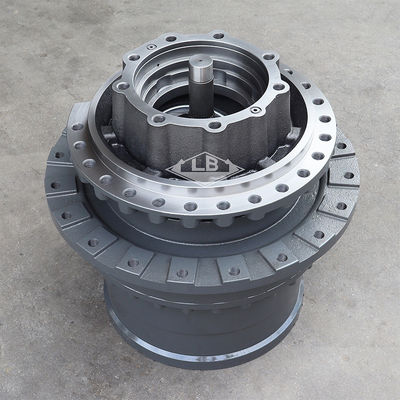

ZX330-1 Penggerak akhir Gearbox pengurangan perjalanan 9190221 9212584 9190222 9232360 ZX330-1 Gearbox perjalanan
Parameter produk
| Pnama seni | ZX330-1 Gearbox perjalanan | |||||
| Peralatan | Mendaftar untuk HITACHI EXKAVATOR | |||||
| Bagian no. | 9190221 9212584 9190222 9232360 | |||||
| Lubang rangka | 20 | |||||
| Lubang roda gigi | 20 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 360 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian pada kelompok Perangkat Perjalanan:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 9190221 | [2] | Perangkat Perjalanan | Aku 9190222 | |
| 9212584 | [2] | Perangkat Perjalanan | Aku 9232360 (untuk perakitan mesin) | |
| 9190222 | [2] | Perangkat Perjalanan | ||
| 9232360 | [2] | Perangkat Perjalanan | (untuk transportasi) | |
| 00. | 9190296 | [1] | MOTOR OIL | Aku 9195488 |
| 00. | 9213431 | [1] | MOTOR OIL | Aku 9231673 (untuk perakitan mesin) |
| 00. | 9195488 | [1] | MOTOR OIL | |
| 00. | 9231673 | [1] | MOTOR OIL | (untuk transportasi) |
| 02. | 1022194 | [1] | Perumahan | |
| 03. | 4066695 | [1] | SEAL; GROUP | |
| 04. | 4192975 | [2] | BRG.; ROL. | |
| 05. | 1022179 | [1] | Drum | |
| 06. | 1022168 | [1] | SPROCKET | |
| 07. | A590920 | [20] | PEMANAS;SEMBAH | |
| 08. | J932060 | [20] | BOLT | |
| 10. | 3036256 | [1] | NUT | |
| 10. | 3094717 | [1] | NUT | |
| 11. | 4192974 | [1] | PLATE;LOCK | |
| 11. | 4470326 | [1] | PLATE;LOCK | |
| 12. | J901222 | [2] | BOLT | |
| 12. | J901225 | [2] | BOLT | |
| 14. | 1022198 | [1] | Pengangkut | |
| 15. | 4401293 | [3] | SPACER | |
| 16. | 3075003 | [3] | Gear;Planetary | |
| 18. | 4269470 | [6] | PLATE;THRUST | |
| 19. | 4269452 | [3] | PIN | |
| 20. | 4192021 | [3] | PIN;SPRING | |
| 21. | 3075005 | [1] | Gear;SUN | |
| 22. | 4455088 | [6] | BRG.; jarum | |
| 23. | 1022195 | [1] | Gear;RING | |
| 24. | J931640 | [28] | BOLT | |
| 26. | 1022197 | [1] | Pengangkut | |
| 27. | 3075002 | [3] | Gear;Planetary | |
| 28. | 4455099 | [3] | BRG.; jarum | |
| 29. | 4284521 | [6] | PLATE;THRUST | |
| 30. | 4269451 | [3] | PIN | |
| 31. | 4197763 | [3] | PIN;SPRING | |
| 32. | 3074989 | [1] | Gear;SUN | |
| 34. | 1022196 | [1] | Pengangkut | |
| 36. | 3075001 | [3] | Gear;Planetary | |
| 37. | 4455098 | [3] | BRG.; jarum | |
| 38. | 4284520 | [6] | PLATE;THRUST | |
| 39. | 4269472 | [3] | PIN | |
| 40. | 4192020 | [3] | PIN;SPRING | |
| 41. | 2038915 | [1] | SHAFT;PROP. | |
| 41. | 2048000 | [1] | SHAFT;PROP. | |
| 43. | 2045031 | [1] | PELUAR | |
| 44. | 4277474 | [1] | PIN;STOPPER | |
| 45. | 4278168 | [1] | BRG.; bola | |
| 46. | 930451 | [1] | RING;RETENING | |
| 47. | J011230 | [16] | BOLT;SEMS | |
| 47. | 4609016 | [16] | BOLT;SEMS | |
| 48. | 4245797 | [3] | PLUG | |
| 50. | 4269473 | [1] | O-RING | |
| 51. | 4287213 | [4] | PEMANAS;SEMBAH | |
| 52. | M341885 | [4] | BOLT;SOCKET | |
| 54. | 3053559 | [1] | NAME-PLATE | |
| 55. | M492564 | [2] | Screw; Drive |
