Informasi Detail |
|||
| Menyoroti: | Gearbox Ayunan Excavator,Perlengkapan Pengurang Ayunan,Swing Drive Gearbox |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk

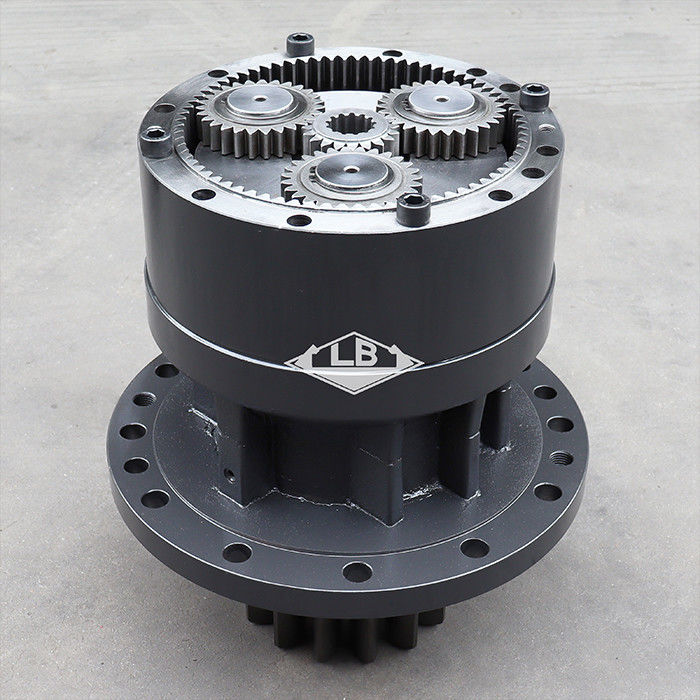

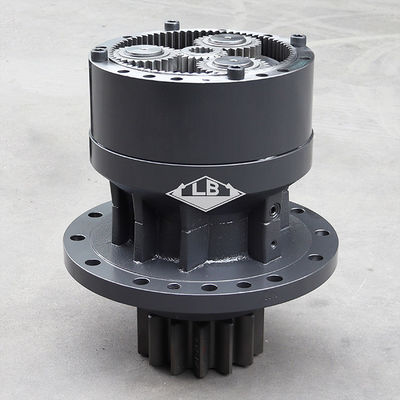

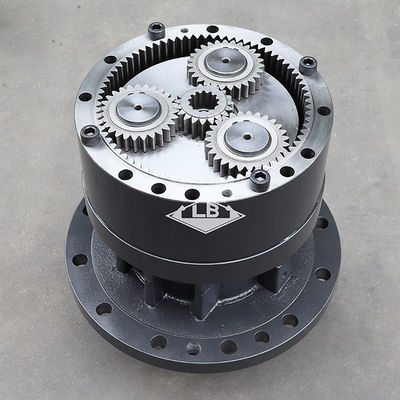

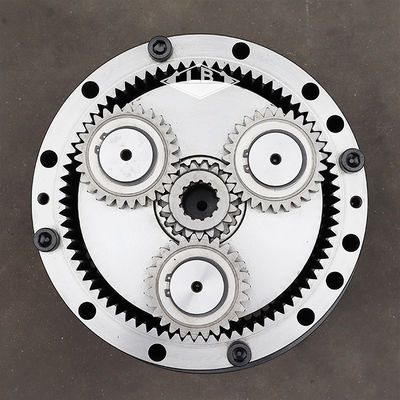

| Pnama seni | DX255 DX260 swing gearbox | |||||
| Peralatan | Berlaku untuk DOOSAN EXKAVATOR | |||||
| Bagian no. | K1004037A | |||||
| NO.1 gigi spline gear matahari | 13 spline | |||||
| Gigi poros swing pinion | 14T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 290KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi produk
Bagian pada kelompok DX255LC:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| -. | K1004037A | [1] | REDUCTION GEAR; Swing | |
| 1. | K1004038B | [1] | SHAFT | |
| 10. | K1004040B | [1] | Gear;SUN NO.1 | |
| 11. | K1002548 | [3] | Gear;Planet NO.1 | |
| 12. | K1002549 | [3] | Plat;SIDE | |
| 13. | K1002550 | [3] | PIN | |
| 14. | K1006981 | [1] | Gear;RING | |
| 15. | K1002552 | [1] | PLATE;THRUST | |
| 17. | K1003384A | [4] | PIN; LOCK | |
| 18. | K1002554A | [1] | SPACER | |
| 19. | K1004041A | [1] | KOLER | |
| 2. | K1002539A | [1] | Pengadilan | |
| 20. | K1002556 | [1] | PELAT | |
| 21. | K1002558 | [1] | RING;LOCK | |
| 22. | K1002559 | [1] | Keterangan: | |
| 23. | K1003682A | [1] | Keterangan: | |
| 24. | K1005719 | [1] | SEAL; Minyak | |
| 25. | S5741361 | [4] | PIN;SPRING | |
| 26. | 2181-1116D4 | [1] | PLUG | |
| 27. | S5810010 | [3] | PLUG | |
| 28. | K1004042A | [1] | Gear;PINION | |
| 29. | S2226671 | [12] | BOLT;SOCKET | |
| 3. | K1002540A | [1] | Pengangkut No.2 | |
| 30. | 140-01343A | [1] | PIPE | |
| 31. | 119-00020 | [1] | BAR;LEVEL | |
| 32. | K1002567 | [3] | Plat;SIDE | |
| 33. | S6500600 | [3] | . cincin, penjaga | |
| 34. | 2120-1363 | [4] | BOLT | |
| 35. | 2403-1039A | [1] | PLATE;LOCK | |
| 36. | 2126-9001 | [1] | WIRE | |
| 37. | K1003386 | [3] | BUSH | |
| 4. | K1002541A | [1] | Gear;SUN NO.2 | |
| 40. | K9004901 | [1] | Pengangkut No.1 ASS'Y | |
| 41. | K9004902 | [1] | Pengangkut No.2 ASS'Y | |
| 5. | K1002542 | [4] | Gear;Planet NO.2 | |
| 6. | K1002543 | [4] | Plat; NO. sisi.2 | |
| 7. | K1002544 | [4] | PIN | |
| 8. | K1002545 | [4] | BUSH | |
| 9. | K1002546 | [1] | Pengangkut No.1 |
