Deskripsi Produk

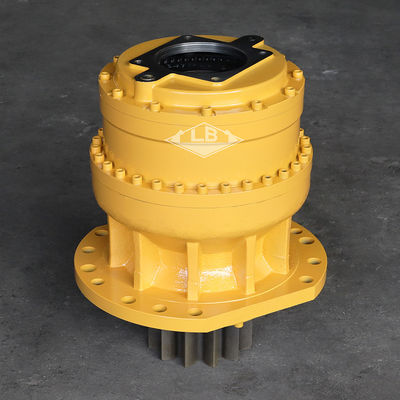

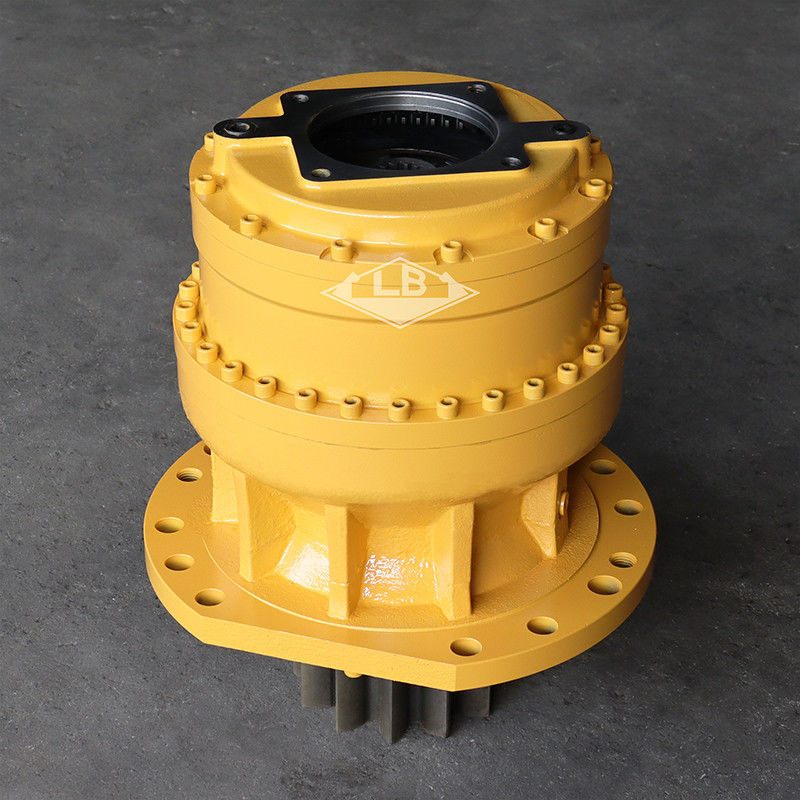

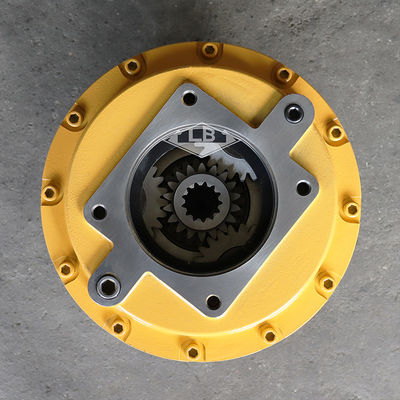

E 418-7155 470-0474 E349D2 Swing drive E349D2 Swing gearbox
Parameter produk
| Pnama seni | E 349D2 Swing gearbox | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 418-7155 470-0474 | |||||
| NO.1 gigi spline gear matahari | 13 spline | |||||
| Gigi poros swing pinion | 12 T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | ||||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian untuk 349D2 EXCAVATOR Anda:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 4H-6112 | [1] | Bernafas(Swing Drive) | |
| 2. | 6V-7238 | [1] | VALVE-SHUT-OFF | |
| 3. | 7Y-0597 | [1] | SPACER-SPECIAL | |
| 4. | 094-0611 | [14] | PEMANAS(47.3X76X1-MM THK) | |
| 5. | 114-1398 | [1] | Pengukur-tingkat minyak(Swing Drive) | |
| 6. | 114-1399 | [1] | PIPE-GAUGE | |
| 7. | 114-1403 | [1] | KAU | |
| 8. | 227-6108 | [1] | SHAFT-PINION | |
| 9. | 227-6215 | [1] | BOS(1/4-18-THD) | |
| 10. | 296-6268 | [3] | Bantalan AS-roller | |
| 11. | 418-7160 | [1] | Gear-SUN(13-TIH, 18-TIH) | |
| 12. | 418-7161 | [1] | Gear-SUN(23-TEETH) | |
| 13. | 418-7162 | [3] | Gear-planetary(25-TEETH) | |
| 14. | 418-7163 | [4] | Gear-planetary(22-TEETH) | |
| 15. | 418-7164 | [1] | GANG-RING(69-TEETH) | |
| 16. | 418-7167 | [4] | SHAFT | |
| 17. | 418-7232 | [1] | Rumah atap | |
| 18. | 418-7233 | [8] | Bantalan AS-roller | |
| 19. | 418-7234 | [1] | CARRIER AS | |
| 20. | 418-7235 | [1] | Pembawa-Planetary | |
| 21. | 422-1352 | [2] | SPACER(49.6X69.5X6-MM THK) | |
| 22. | 422-4054 | [3] | Pengendalian cincin | |
| 23. | 451-2182 | [52] | Hard untuk mencuci(13.5X25.5X3-MM THK) | |
| 24. | 453-3446M | [1] | BOLT(M12X1.75X35-MM) | |
| 25. | 453-3447M | [20] | BOLT(M12X1.75X40-MM) | |
| 26. | 456-0784 | [1] | Perumahan | |
| 27. | 486-7828 | [1] | Selang AS | |
| 28. | 093-1730 | [2] | Pengendalian cincin | |
| 29. | 095-0670M | [30] | BOLT(M12X1.75X45-MM) | |
| 30. | 509-6676 | [4] | Pin-SPRING | |
| 31. | 095-1806 | [1] | Berkas-Roller | |
| 32. | 096-2653 | [1] | Pengendalian cincin | |
| 33. | 096-4339 | [1] | Bantalan AS-roller | |
| 34. | 135-9044 | [2] | TIPU SEAL-LIP | |
| 35. | 136-2803 | [2] | CLIP | |
| 36. | 3K-0360 | [1] | SEAL-O-RING | |
| 37. | 5P-2235 | [1] | SEAL-O-RING | |
| 38. | 7D-5363 | [2] | Konektor(9/16-18-THD) | |
| 39. | 8T-4244M | [1] | NUT(M12X1.75-THD) |
