Informasi Detail |
|||
| Menyoroti: | SA7118-38100 Swing Gearbox,Swing Gearbox EC290 VOLVO,VOE14542165 |
||
|---|---|---|---|
Deskripsi Produk

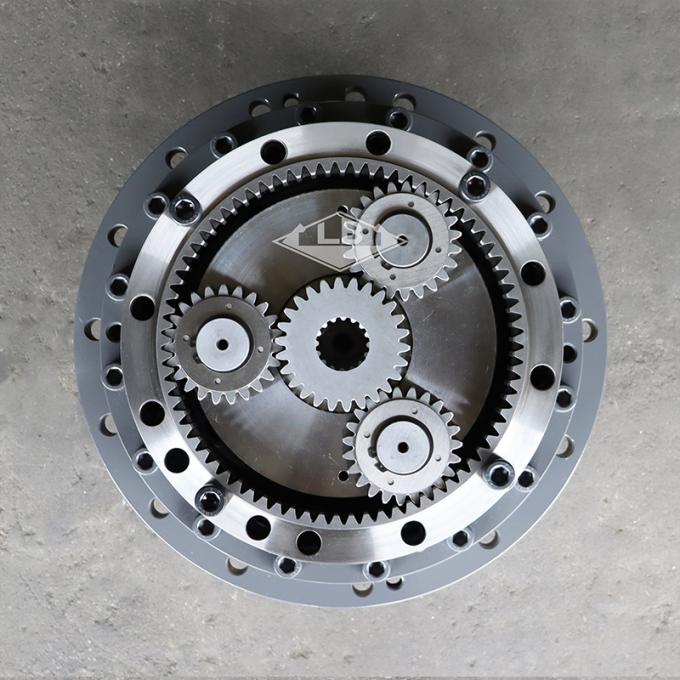

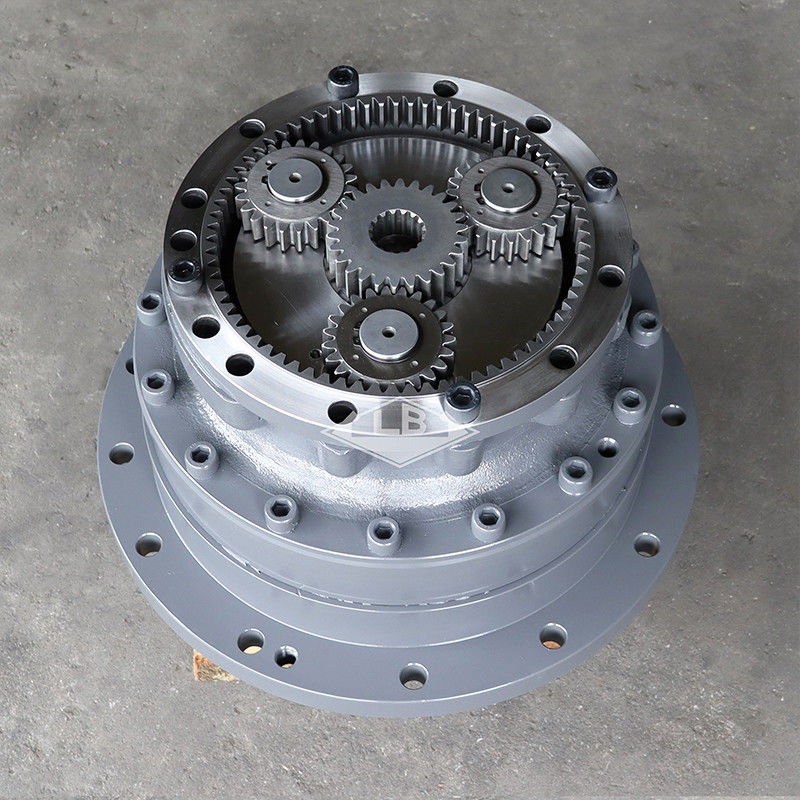

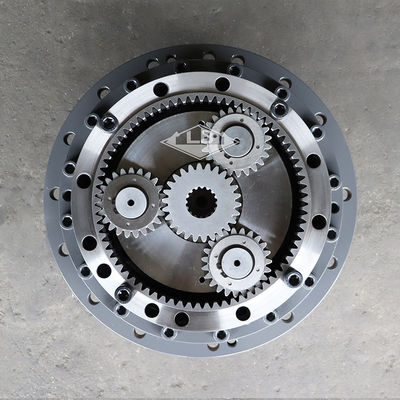

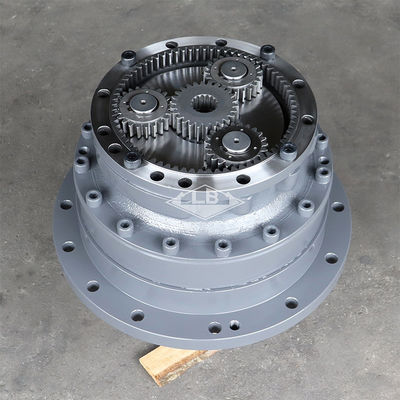

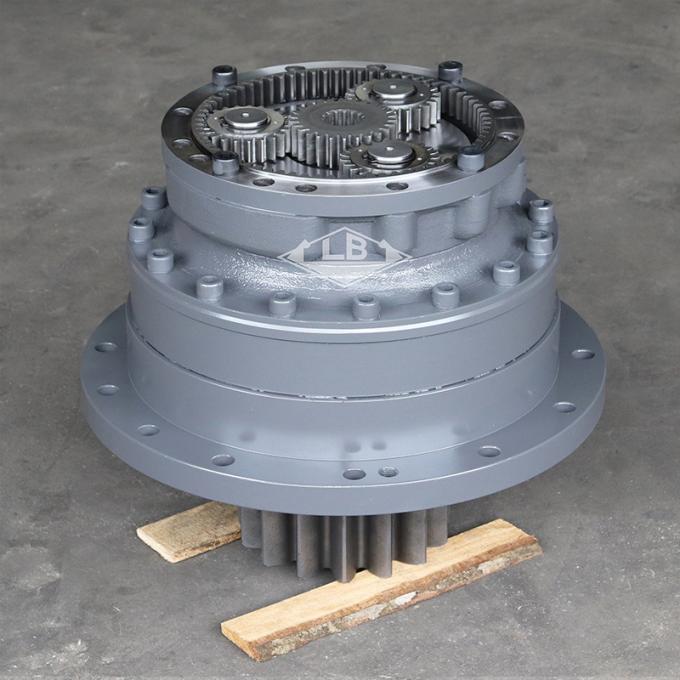

SA7118-38100 VOE14542165 VOLVO EC290 pergeseran ayunan
Parameter produk
| Pnama seni | EC290B EC290C Swing gearbox | |||||
| Peralatan | Terapkan pada VOLVO EXKAVATOR | |||||
| Bagian no. | SA7118-38100 VOE14542165 | |||||
| NO.1 gigi spline gear matahari | 16 spline | |||||
| Gigi poros swing pinion | 15 | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 180kg | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian pada grup Swing gearbox:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| VOE14542165 | [1] | Kotak gir swing | ||
| 1. | VOE14722461 | [1] | Katup pembuangan | |
| 2. | SA1036-00590 | [1] | Peralatan matahari | No 1 |
| 3. | SA1036-00750 | [12] | Bolt | SER NO 10001-11003SER NO 30001-30012 |
| VOE984368 | [12] | Hex. sekrup soket | SER NO 11004-SER NO 30013- | |
| 4. | VOE14518702 | [1] | Pengangkut | NO 2,SER NO 10320-SER NO 30001- |
| 5. | SA1036-00630 | [1] | Tombol | |
| 6. | VOE14504158 | [1] | Crankshaft | |
| 7. | VOE14504159 | [1] | Bantalan | |
| 8. | VOE14504160 | [1] | Bantalan | |
| 9. | VOE14510173 | [3] | Pin | |
| 10. | SA7118-45221 | [3] | Peralatan Planet | |
| 11. | SA7118-45260 | [6] | Mesin cuci | |
| 12. | SA9325-10012 | [3] | Pin pegas | |
| 13. | VOE14504164 | [1] | Peralatan matahari | NO 2 |
| 14. | SA7118-34480 | [1] | Mesin cuci | |
| 15. | SA7118-38400 | [1] | Pembawa planet | No 1 |
| 16. | SA7117-30230 | [3] | Pengisi jarum | |
| 17. | SA7118-38410 | [1] | Pembawa planet | |
| 18. | SA7118-38420 | [3] | Peralatan Planet | |
| 19. | SA7118-38430 | [3] | Pin | |
| 20. | SA7118-38450 | [6] | Mesin cuci | |
| 21. | SA9325-08010 | [3] | Pin pegas | |
| 22. | VOE914470 | [3] | Ring snap | |
| 23. | VOE14504161 | [1] | Casing | |
| 24. | VOE14504162 | [1] | Segel | |
| 25. | [1] | Casing | ||
| 26. | VOE14540733 | [1] | Pipa | |
| 27. | SA7118-38460 | [1] | Peralatan | No 1 |
| 28. | [1] | Peralatan | NO 2 | |
| 29. | SA7118-45380 | [4] | Pin | |
| 30. | SA9016-21820 | [16] | Bolt | SER NO 10001-11003SER NO 30001-30012 |
| VOE984370 | [16] | Hex. sekrup soket | SER NO 11312-SER NO 30013- | |
| 31. | VOE949329 | [1] | Gasket | |
| 32. | SA9541-01085 | [1] | Cincin penahan | |
| 100. | VOE14526227 | [1] | Kit perbaikan | |
| 200. | VOE14553108 | [1] | Perumahan | Inc 25,28,29 |
