Informasi Detail |
|||
| Menyoroti: | kotak gir swing excavator untuk E318D,3333015 Kotak gir ayunan excavator E,E Gearbox Gearbox |
||
|---|---|---|---|
Deskripsi Produk

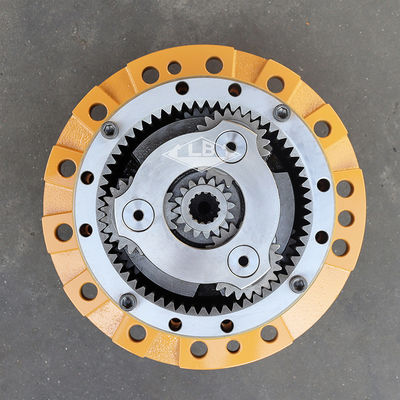

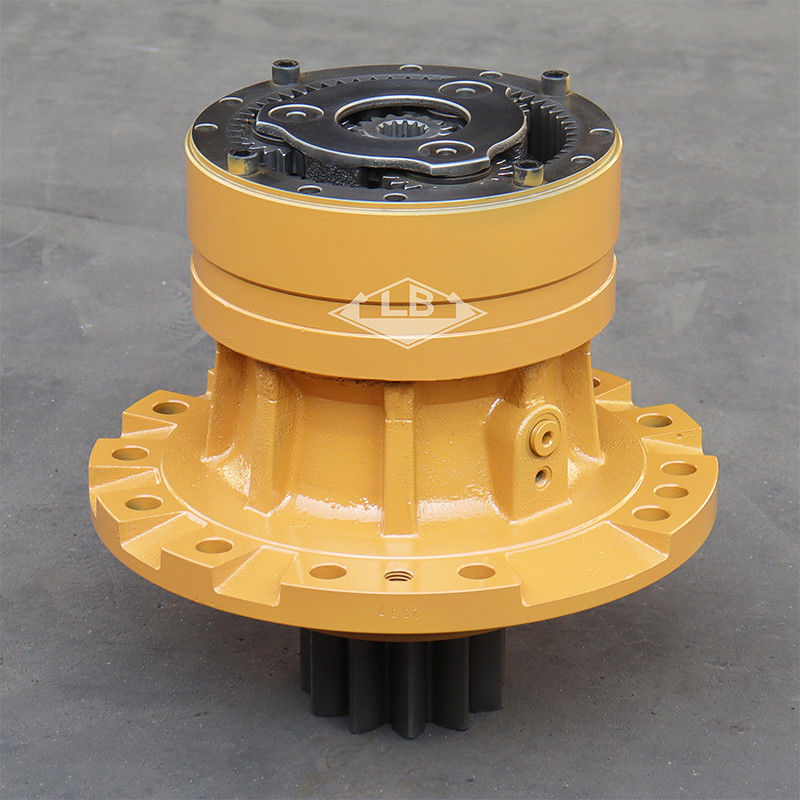

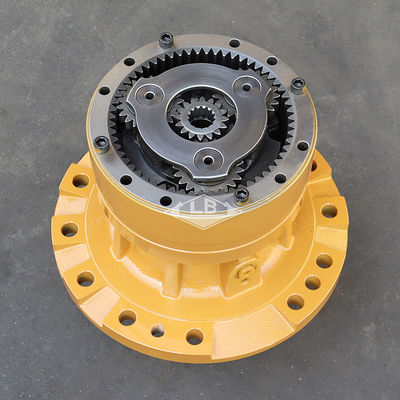

333-3015 3333015 E Excavator Swing Gearbox E318D E318D E318D2 E318D2
Parameter produk
| Pnama seni | E318D Swing gearbox | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 333-3015 | |||||
| NO.1 gigi spline gear matahari | 14 spline | |||||
| Gigi poros swing pinion | 11T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 110 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian untuk 318D L Excavator Anda:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 333-3043 | [1] | Keterangan: | |
| 2. | 333-3042 | [1] | Keterangan: | |
| 3. | 333-3057 | [1] | Pengadilan | |
| 4. | 333-3047 | [1] | KOLER | |
| 5. | 333-3064 | [1] | RING | |
| 6. | 7X-2619M | [6] | BOLT(M6X1X10-MM) | |
| 7. | 333-3062 | [2] | PELAT | |
| 8. | 333-3061 | [1] | SEAL | |
| 9. | 333-3060 | [1] | SEAL | |
| 10. | 333-3056 | [1] | PINION | |
| 11. | 093-6089 | [2] | Dowell | |
| 12. | 199-4631 | [1] | GANG-RING | |
| 13. | 333-3055 | [1] | Gear-SUN | |
| 14. | 199-4629 | [1] | Gear-SUN | |
| 15. | 8C-3347 | [3] | PIN-ROLL | |
| 16. | 199-4628 | [3] | SHAFT-PLANETARY | |
| 17. | 199-4627 | [12] | PEMANAS | |
| 18. | 199-4626 | [3] | Keterangan: | |
| 19. | 199-4625 | [3] | Gear-planetary | |
| 20. | 333-3053 | [1] | Pengangkut | |
| 21. | 333-3059 | [3] | Pengendalian cincin | |
| 22. | 333-3058 | [3] | Kekuatan pencuci(30X47X2-MM THK) | |
| 23. | 191-2605 | [1] | PEMANAS(30X75X3-MM THK) | |
| 24. | 095-0879 | [3] | Pin-SPRING | |
| 25. | 333-3051 | [3] | SHAFT | |
| 26. | 333-3050 | [3] | Keterangan: | |
| 27. | 333-3049 | [3] | Gear-planetary | |
| 28. | 333-3048 | [1] | Pengangkut | |
| M | Bagian Metrik | |||
