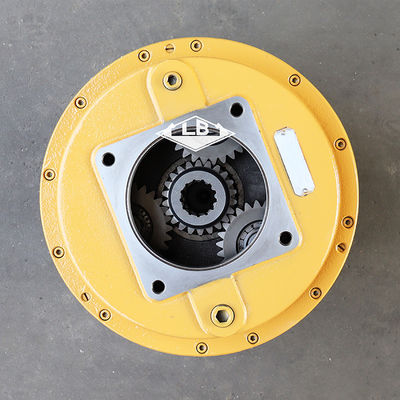

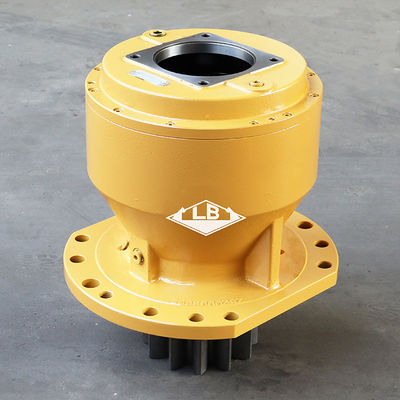

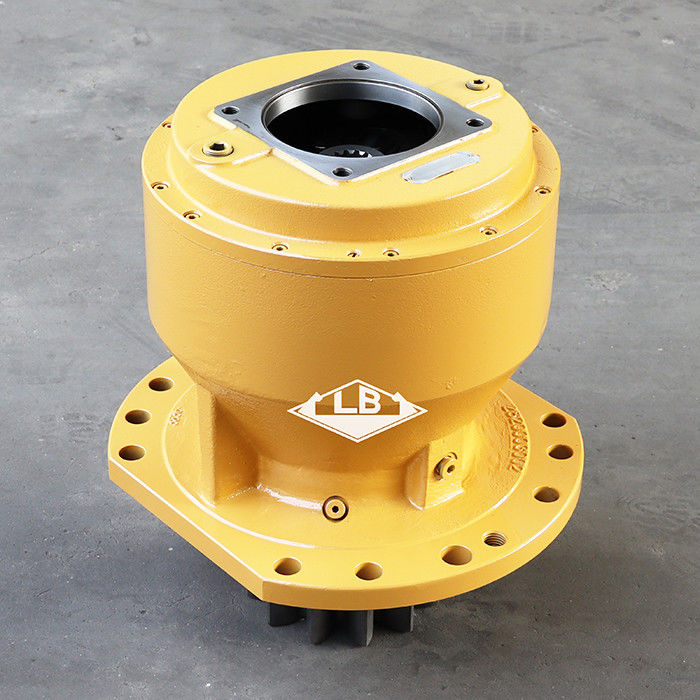

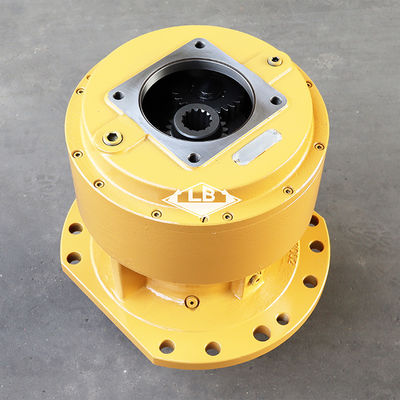

E 349 352 349GC SWING DRIVE 536-7289 538-5282 584-2587 584-2588 SWING REDUCER E 349GC SWING GEARBOX
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Gearbox Ayunan Excavator,Perlengkapan Pengurang Ayunan,Swing Drive Gearbox |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | E 349GC Swing gearbox | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 536-7289 538-5282 584-2587 584-2588 | |||||
| NO.1 gigi spline gear matahari | 13 spline | |||||
| Gigi poros swing pinion | 12T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | ... | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
| Nomor Bagian | Nama Bagian | Jumlah |
| 536-7289 | Drive GP-Swing | |
| 567-7126 | Gelang Gir | 1 |
| (77 gigi) | ||
| 567-7133 | Gear-Sun | |
| (13-TEETH) | ||
| 567-7134 | Planetary AS | 1 |
| 567-7135 | Planetary AS | 1 |
| 567-7146 | AS Perumahan | 1 |
| (Input) | ||
| 4D-6695 | Seal-O-Ring | |
| 570-5849 | Output Perumahan | 1 |
| 633-7828 | Pinion poros | 1 |
| 567-7149 | Ring Kacang | 1 |
| M | (M92X2-THD) | |
| 567-7150 | Spacer | |
| (87.99X110X5-MM Thk) | ||
| 567-7151 | Pengendalian cincin | 1 |
| 595-6578 | Segel | 2 |
| 567-7153 | Segel | 1 |
| 567-7154 | Segel-Ring | 1 |
| 567-7155 | Bantalan | 1 |
| 567-7156 | Bantalan | 1 |
| 567-7157 | Kemasan Shim | 1 |
| B | (Termasuk 4-SHIMS) | |
| 136-8074 | Plug | |
| 311-0501 | Bolt | 12 |
| M | (M8X1.25X25-MM) | |
