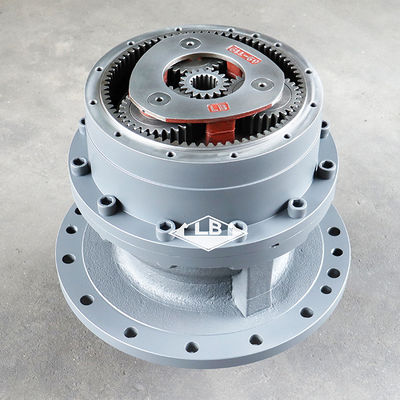

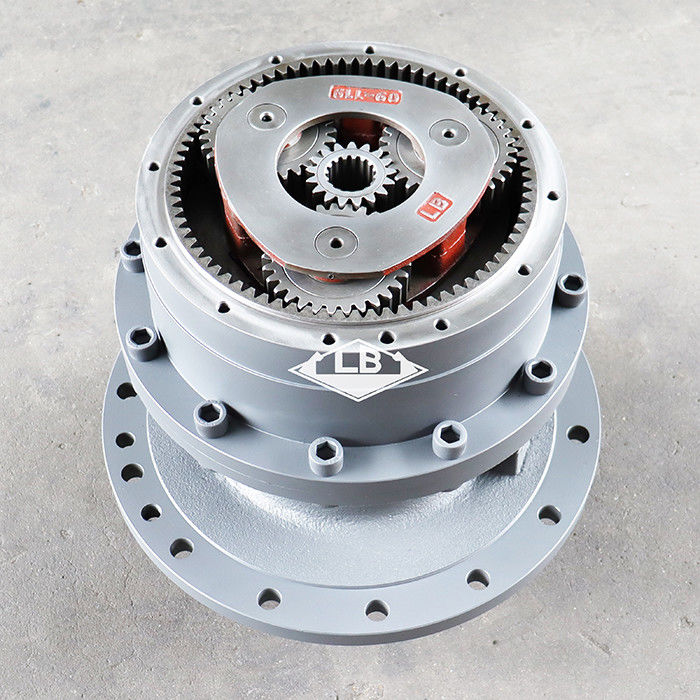

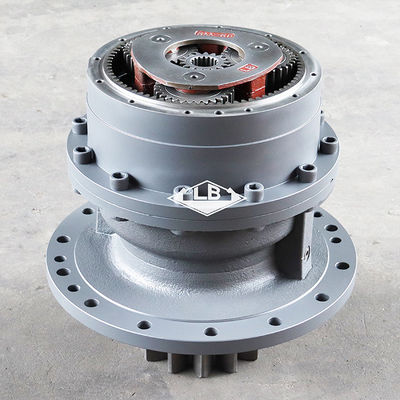

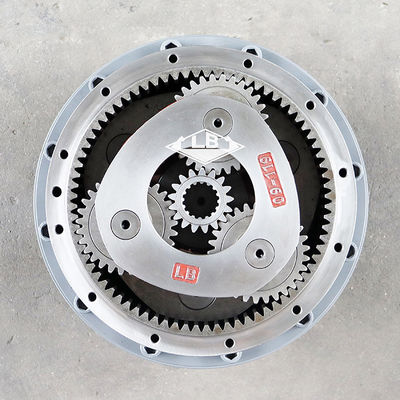

ZX330-3 ZX330-5G ZX350-5G REDUCER 9236591 9258610 PERANGKAT SWING ZX330-3 SWING GEARBOX
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Gearbox Ayunan Excavator,Perlengkapan Pengurang Ayunan,Swing Drive Gearbox |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | ZX330-3 ZX330-5G swing gearbox | |||||
| Peralatan | Mendaftar untuk HITACHI EXKAVATOR | |||||
| Bagian no. | 9236591 9258610 | |||||
| NO.1 gigi spline gear matahari | 16splines | |||||
| Gigi poros swing pinion | 13T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 325KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi produk
Bagian pada kelompok T.MISSION (SWING):
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 9236591 | [1] | T.MISSION (Swing) | Aku 9258610 < untuk perakitan mesin> | |
| 9258610 | [1] | T.MISSION (Swing) | ||
| 00. | 1033255 | [1] | Perumahan | |
| 01. | 2050987 | [1] | SHAFT;PROP. | |
| 02. | 3088071 | [1] | Sleeve | |
| 03. | 4412650 | [1] | O-RING | |
| 04. | 4430716 | [1] | BRG.; ROL. | |
| 05. | 4430715 | [1] | SEAL; Minyak | |
| 07. | 4402481 | [1] | BRG.; ROL. | |
| 08. | 3101122 | [1] | NUT | |
| 09. | 4430563 | [1] | PLATE;LOCK | |
| 10. | J901016 | [2] | BOLT | |
| 11. | 2050998 | [1] | Pengangkut | |
| 13. | 3088069 | [3] | Gear;Planetary | |
| 14. | 4445254 | [6] | BRG.; jarum | |
| 15. | 4644567 | [6] | PLATE;THRUST | |
| 16. | 4430714 | [3] | PIN | |
| 17. | 4404947 | [3] | PIN;SPRING | |
| 18. | 3075692 | [1] | Gear;SUN | |
| 20. | 1032127 | [1] | Gear;RING | |
| 21. | M342050 | [12] | BOLT;SOCKET | |
| 22. | 4194454 | [2] | PLATE;THRUST | |
| 23. | 1032128 | [1] | Pengangkut | |
| 24. | 3098513 | [3] | Gear;Planetary | |
| 25. | 4190117 | [3] | BRG.; jarum | |
| 26. | 4430667 | [3] | PLATE;THRUST | |
| 27. | 4144558 | [3] | PIN | |
| 28. | 4144525 | [3] | PIN;SPRING | |
| 30. | 3101105 | [1] | Gear;SUN | |
| 32. | 3088126 | [1] | PIPE | |
| 36. | 94-2012 | [1] | PLUG | |
| 37. | 4445354 | [2] | PLUG |
