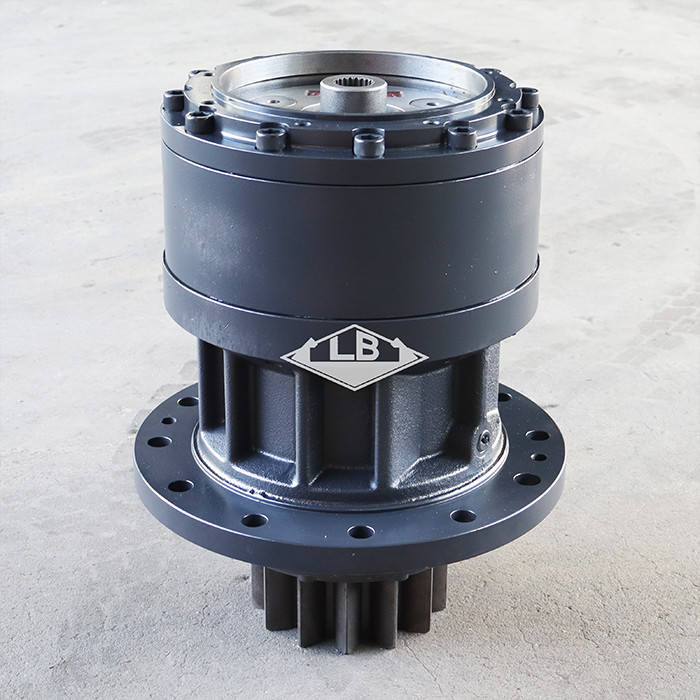

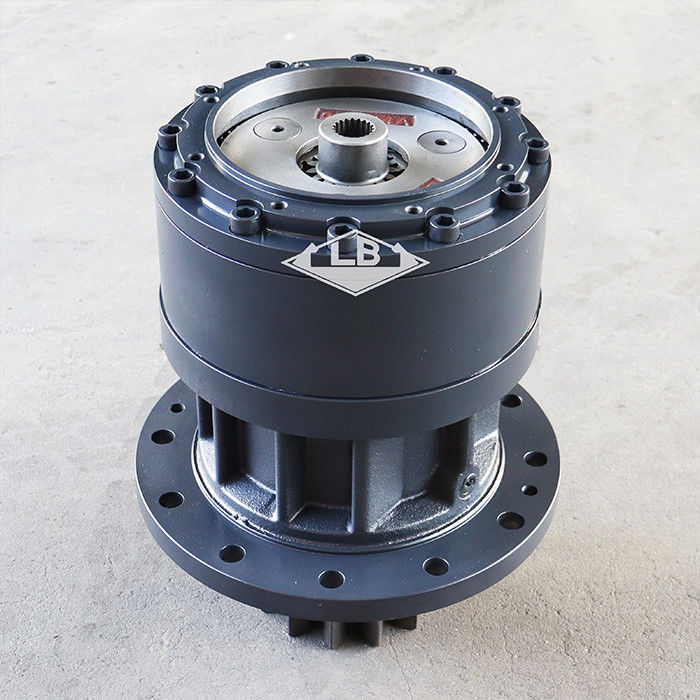

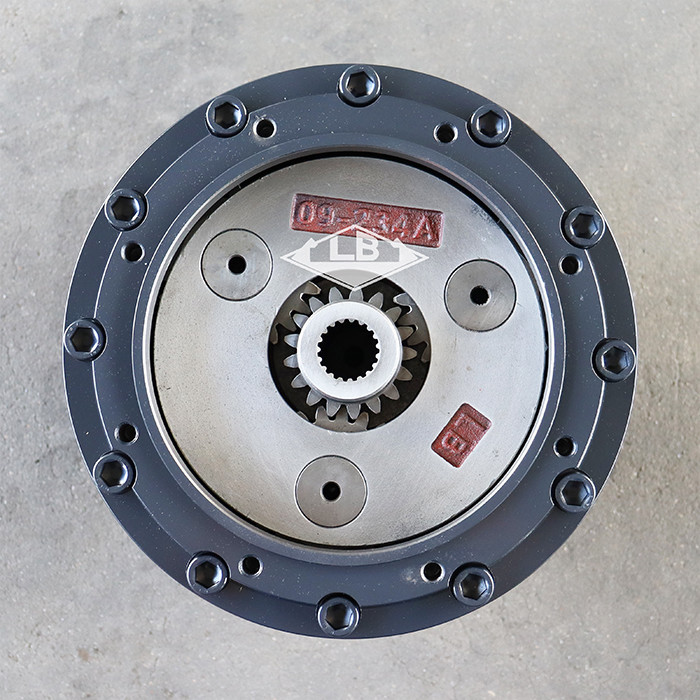

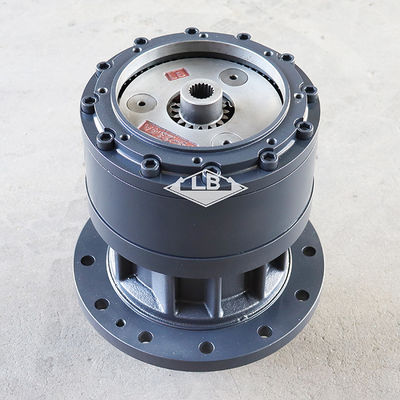

EC210 SWING REDUCER VOE14541069 SA7118-30100 EC210 SWING GEARBOX
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Gearbox Ayunan Excavator,Perlengkapan Pengurang Ayunan,Swing Drive Gearbox |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | EC210 Swing gearbox | |||||
| Peralatan | Terapkan pada VOLVO EXKAVATOR | |||||
| Bagian no. | VOE14541069 SA7118-30100 | |||||
| NO.1 gigi spline gear matahari | 19 spline | |||||
| Gigi poros swing pinion | 13 T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 200 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi produk
Bagian pada grup Swing gearbox:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| VOE14541069 | [1] | Kotak gir swing | ||
| 1. | VOE14528929 | [1] | Selang | |
| 2. | VOE14540405 | [1] | Kerah | |
| 3. | VOE14509281 | [1] | Tutup | |
| 4. | VOE990596 | [1] | O-ring | |
| 5. | VOE14508911 | [1] | Segel | |
| 6. | VOE993025 | [10] | Sekrup heksagon | |
| 7. | VOE14640027 | [1] | Bantalan rol | |
| 8. | VOE14558674 | [1] | Bantalan rol | |
| 9. | SA9541-01090 | [1] | Cincin penahan | |
| 10. | VOE950677 | [4] | Pin | |
| 11. | VOE984363 | [12] | Hex. sekrup soket | |
| 12. | SA7118-30370 | [1] | Piring | |
| 13. | SA7118-30380 | [1] | Cincin dorong | |
| 14. | SA7118-30390 | [1] | Peralatan | |
| 15. | SA7118-30480 | [1] | Mesin cuci | |
| 16. | SA7118-30490 | [1] | Peralatan matahari | |
| 17. | VOE14540733 | [1] | Pipa | |
| 18. | VOE14722461 | [1] | Katup pembuangan | |
| 19. | VOE949329 | [1] | Gasket | |
| 20. | SA7118-30200 | [1] | Pembawa planet | Tidak, tidak.2 |
| 21. | SA7118-30210 | [1] | Pembawa planet | |
| 22. | SA7118-30220 | [3] | Peralatan planet | |
| 23. | SA7118-30230 | [3] | Pin | |
| 24. | SA7118-30260 | [6] | Mesin cuci | |
| 25. | SA9325-08010 | [3] | Pin pegas | |
| 26. | VOE14528725 | [1] | Pembawa planet | Tidak, tidak.1 |
| 27. | SA7118-30410 | [1] | Pembawa planet | |
| 28. | SA7118-30420 | [3] | Peralatan planet | |
| 29. | VOE14528726 | [3] | Pin | |
| 30. | VOE14550879 | [3] | Pengisi jarum | |
| 31. | SA7118-30450 | [3] | Mesin cuci | |
| 32. | SA7118-30460 | [3] | Mesin cuci | |
| 33. | SA9541-01042 | [3] | Cincin penahan | |
| 34. | SA9325-08010 | [3] | Pin pegas | |
| 35. | SA7118-30350 | [1] | Perlengkapan cincin | |
| 36. | SA7118-30340 | [1] | Kasus | |
| 100. | VOE14526214 | [1] | Kit perbaikan |
