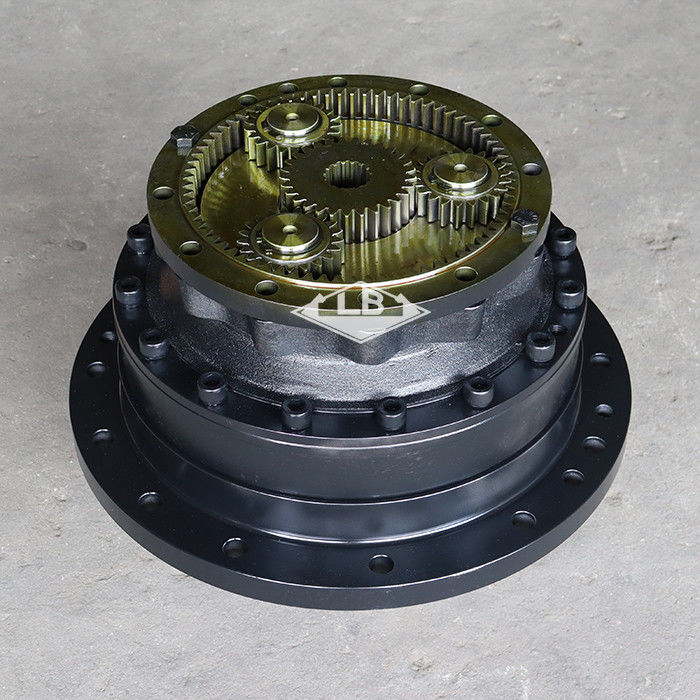

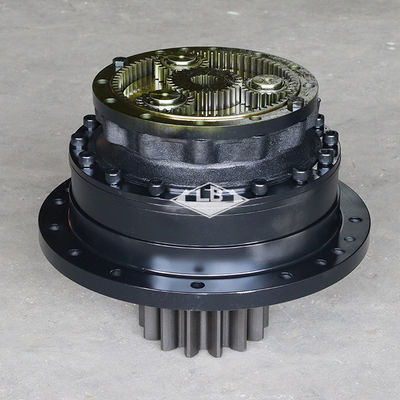

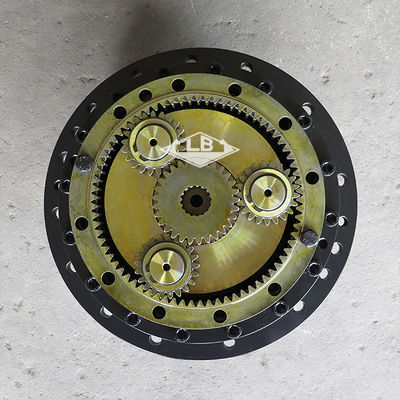

GEAR REDUKSI SWING SURYA 255 2401-1166 2101-1025 GEARBOX SWING SURYA 255
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Gearbox Ayunan Excavator,Perlengkapan Pengurang Ayunan,Swing Drive Gearbox |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | SOLAR255 Swing gearbox | |||||
| Peralatan | Berlaku untuk DOOSAN EXKAVATOR | |||||
| Bagian no. | 2101-1025 | |||||
| NO.1 gigi spline gear matahari | 16 spline | |||||
| Gigi poros swing pinion | 14T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | ... | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| -. | 2402-1034K | [1] | Pengurangan gearbox ASS'Y | |
| -. | 2101-1025C | [1] | Pengurangan gearbox ASS'Y | |
| -. | 2101-1025D | [1] | Gear pengurangan ayunan | 2101-1025E |
| -. | 2101-1025E | [1] | Swing REDUCTION GEAR ASS'Y | |
| 1. | 2423-1184C | [1] | KASING; FRONT | 2423-1184D |
| 1. | 2423-1184D | [1] | KASING; FRONT | |
| 10. | 2230-1014 | [1] | Pengangkut | |
| 10. | 2230-1034 | [1] | Pengangkut | |
| 11. | 2123-1631B | [3] | PIN | |
| 12. | 2114-1553 | [6] | WASHER;THRUST | |
| 13. | 2549-1118 | [1] | Tombol; Tekan | |
| 14. | 2123-1632 | [3] | PIN ((NO.1) | |
| 15. | 2412-9001 | [3] | Plat;SIDE | |
| 16. | 2412-9002 | [3] | Plat;SIDE | |
| 17. | 2412-9003 | [1] | Plat;SIDE | |
| 18. | 2505-1009 | [1] | BAR;LEVEL | |
| 19. | 2182-1304 | [1] | PIPE | |
| 2. | 2423-1185 | [1] | KASING;MEDIAN | |
| 20. | 2278-1009A | [1] | RING;SPACEER | |
| 21. | 2123-1634 | [4] | PIN;TEKAN | |
| 22. | 2109-9031 | [1] | Bantalan; Roller | |
| 23. | 2109-9032 | [1] | Bantalan; Roller | |
| 24. | 2216-9001 | [3] | Cage; jarum | |
| 25. | S2225971 | [16] | BOLT;LOCK | |
| 26. | S2224871 | [12] | BOLT;LOCK | |
| 27. | 2180-1235 | [1] | SEAL; Minyak | |
| 28. | 2123-1633D2 | [3] | PIN;SPRING | |
| 29. | 2181-1116D4 | [1] | PLUG | |
| 3. | 2112-1156C | [1] | SHAFT; DRIVE | |
| 30. | 2123-1633D1 | [3] | PIN;SPRING | |
| 31. | S6500450 | [1] | RING; SNAP | |
| 32. | S6500500 | [3] | RING; STOP | |
| 33. | S6500850 | [1] | RING; STOP | |
| 34. | 2213-1053B | [1] | COVER; FRONT | |
| 35. | S0112261 | [8] | BOLT | |
| 36. | 2404-1031D | [1] | Gear;PINION | |
| 36. | 2404-1031E | [1] | Gear;PINION | |
| 37. | 2403-1039A | [1] | PLATE;LOCK | |
| 38. | 2120-1363 | [4] | BOLT | |
| 39. | 2126-9001 | [2] | WIRE | |
| 4. | 2104-1004C | [1] | Gear;RING ((NO.2) | |
| 40. | S5102901 | [4] | . WASHER;SPRING | |
| 41. | 2536-1002 | [6] | Magnet | |
| 42. | 2180-1236 | [1] | O-RING ID221.94XW3.53 | |
| 5. | 2101-1006C | [3] | Gear;Planetary ((NO.2) | |
| 6. | 2101-1005D | [1] | Gear;SUN ((NO.2) | 2101-1005E |
| 6. | 2101-1005E | [1] | Gear;SUN ((NO.2) | |
| 7. | 2104-1005B | [1] | Gear;RING ((NO.2) | |
| 7. | 2104-1005C | [1] | Gear;RING ((NO.1) | |
| 8. | 2101-1007A | [3] | Gear;Planetary ((NO.1) | |
| 8. | 2101-1031 | [3] | Gear;Planetary ((NO.1) | |
| 9. | 2101-1008C | [1] | Gear;SUN ((NO.1) | |
| 9. | 2101-1032 | [1] | Gear;SUN ((NO.1) |
