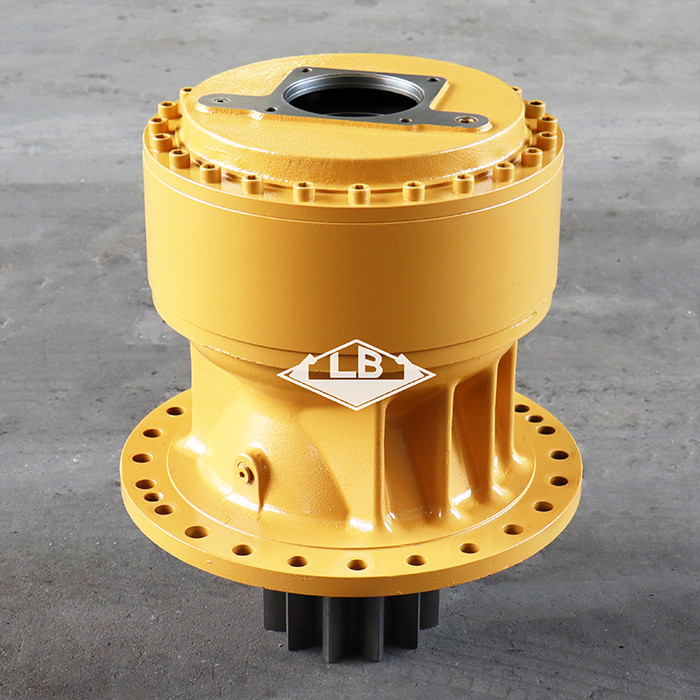

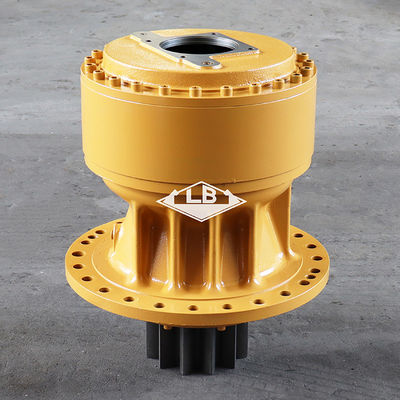

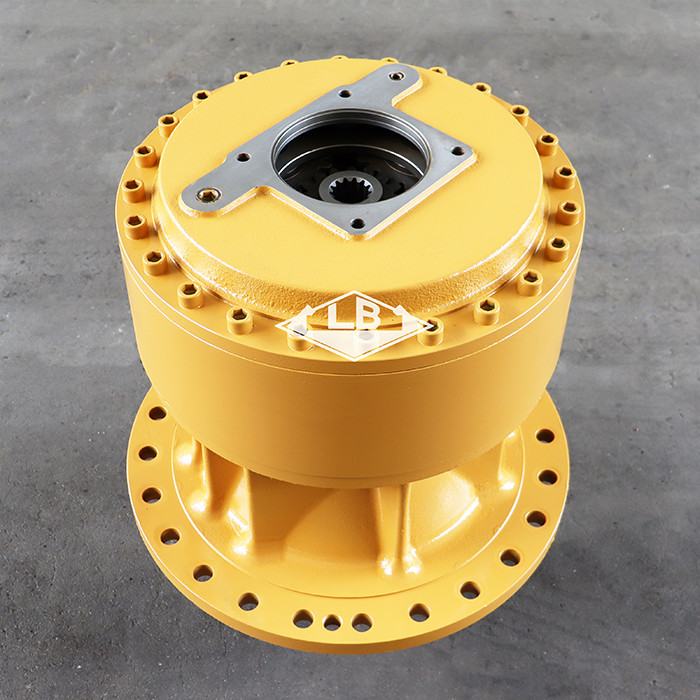

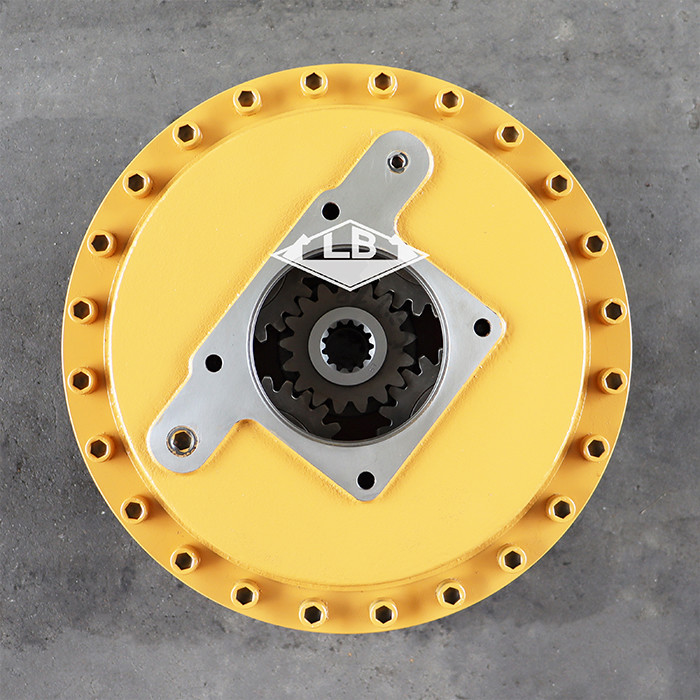

E 336D 330D Swing Drive Tanpa Motor 333-2959 199-4539 3332959 1994539 E336D Swing Gearbox
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Gearbox Ayunan Excavator,Perlengkapan Pengurang Ayunan,Swing Drive Gearbox |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | E 336D 330D Swing gearbox | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 333-2959 199-4539 | |||||
| NO.1 gigi spline gear matahari | 13 spline | |||||
| Gigi poros swing pinion | 12T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 540 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian untuk 336D L Excavator Anda:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 4H-6112 | [1] | Bernafas(Swing Drive) | |
| 2. | 6V-7238 | [1] | VALVE-SHUT-OFF(Swing Drive) | |
| 3. | 7I-7611 | [1] | KAU | |
| 4. | 7I-7619 | [1] | Berkas-Roller | |
| 5. | 7I-7684M | [2] | SPACER(50X79.6X6-MM THK) | |
| 6. | 9U-8693 | [1] | Berkas-Roller | |
| 7. | 093-1730 | [1] | Pengendalian cincin | |
| 8. | 094-1528 | [8] | PEMANAS(53X84X1-MM THK) | |
| 9. | 096-1441 | [1] | Pengendalian cincin | |
| 10. | 110-7149 | [1] | Pengendalian cincin | |
| 11. | 114-1322 | [1] | Pengendalian cincin | |
| 12. | 114-1398 | [1] | Pengukur-tingkat minyak(Swing Drive) | |
| 13. | 114-1399 | [1] | PIPE-GAUGE | |
| 14. | 127-3872Aku | [1] | Selang AS | |
| 15. | 136-2802 | [2] | Konektor | |
| 16. | 136-2803 | [2] | CLIP | |
| 17. | 148-4600 | [1] | Gear-SUN(17-TIH) | |
| 18. | 148-4601 | [1] | Gear-SUN(17-TIH) | |
| 19. | 148-4602 | [4] | Gear-planetary(24-TEETH) | |
| 20. | 148-4603 | [4] | Gear-planetary(24-TEETH) | |
| 21. | 148-4604 | [1] | GANG-RING(67-TEETH) | |
| 22. | 148-4605 | [1] | SHAFT-PINION | |
| 23. | 418-6218 | [1] | Pembawa-Planetary | |
| 24. | 148-4608 | [4] | SHAFT-PLANETARY | |
| 25. | 148-4609 | [4] | SHAFT-PLANETARY | |
| 26. | 148-4611 | [8] | PEMANAS(71.3X112X1-MM THK) | |
| 27. | 171-9413 | [1] | SPACER(140.5X160X103.2-MM THK) | |
| 28. | 191-2511 | [1] | Pembawa-Planetary | |
| 29. | 191-2513 | [4] | Bantalan AS-roller | |
| 30. | 191-2514 | [8] | AS BEARING | |
| 31. | 191-2524 | [1] | Perumahan | |
| 32. | 199-4540 | [1] | Rumah atap | |
| 33. | 227-6215 | [1] | BOS(1/4-18-THD) | |
| 34. | 099-5194 | [8] | Pin-SPRING | |
| 35. | 128-9170 | [2] | TIPU SEAL-LIP | |
| 36. | 3K-0360 | [1] | SEAL-O-RING | |
| 37. | 5M-4454 | [1] | SEAL-O-RING | |
| 38. | 453-3447M | [10] | BOLT(M12X1.75X40-MM) | |
| 39. | 451-2182 | [12] | Hard untuk mencuci(13.5X25.5X3-MM THK) | |
| 40. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 41. | 8T-4956M | [1] | BOLT(M12X1.75X35-MM) | |
| 42. | 453-4169M | [24] | BOLT(M16X2X200-MM) | |
| 43. | 451-2175 | [24] | Hard untuk mencuci(17.5X30X3.5-MM THK) |
