Detail produk:

Harga terbaik Kontak

Informasi Detail
Menyoroti:

Gearbox Ayunan Excavator

,

Perlengkapan Pengurang Ayunan

,

Swing Drive Gearbox

Deskripsi Produk

Parameter produk
Pnama seni

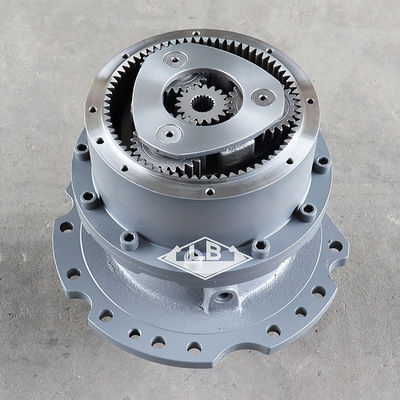

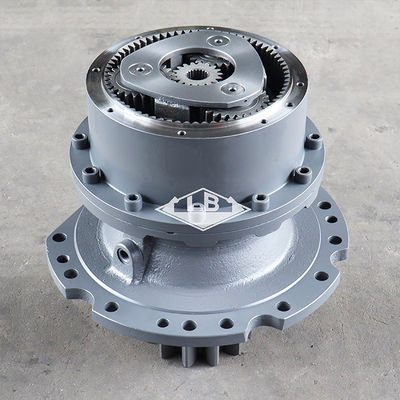

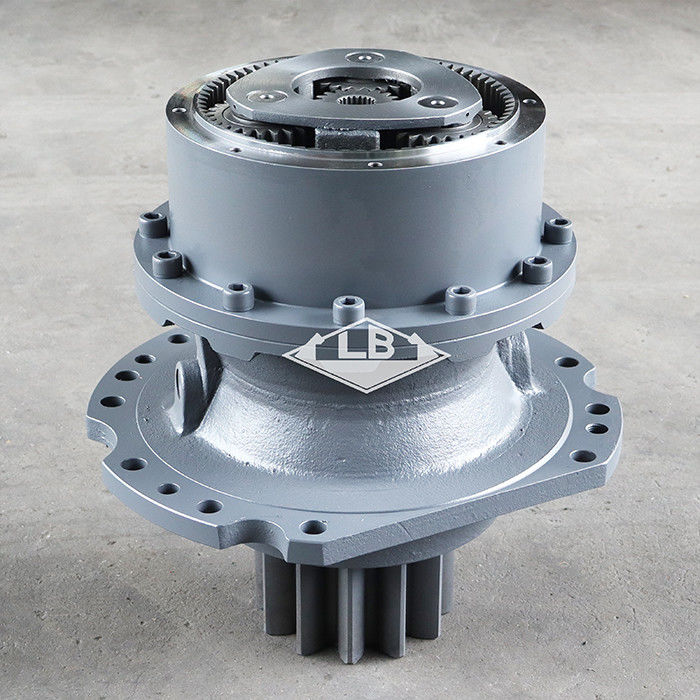

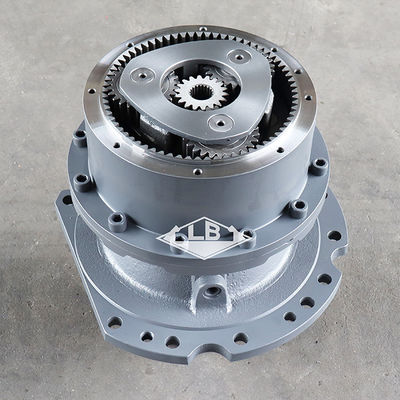

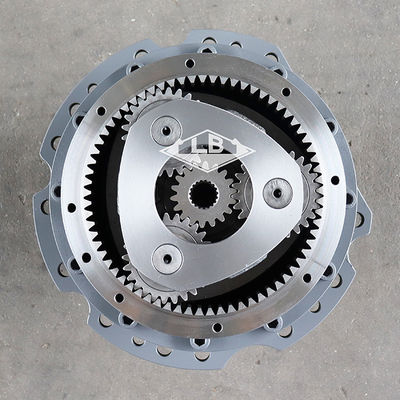

 ZX650-3 ZX670-3 swing gearbox
Peralatan Mendaftar untuk HITACHI EXKAVATOR
Bagian no. 9191672
NO.1 gigi spline gear matahari 19splines
Gigi poros swing pinion 12T
Kondisi barang Baru
Logo LB
Berat kotor ...
MOQ 1 pcs

Deskripsi produk

ZX650-3 ZX670-3 GEAR REDUKSI SWING 9191672 ZX670 SWING GEARBOX 0ZX650-3 ZX670-3 GEAR REDUKSI SWING 9191672 ZX670 SWING GEARBOX 1ZX650-3 ZX670-3 GEAR REDUKSI SWING 9191672 ZX670 SWING GEARBOX 2ZX650-3 ZX670-3 GEAR REDUKSI SWING 9191672 ZX670 SWING GEARBOX 3ZX650-3 ZX670-3 GEAR REDUKSI SWING 9191672 ZX670 SWING GEARBOX 4

Bagian pada kelompok T.MISSION (SWING):

Posisi. Bagian No. Qty Nama bagian Komentar

9191672 [1] T.MISSION (Swing)

9191672 [1] T.MISSION (Swing)
01. 2044936 [1] SHAFT;PROP.
01. 2044936 [1] SHAFT;PROP.
03. 3088671 [1] Sleeve
03. 3088671 [1] Sleeve
05. A811140 [1] O-RING
05. A811140 [1] O-RING
07. 4438312 [1] BRG.; ROL.
07. 4438312 [1] BRG.; ROL.
09. 4424982 [1] SEAL; Minyak Aku 4604377
09. 4424982 [1] SEAL; Minyak Aku 4604377
09. 4604377 [1] SEAL; Minyak
09. 4604377 [1] SEAL; Minyak
11. 1028151 [1] Perumahan
11. 1028151 [1] Perumahan
12. 4474191 [1] PLATE;LOCK
12. 4474191 [1] PLATE;LOCK
13. 4402481 [1] BRG.; ROL.
13. 4402481 [1] BRG.; ROL.
14. 3088744 [1] NUT
14. 3088744 [1] NUT
16. J901016 [2] BOLT
16. J901016 [2] BOLT
17. 1028147 [1] Pengangkut
17. 1028147 [1] Pengangkut
18. 4194454 [1] PLATE;THRUST
18. 4194454 [1] PLATE;THRUST
19. 3088608 [3] Gear;Planetary
19. 3088608 [3] Gear;Planetary
20. 4452475 [3] PLATE;THRUST
20. 4452475 [3] PLATE;THRUST
22. 4027427 [3] PIN;SPRING
22. 4027427 [3] PIN;SPRING
23. 4269454 [6] BRG.; jarum
23. 4269454 [6] BRG.; jarum
24. 4488904 [3] PIN
24. 4488904 [3] PIN
25. 1028141 [1] Gear;RING
25. 1028141 [1] Gear;RING
27. M341840 [12] BOLT;SOCKET
27. M341840 [12] BOLT;SOCKET
29. 3084656 [1] Gear;SUN
29. 3084656 [1] Gear;SUN
30. 4434708 [1] PLATE;THRUST
30. 4434708 [1] PLATE;THRUST
31. 1028149 [1] Pengangkut
31. 1028149 [1] Pengangkut
32. 3088656 [3] Gear;Planetary
32. 3088656 [3] Gear;Planetary
33. 4190117 [3] BRG.; jarum
33. 4190117 [3] BRG.; jarum
34. 4430667 [3] PLATE;THRUST
34. 4430667 [3] PLATE;THRUST
35. 4144558 [3] PIN
35. 4144558 [3] PIN
37. 3084649 [1] Gear;SUN
37. 3084649 [1] Gear;SUN
40. 4144525 [3] PIN;SPRING
40. 4144525 [3] PIN;SPRING
41. 4194712 [2] COCK
41. 4194712 [2] COCK
42. 94-2024 [2] PLUG
42. 94-2024 [2] PLUG
43. 4445354 [2] PLUG
43. 4445354 [2] PLUG
47. 4422479 [4] Magnet
47. 4422479 [4] Magnet
48. M470513 [4] PELUANG
48. M470513 [4] PELUANG
