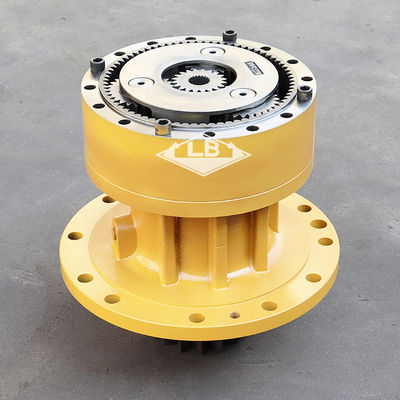

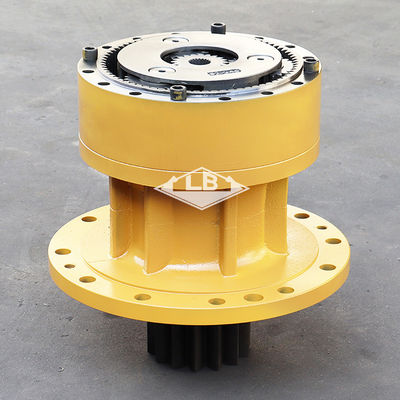

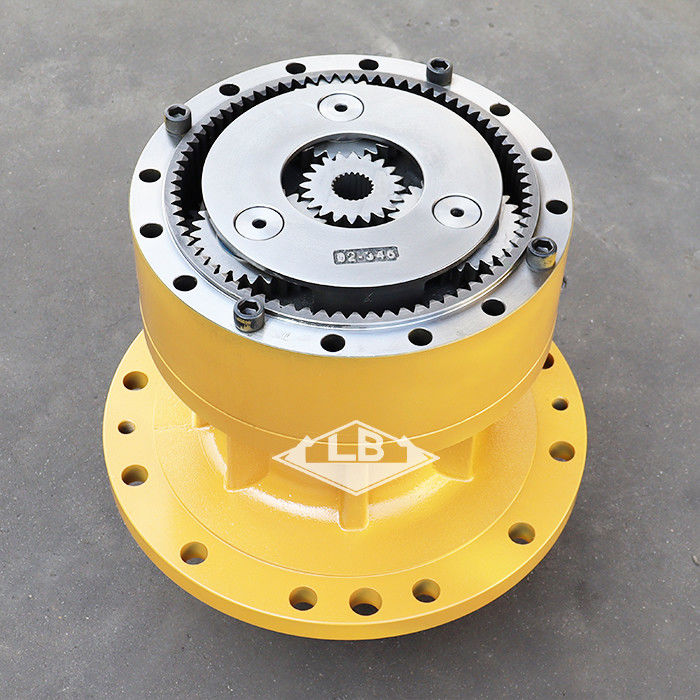

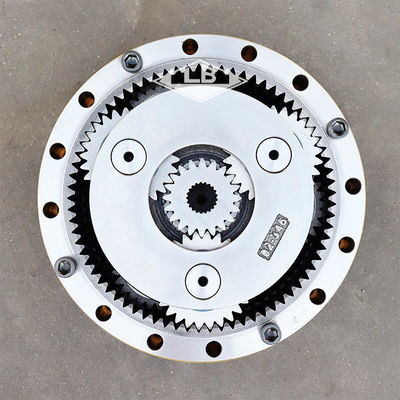

GEAR REDUKSI SWING E 320C 320D 148-4644 1484644 E320 SWING GEARBOX
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Gearbox Ayunan Excavator,Perlengkapan Pengurang Ayunan,Swing Drive Gearbox |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | E 320 Swing gearbox | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 148-4644 | |||||
| NO.1 gigi spline gear matahari | 21 spline | |||||
| Gigi poros swing pinion | 14T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 200kg | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian untuk excavator 320C Anda:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 094-0584 | [6] | PEMANAS(40.3X72X1-MM THK) | |
| 2. | 094-1509 | [3] | SHAFT-PLANETARY | |
| 3. | 148-4733 | [3] | Gear-planetary(26-TEETH) | |
| 4. | 114-1581 | [1] | SPACER(57.5X74X6-MM THK) | |
| 5. | 148-4732 | [1] | Gear-SUN(20-TIH) | |
| 6. | 093-1729 | [2] | Pengendalian cincin | |
| 7. | 148-4632 | [1] | Gear-SUN(23-TEETH) | |
| 8. | 191-2578 | [1] | Pembawa-Planetary | |
| 9. | 7Y-1434 | [1] | SPACER(40X69.5X6-MM THK) | |
| 10. | 148-4637 | [1] | Pembawa-Planetary | |
| 11. | 148-4640 | [1] | Pengendalian cincin | |
| 12. | 148-4643 | [1] | Keterangan: | |
| 13. | 095-1022 | [1] | Berkas-Roller | |
| 14. | 148-4642 | [1] | SEAL-O-RING | |
| 15. | 227-6228 | [1] | KAU | |
| 16. | 453-3447M | [6] | BOLT(M12X1.75X40-MM) | |
| 17. | 451-2182 | [6] | Hard untuk mencuci(13.5X25.5X3-MM THK) | |
| 18. | 199-4561 | [2] | TIPU SEAL-LIP | |
| 19. | 148-4636 | [1] | SHAFT-PINION | |
| 20. | 148-4638 | [1] | Perumahan | |
| 21. | 3K-0360 | [1] | SEAL-O-RING | |
| 22. | 6V-7238 | [1] | VALVE-SHUT-OFF(Swing Drive) | |
| 23. | 148-4634 | [3] | SHAFT-PLANETARY | |
| 24. | 095-0891 | [3] | Pin-SPRING | |
| 25. | 148-4635 | [1] | GANG-RING(73-TEETH) | |
| 26. | 148-4633 | [3] | Gear-planetary(25-TEETH) | |
| 27. | 7Y-0252 | [6] | Bantalan AS-roller | |
| 28. | 094-0611 | [6] | PEMANAS(47.3X76X1-MM THK) | |
| 29. | 095-0886 | [3] | Pin-SPRING | |
| 30. | 094-1516 | [3] | Berkas-Roller | |
| 31. | 171-9383 | [1] | SPACER |
