Informasi Detail |
|||
| Menyoroti: | Gearbox Ayunan Excavator,Perlengkapan Pengurang Ayunan,Swing Drive Gearbox |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk

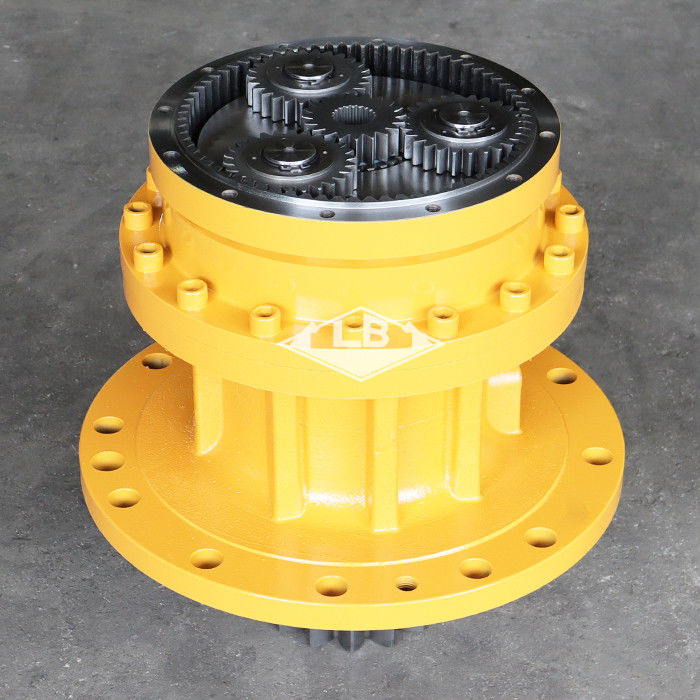

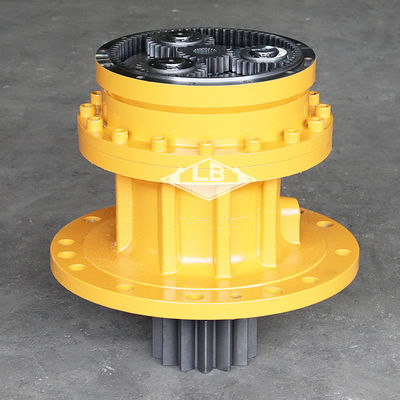

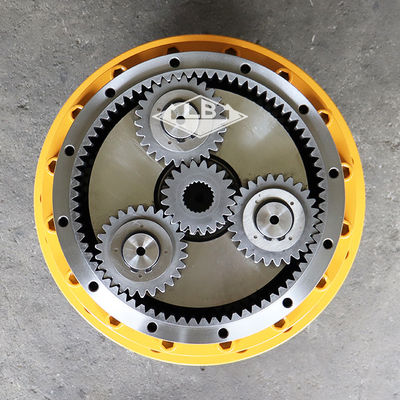

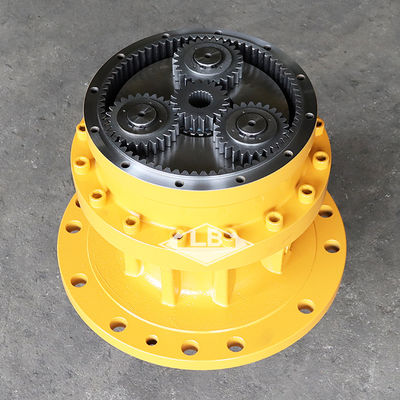

| Pnama seni | E 320D2 Swing gearbox | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 378-9517 | |||||
| NO.1 gigi spline gear matahari | 21 spline | |||||
| Gigi poros swing pinion | 14T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 185 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian untuk excavator 320D2 Anda:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 6V-7238 | [1] | VALVE-SHUT-OFF | |
| 2. | 094-0611 | [6] | PEMANAS(47.3X76X1-MM THK) | |
| 3. | 148-4636 | [1] | SHAFT-PINION | |
| 4. | 148-4640 | [1] | Pengendalian cincin | |
| 5. | 171-9383 | [1] | SPACER | |
| 6. | 199-4561 | [2] | TIPU SEAL-LIP | |
| 7. | 227-6228 | [1] | KAU | |
| 8. | 367-8364 | [1] | Gear-SUN(20-TIH) | |
| 9. | 367-8365 | [3] | Gear-planetary(26-TEETH) | |
| 10. | 367-8367 | [2] | Pengendalian cincin | |
| 11. | 367-8368 | [1] | Gear-SUN(23-TEETH) | |
| 12. | 367-8369 | [3] | Gear-planetary(25-TEETH) | |
| 13. | 378-9513 | [3] | SHAFT | |
| 14. | 378-9514 | [1] | Pembawa-Planetary | |
| 15. | 378-9515 | [1] | GANG-RING(73-TEETH) | |
| 16. | 378-9516 | [1] | Perumahan | |
| 17. | 378-9609 | [1] | CARRIER AS | |
| 18. | 451-2182 | [6] | Hard untuk mencuci(13.5X25.5X3-MM THK) | |
| 19. | 453-3447M | [6] | BOLT(M12X1.75X40-MM) | |
| 20. | 094-0584 | [6] | PEMANAS(40.3X72X1-MM THK) | |
| 21. | 509-6676 | [3] | Pin-SPRING | |
| 22. | 095-1022 | [1] | Berkas-Roller | |
| 23. | 148-4642 | [1] | SEAL-O-RING | |
| 24. | 148-4643 | [1] | Keterangan: | |
| 25. | 296-6268 | [6] | Bantalan AS-roller | |
| 26. | 346-5215 | [3] | AS BEARING | |
| 27. | 3K-0360 | [1] | SEAL-O-RING | |
| 28. | 7I-7623 | [1] | SPACER(52X69.5X6-MM THK) | |
| 29. | 7Y-1434 | [1] | SPACER(40X69.5X6-MM THK) | |
| 30. | 8T-0348M | [16] | Kepala Bolt-Socket(M16X2X50-MM) | |
| 31. | 8T-4240 | [3] | Pengendalian cincin | |
| 32. | 9X-8268 | [16] | PEMANAS(17.5X30X3.5-MM THK) |
