Deskripsi Produk

Parameter produk
Pnama seni

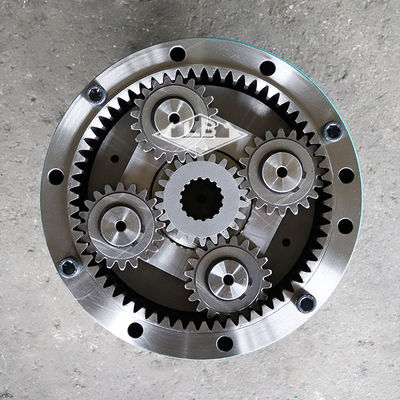

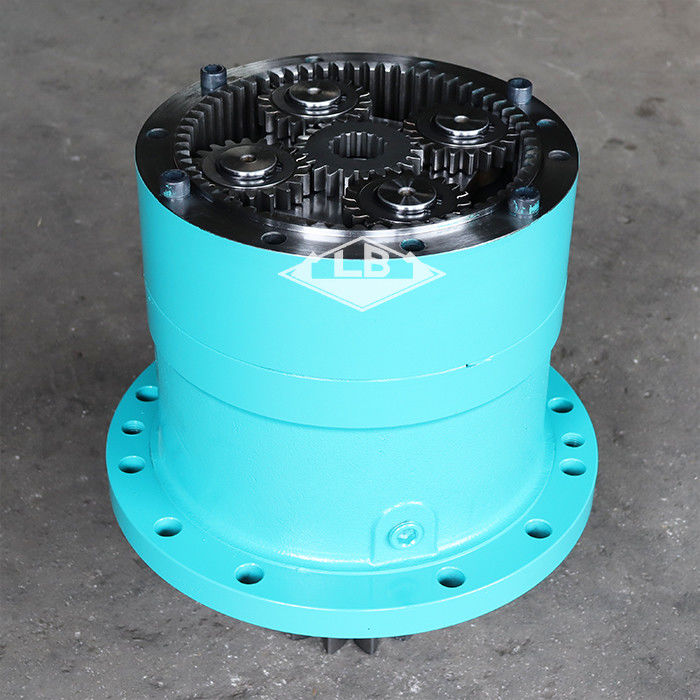

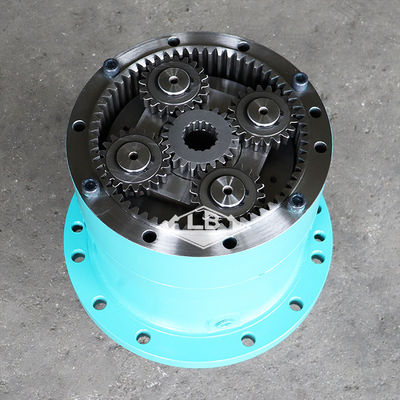

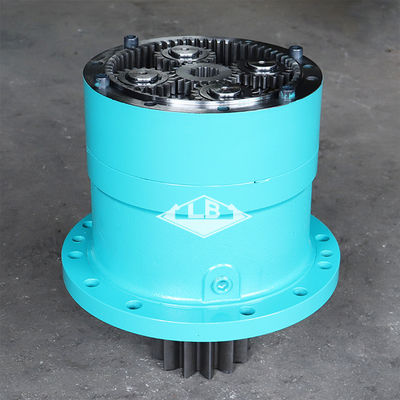

 SK200-3 swing gearbox
Peralatan Mendaftar ke Kobelco EXKAVATOR
Bagian no. 24100J11091F2 24100J11091F3
NO.1 gigi spline gear matahari 16 spline
Gigi poros swing pinion 13T
Kondisi barang Baru
Logo LB
Berat kotor

...
MOQ 1 pcs


Deskripsi produk

SK200-3 PEREDAM SWING 24100J11091F2 24100J11091F3 SK200-3 SWING GEARBOX 0SK200-3 PEREDAM SWING 24100J11091F2 24100J11091F3 SK200-3 SWING GEARBOX 1SK200-3 PEREDAM SWING 24100J11091F2 24100J11091F3 SK200-3 SWING GEARBOX 2SK200-3 PEREDAM SWING 24100J11091F2 24100J11091F3 SK200-3 SWING GEARBOX 3

Bagian pada kelompok (SK200) - MARK III EXKAVATOR SN YN07922 (1/91-12/99):

Posisi. Bagian No. Qty Nama bagian Komentar
. . 24100J11091F2 [1] Motor hidraulik KOBSWING YQ01101, Serial Range: -YQ01458 Digantikan oleh nomor bagian: 24100J11091F10
5. R25P0047D8 [1] Keterangan: KOBRoller
. . 24100J11091F3 [1] Motor ASSY, SWING, Mulai Serial: YQ01458- Motor ASSY, SWING, Mulai Serial: YQ01458-
6. 25Z494D11 [1] Keterangan: KOB
9. 2410T340 [4] ROLLER SHAFT KOB
10. 2401N468 [1] RING GEAR KOB
11. 2401P1276 [1] PENGANTAR SUN KOB
12. 2401P1277 [4] PINION KOB
13. 2401P1279 [4] KIT KOBRY Diganti oleh nomor bagian: 24001T71F2
15. ZS23C08030 [12] Sekrup, kepala Hex Socket, M8 x 30mm KOBM08x1.25x30mm Digantikan oleh nomor bagian: ZS28C08030
18. 2418P20198D3 [2] SPACER KOB(4.0)
19. 2401P1278 [1] PENGANTAR SUN KOBDigantikan dengan nomor bagian: 2401P1434
20. ZR16X04500 [1] RING KOBPengendalian -- ID 45 x OD 58 x Th 1,8 mm
23. 2425T383 [76] Kunci colokan Kunci colokan
24. 2425T384 [140] PENGUNJUNG PENGUNJUNG KOB
25. ZR16X08500 [1] cincin penguncian KOB
26. ZS83C20020 [2] PELUANG KOBSet -- M20x2.50x20mm
28. 2420T6698D3 [1] tabung kaku KOB
29. ZG31U12000 [1] Lempung KOB90°
30. ZE82T12000 [1] PLUG KOB3/4 " PT
33. ZS23C14140 [10] Sekrup, Kepala Soket Hex, M14 x 140mm KOBM14x2.0x140mm
34. ZR16X04000 [4] RING KOBPengendalian -- ID 37 x OD 40 x Th 1,8 mm
37. 2410N519 [1] Jari pantat. KOB
38. 2418P22798 [1] Sleeve, kisaran seri: YN06501--YN06503
39. ZD11P09500 [1] O-RING KOBID 94,6 ± 0,81 x OD 105mm
40. 2418R259 [1] OIL SEAL KOB
. . 2418P23538 [1] Selang KOB, Mulai Serial: YQ01101-
41. 2418R2D60 [1] SNAP RING KOBSNAP
43. 2418T20987 [1] PELAT KOB
42. 2418T20985 [1] PLATE YN06501-, Serial Range: -YN06503
44. 2418T20986 [1] PELAT KOB
45. 2418P22799 [1] Pengendali KOB
42. 2418T21667 [1] PELAT KOB, Mulai Serial: YQ01101-
46. 2418T20988 [1] SPACER KOB(4.0)
47. 2414J2298 [1] Perumahan KOB
48. 2418T20989 [1] SPACER KOB
49. 2413J381 [1] DIFF. Spider KOB
50. ZP26D08025 [4] PIN KOBRoll -- OD 08 x 25mm Panjang
51. 2418T20963 [8] PENGURUS TEKAN KOBDigantikan oleh nomor bagian: 2418T25314
52. 2413N462F1 [1] Spider KOB
53. 2418T20962 [4] PENGURUS TEKAN KOB
54. 2418T19775D3 [4] PENGURUS TEKAN KOB
55-1. 2436U1431F2 [1] Klep, Kontrol Klep, Kontrol
55. 2441U819F1 [1] Motor Swing, kisaran seri: YQ01101-YQ01458 Motor Swing, kisaran seri: YQ01101-YQ01458
55-2. 2441U804F1 [1] Motor hidraulik KOB
55-3. 2436U1283F1 [1] Relay Tekanan Katup KOB
55-4. 2420T4473D1 [6] PELUANG KOBBOLT
55-5. ZD12G03500 [2] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOBID 34,40 ± 0,33 x OD 40mm
56. 2441U819F2 [1] Motor hidraulik KOBMOTOR, SWING, Start Serial: YQ01458- Digantikan oleh nomor bagian: 2441U819F3
56-2. 2441U804F1 [1] Motor hidraulik KOB
56-3. 2436U1283F1 [1] Relay Tekanan Katup KOB
56-6. 2436U1431F4 [1] Klep Kontrol KOBVALVE, CONTROL Digantikan oleh nomor bagian: 2436U1431F6
. . 24100J13639F1 [1] Motor hidraulik KOBKonsensus REF 5,6,9 sampai 13,15,18, 19 TO 23,26,30,33,34,37 TO 54 Digantikan oleh nomor bagian: 24100J13639F4
. . 24025T2F1 [19] KIT SERVICE CONSISTS OF REF NO 23 (Selengkapnya)
. . 24025T2F2 [35] KIT pelayanan KOBKIT SERVICE CONSISTS OF REF NO 24 (Selengkapnya)
60. 2418T23087 [1] SPACER
61. 2418T5028 [1] Lembar COVER Lembar COVER
